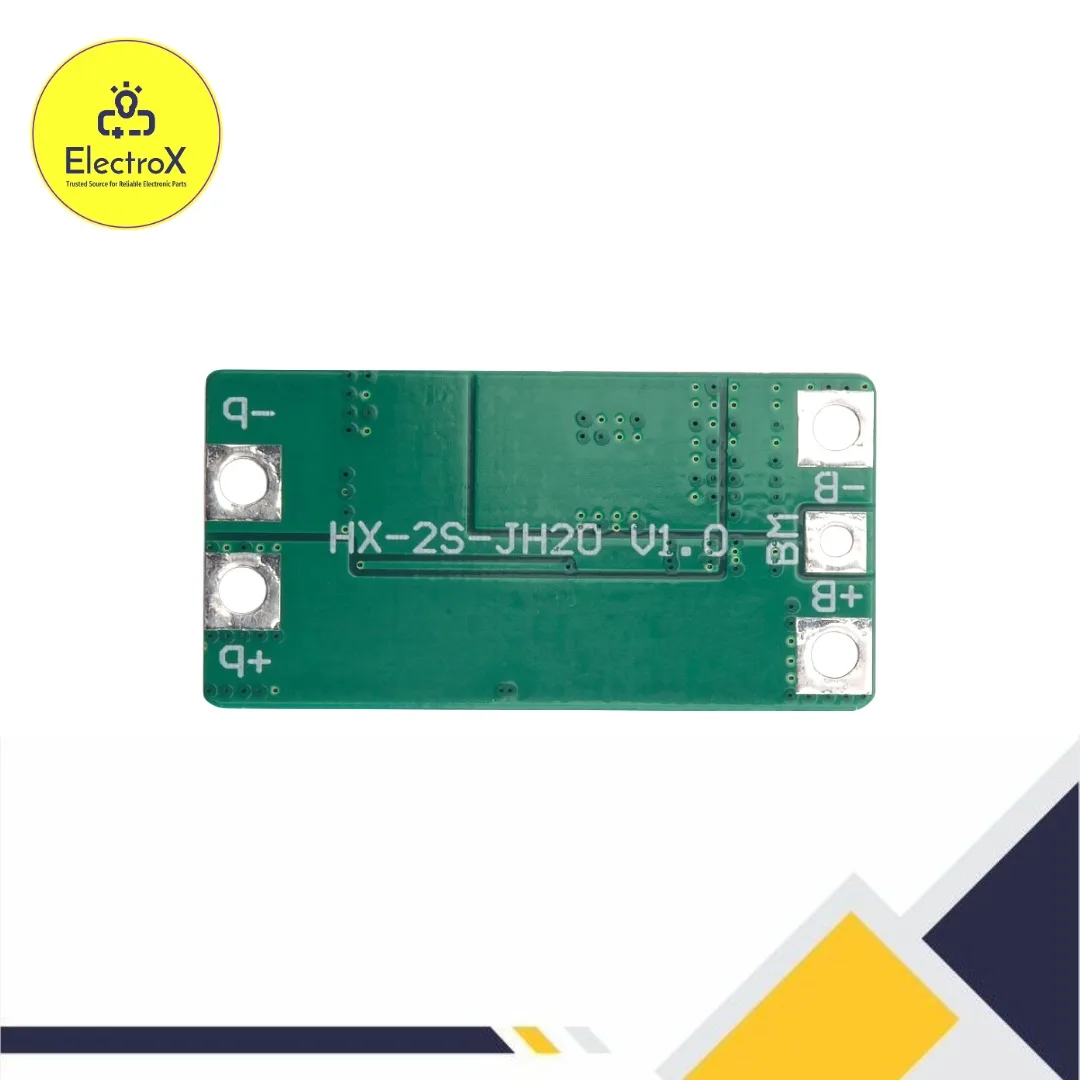

LiFePO4 2S 10A Balanced BMS Battery Charging Protection Module for 6.4V Lithium Iron Phosphate Packs

The LiFePO4 2S 10A Balanced BMS Battery Charging Protection Module is an essential power management component for lithium iron phosphate (LiFePO4) battery packs. It ensures safe charging, discharging, and balancing for 2-cell (6.4V) battery configurations. This module is perfect for DIY energy storage systems, solar power banks, portable devices, and e-bike battery packs requiring stability and protection.

Built with advanced MOSFET control circuitry, this BMS (Battery Management System) protects batteries from common electrical faults such as overcharge, over-discharge, overcurrent, and short-circuits. It helps extend the life of LiFePO4 cells by maintaining balanced voltage levels between cells, preventing uneven wear and enhancing performance.

Key Features of LiFePO4 2S 10A Balanced BMS

1. Supports 2-Cell LiFePO4 Configuration (2S):
   Compatible with 6.4V nominal (2S) lithium iron phosphate battery packs.

2. Built-in Balancing Function:
   Automatically balances voltage between cells during charging to ensure optimal performance.

3. Overcharge Protection:
   Prevents battery voltage from exceeding the safe limit (3.65V per cell).

4. Over-Discharge Protection:
   Protects cells from damage due to low voltage (below 2.0V per cell).

5. Overcurrent and Short-Circuit Protection:
   Automatically disconnects output when excessive current or short-circuit occurs.

6. 10A Continuous Current Handling:
   Suitable for medium-power projects like solar lighting, robotics, and power banks.

7. Compact and Lightweight Design:
   Easy to integrate into small or custom-built battery enclosures.

8. High Efficiency and Low Heat:
   Advanced circuitry minimizes power loss and heat generation.

Technical Specifications

• Battery Type: LiFePO4 (Lithium Iron Phosphate)

• Configuration: 2S (2 cells in series, 6.4V nominal)

• Charging Voltage: 7.3V–7.6V

• Overcharge Detection Voltage: 3.65V ± 0.05V per cell

• Over-Discharge Detection Voltage: 2.0V ± 0.05V per cell

• Continuous Current: 10A

• Instantaneous Current: 20A (peak)

• Balancing Current: 40–60mA

• Operating Temperature: -20°C to +60°C

• Size: 50mm × 20mm × 3mm

• Weight: Approx. 6g

Working Principle of LiFePO4 2S BMS

The LiFePO4 2S 10A BMS module operates by monitoring the voltage and current of each individual cell in a 2S pack.

• When the charging voltage exceeds 3.65V per cell, it cuts off charging to prevent overcharging.

• When the discharge voltage drops below 2.0V per cell, it stops the load to prevent deep discharge.

• During charging, it balances the cells by diverting current from higher-voltage cells until all reach an equal voltage level.

This ensures each cell remains healthy and evenly charged, maintaining long-term battery efficiency and lifespan.

Applications of LiFePO4 2S 10A Balanced BMS

1. Solar Power Storage:
   Ideal for small solar systems and off-grid applications.

2. DIY Power Banks:
   Keeps 6.4V custom LiFePO4 power banks safe and efficient.

3. Robotics and IoT Devices:
   Powers low-voltage robots and IoT hardware with stable protection.

4. LED Lighting Projects:
   Ensures long battery life for rechargeable lighting setups.

5. E-bikes and Scooters:
   Protects LiFePO4 packs in lightweight transportation systems.

6. Home Automation:
   Powers sensors, control boards, and automation modules safely.

Advantages of Using LiFePO4 BMS

• Enhanced Battery Safety: Protects from overcurrent and short circuits.

• Longer Battery Life: Maintains optimal voltage balance between cells.

• Stable Operation: Ensures consistent output and voltage stability.

• High Efficiency: Reduces energy loss during charge/discharge cycles.

• Maintenance-Free: Fully automatic protection and balancing.

Installation and Connection Guide

Pin Connections:

• B+ → Connect to the positive terminal of the battery pack.

• B- → Connect to the negative terminal of the battery pack.

• BM → Connect between cell 1 and cell 2.

• P+ / P- → Connect to load and charger terminals.

Steps:

1. Connect cells in series to form a 2S configuration.

2. Attach balance and power wires to corresponding BMS terminals.

3. Ensure connections are firm and insulated to prevent short circuits.

4. Test voltage levels before use to confirm correct wiring.

⚠️ Important: This BMS is designed only for LiFePO4 cells (not for Li-ion or LiPo batteries).
