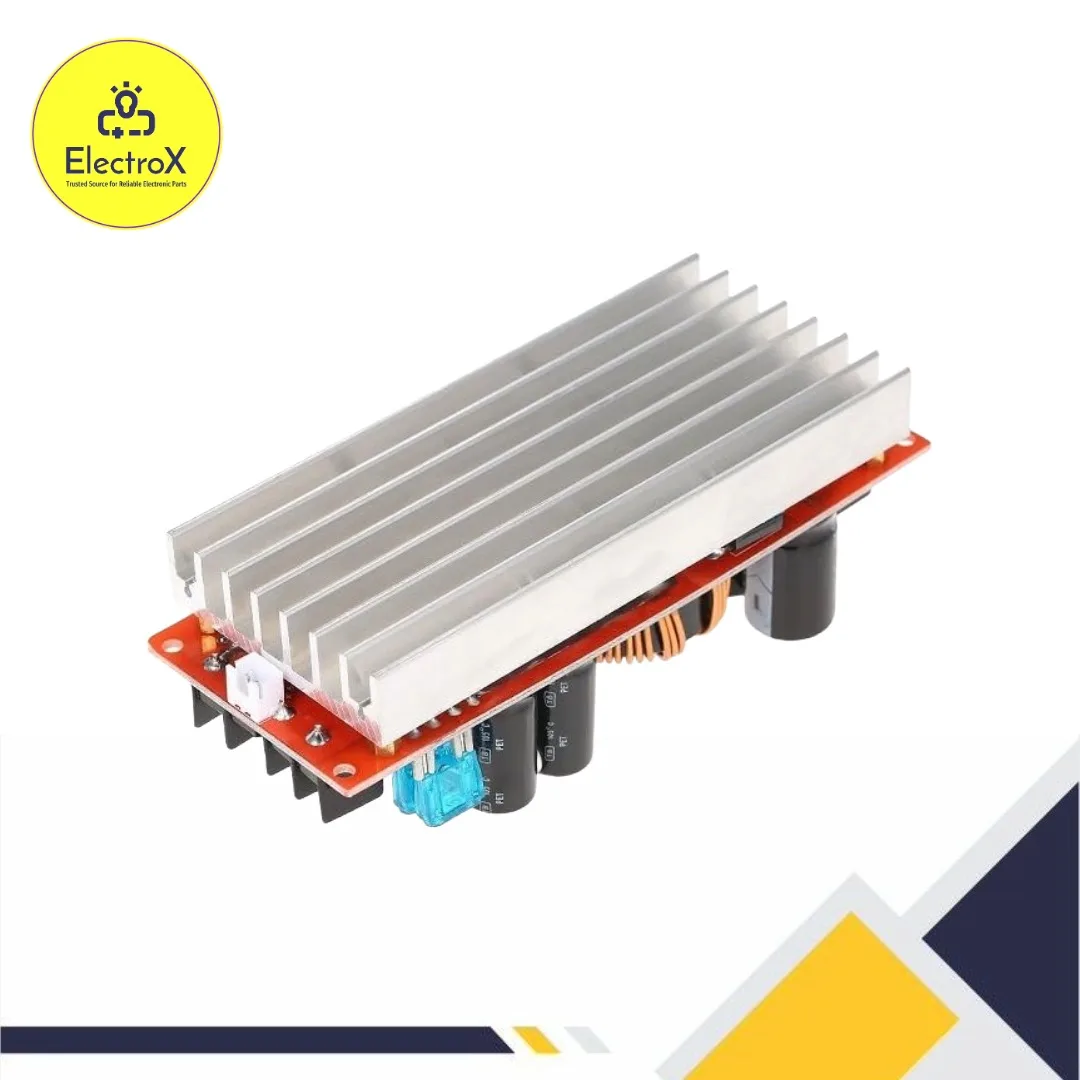

1200W 20A Boost Converter Power Supply Module

The 1200W 20A Boost Converter Power Supply Module is a high-efficiency DC-DC step-up converter designed to increase input voltage to a higher level while maintaining excellent current stability. Built with robust MOSFET transistors, a large heatsink, and an advanced control circuit, this module can handle heavy loads, making it ideal for solar systems, battery charging, power amplifiers, LED drivers, and DIY electronics.

It supports wide input (8V–60V) and adjustable output (12V–83V) voltage ranges, giving users full control over power conversion needs. Whether you’re powering a high-current motor or stabilizing output voltage for testing equipment, this module ensures reliability, power, and precision.

Available now at Electroxbd, Rajshahi — the trusted destination for electronic modules and power supply solutions in Bangladesh.

⚡ Key Features of 1200W 20A Boost Converter Power Supply Module

• High Power Output: Supports up to 1200W maximum power and 20A output current.

• Wide Input & Output Range: Adjustable from 8V–60V input to 12V–83V output.

• High Efficiency: Conversion efficiency up to 97% for minimal heat loss.

• Heavy-Duty Heatsink: Dual heatsinks with powerful cooling design for long-term use.

• Stable Output Voltage: Excellent load regulation and ripple suppression.

• Short Circuit Protection: Built-in safety features for overload and temperature control.

• Easy to Adjust: Potentiometer-based fine voltage tuning.

• Durable Design: Industrial-grade components for long-lasting performance.

The module is ideal for Arduino, solar power systems, and portable electronic devices that require a reliable high-current boost converter.

🧠 Working Principle

The 1200W 20A Boost Converter operates using the DC-DC step-up principle. It uses inductors, MOSFETs, and diodes to store and release electrical energy, effectively raising the input voltage to a higher, adjustable output level.

When the MOSFET switches rapidly on and off, it causes the inductor to build up magnetic energy and release it to the output capacitor, boosting the voltage level. The control circuitry continuously adjusts the duty cycle to maintain stable output even under varying load conditions.

This results in efficient and precise power conversion, making the module suitable for energy-intensive systems like motors, LED arrays, and power amplifiers.

⚙️ Technical Specifications

• Input Voltage: 8V–60V DC

• Output Voltage: 12V–83V DC (Adjustable via potentiometer)

• Maximum Output Current: 20A

• Continuous Current: 10–15A (with cooling)

• Maximum Power: 1200W (with sufficient heat dissipation)

• Efficiency: Up to 97%

• Switching Frequency: 150kHz

• Protection Features: Short circuit, overcurrent, and thermal protection

• Cooling System: Dual large aluminum heatsinks

• Dimensions: 130mm × 52mm × 48mm

🧩 Applications

1. DIY Power Supplies: Build adjustable DC power sources for projects.

2. Solar Energy Systems: Step-up solar panel voltage for battery charging.

3. Electric Vehicles: Boost battery voltage for motor control systems.

4. LED Lighting: Power high-voltage LED arrays efficiently.

5. Audio Amplifiers: Provide stable high-voltage input for amplifiers.

6. RC Hobby Projects: Ideal for drones, cars, and robotics requiring extra power.

7. Battery Charging Stations: Charge batteries with adjustable voltage precision.

This module provides versatility and performance suitable for both industrial and DIY applications.

💻 How to Use the Boost Converter

1. Connection Setup:

   • Input: 8V–60V DC from a battery or adapter

   • Output: Adjustable (12V–83V DC)

   • Connect load to output terminals

2. Adjust Output Voltage:
   Use the onboard potentiometer to fine-tune the desired output.

3. Heat Management:
   For long-term use at high power, ensure adequate cooling or external fans.

4. Precautions:
   Do not reverse polarity or exceed voltage/current limits.

With proper setup, this module delivers highly efficient, stable, and noise-free power output for your project needs.

🧾 Advantages

• Highly efficient DC-DC voltage boost conversion

• Wide compatibility with Arduino and industrial systems

• Easy to integrate with adjustable voltage control

• Compact, durable, and reliable construction

• Perfect for both learning and professional use

It’s a must-have for engineers, DIY enthusiasts, and electronics professionals seeking consistent high-power performance.

🏪 Why Buy from Electroxbd

• 100% original, tested, and quality-checked modules

• Affordable pricing for students and makers

• Nationwide delivery anywhere in Bangladesh

• Expert support for Arduino and power electronics projects

• Trusted company — “Trusted Source for Reliable Electronic Parts.”

Electroxbd ensures every module performs as promised, offering superior service and fast delivery.

📍 Our Office Address:

Electroxbd
H#1/1, Opposite of RH Chhatrabash, Madrasa More,
Debisingpara, Boalia, Rajshahi, Bangladesh.

✅ Conclusion

The 1200W 20A Boost Converter Power Supply Module is the perfect high-power solution for stepping up DC voltage efficiently and reliably. With its wide input/output range, high conversion efficiency, and strong build quality, it’s ideal for use in solar systems, robotics, battery charging, and industrial automation.

Whether you’re an electronics hobbyist or professional engineer, this module delivers dependable performance at an excellent value.

Buy your 1200W 20A Boost Converter Module today from Electroxbd, Rajshahi — your trusted source for reliable electronic parts across Bangladesh.

Common Questions:

Q: What is the price of 1200W 20A Boost Converter Power Supply Module in Bangladesh?

A: The latest price of 1200W 20A Boost Converter Power Supply Module in Bangladesh is 1500 BDT.

Q: Where to buy 1200W 20A Boost Converter Power Supply Module in Bangladesh?

A: You can buy the 1200W 20A Boost Converter Power Supply Module at the best price from ElectroXBD in Bangladesh.
