AD8232 ECG Sensor Module – Heart Rate Monitor for Arduino

The AD8232 ECG Sensor Module is a highly sensitive, low-noise analog front-end designed to measure and record electrical signals generated by the human heart. This compact module is ideal for ECG (Electrocardiogram) and heart rate monitoring applications. It amplifies, filters, and outputs the ECG waveform that can be visualized and analyzed using an Arduino, Raspberry Pi, or other microcontroller platforms.

The AD8232 chip, developed by Analog Devices, provides an optimal signal pathway for detecting heart activity even in noisy environments. This makes it ideal for biomedical projects, wearable devices, fitness systems, and DIY health monitoring projects.

Available now at Electroxbd, Rajshahi, this sensor helps students, researchers, and hobbyists explore human physiological signals easily and affordably.

⚡ Key Features of AD8232 ECG Sensor Module

• High Signal Quality: Produces clean ECG signals with minimal noise.

• Low Power Consumption: Suitable for portable and wearable systems.

• Single Supply Operation: Works with 3.3V or 5V systems for easy Arduino integration.

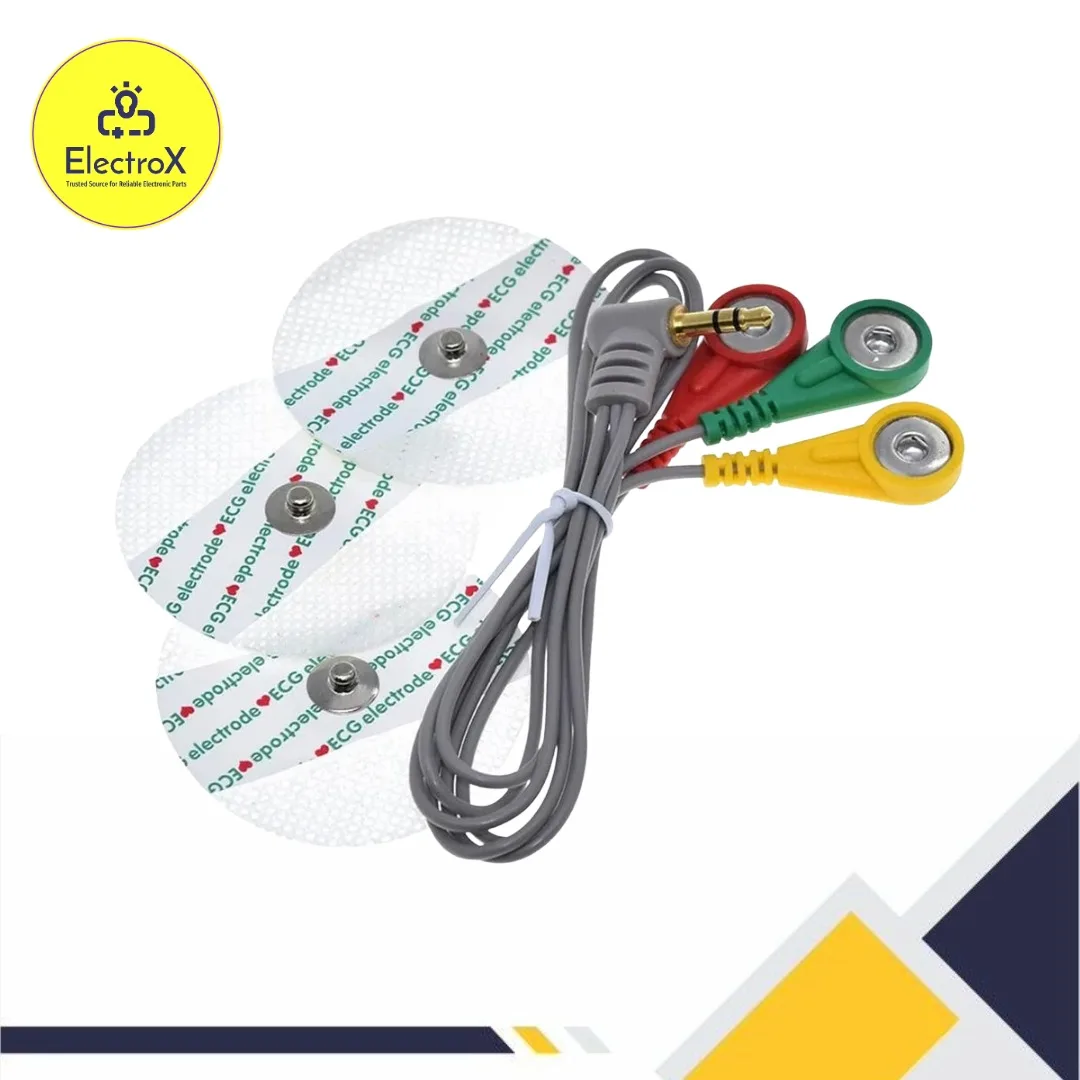

• Ready-to-Use Design: Comes with pre-attached electrodes and leads for instant measurement.

• Analog Output: Compatible with analog input pins of Arduino or any ADC.

• Onboard LED Indicator: Shows real-time heart activity visually.

• Compact PCB Size: Fits easily in compact health monitoring projects.

The AD8232 module ensures stable readings with less interference, making it one of the most reliable ECG modules available in the market.

🧠 Working Principle of AD8232 ECG Sensor

The AD8232 module works as an analog signal amplifier and filter for ECG signals. When electrodes are attached to the human body (typically chest, left arm, and right arm), the electrical activity of the heart is picked up as microvolt-level signals. The AD8232 chip amplifies these weak signals and filters out noise and motion artifacts using built-in high-pass and low-pass filters.

The processed analog ECG waveform is then sent to the Arduino analog pin, where it can be visualized using the Serial Plotter or processed to calculate the heart rate (BPM). Developers can also log this data for further biomedical analysis or IoT cloud integration.

⚙️ Technical Specifications

• Operating Voltage: 3.3V–5V DC

• Input Type: Electrode leads via 3.5mm connector

• Output Type: Analog ECG waveform

• Chipset: AD8232 (Analog Devices)

• Filter Bandwidth: 0.5Hz–40Hz (adjustable)

• Power Consumption: <1mA typical

• Interface Pins: GND, 3.3V/5V, OUTPUT, LO+, LO-, SDN

• Dimensions: 35mm × 22mm

• Electrode Connection: 3-lead ECG cable

• Compatibility: Arduino, ESP8266, ESP32, STM32, Raspberry Pi, and other microcontrollers

🧩 Applications of AD8232 ECG Sensor Module

1. Health and Biomedical Monitoring Systems: For detecting heart rate and ECG waveform in real time.

2. Wearable Devices: Ideal for fitness and health tracking gadgets.

3. Medical Research Projects: Used in labs and universities for ECG signal analysis.

4. IoT Health Applications: Monitor heart data remotely through WiFi or Bluetooth.

5. Educational Projects: Great for students learning bio-signal acquisition.

6. Rehabilitation and Sports Science: Used for tracking cardiovascular activity during physical training.

The AD8232 ECG Sensor bridges the gap between electronics and biomedical applications, providing a simple and cost-effective way to explore the science of the human heart.

💻 How to Use AD8232 ECG Sensor with Arduino

1. Connect the Module:

   • GND → GND (Arduino)

   • 3.3V → 3.3V or 5V

   • OUTPUT → A0 (Analog input)

   • LO+ / LO- → Optional for lead-off detection

2. Attach the Electrodes:
   Place the three electrodes as follows —

   • Right Arm (RA)

   • Left Arm (LA)

   • Right Leg (RL) (as reference/ground)

3. Upload the Code:
   Use open-source ECG plotting code or the AD8232 example sketch to visualize data on the Serial Plotter.

4. Observe the ECG Waveform:
   You can see the P, QRS, and T waves on-screen, representing each heartbeat cycle.

This setup allows anyone — from a student to a biomedical researcher — to build a functioning ECG monitor at a fraction of the cost of commercial systems.

🏪 Why Buy AD8232 ECG Sensor Module from Electroxbd

• 100% original and tested modules.

• Affordable prices for educational and research purposes.

• Fast and secure delivery all over Bangladesh.

• Technical support for Arduino and IoT users.

• Based in Rajshahi, with reliable customer service and online ordering via electroxbd.com.

Electroxbd is your trusted source for reliable electronic parts, ensuring every module is carefully tested before shipping.

📍 Our Office Address:

Electroxbd
H#1/1, Opposite of RH Chhatrabash, Madrasa More,
Debisingpara, Boalia, Rajshahi, Bangladesh.

✅ Conclusion

The AD8232 ECG Sensor Module – Heart Rate Monitor is a powerful and affordable solution for measuring heart signals and creating biomedical projects. With its precise analog output, low noise, and easy Arduino compatibility, it’s perfect for students, engineers, IoT developers, and health enthusiasts.

If you’re planning to build a real-time heart rate monitor, fitness tracker, or a DIY ECG analyzer, this sensor provides all the functionality you need.

Order your AD8232 ECG Sensor Module today from Electroxbd — your trusted source for reliable electronic parts in Bangladesh.
