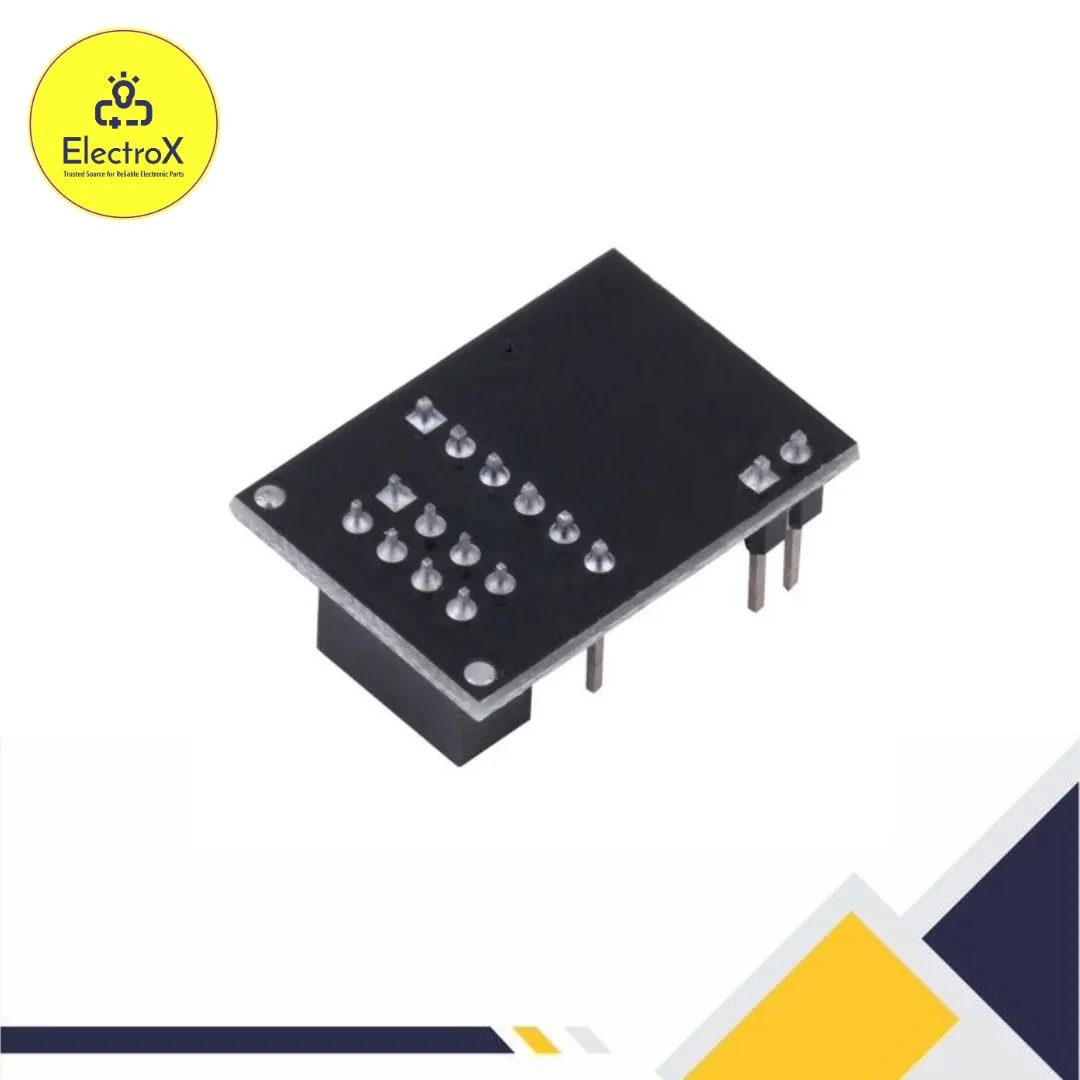

Adapter Board for NRF24L01 Transceiver Module

The Adapter Board for NRF24L01 Transceiver Module is designed to solve one of the most common issues in wireless communication projects—unstable power supply. The NRF24L01 module operates at 3.3V, but many microcontrollers (like Arduino UNO or Mega) provide 5V, which can cause communication errors or even damage the module.

This adapter board provides a stable 3.3V regulated power supply using the AMS1117-3.3V regulator and includes capacitors for voltage filtering. It ensures your NRF24L01 module runs reliably even during high transmission bursts, making it essential for IoT, robotics, and wireless communication projects.

Available exclusively at Electroxbd, Rajshahi — your Trusted Source for Reliable Electronic Parts across Bangladesh.

⚡ Features of Adapter Board for NRF24L01

• Stable 3.3V Output: Prevents voltage fluctuations that can damage the NRF24L01.

• Onboard Voltage Regulator: Equipped with AMS1117-3.3V for reliable regulation.

• Built-in Capacitors: Provides noise filtering and power stability.

• Plug-and-Play Design: Easily connects your NRF24L01 module to Arduino or ESP boards.

• Compact PCB Layout: Saves space in embedded and IoT designs.

• Standard Pin Header: Matches NRF24L01 pinout directly for easy installation.

• LED Power Indicator: Confirms active power supply.

• Compatible with Multiple Boards: Works with Arduino, ESP8266, ESP32, STM32, and more.

🧠 Working Principle

The Adapter Board acts as both a power regulator and signal interface for the NRF24L01 module.
When connected to a 5V microcontroller, the board’s AMS1117-3.3V regulator steps down the voltage to a safe 3.3V level.

It also includes decoupling capacitors that smooth voltage spikes during transmission bursts. The female header connects the NRF24L01’s SPI pins directly to your microcontroller’s SPI interface.

This ensures clean, noise-free communication between the NRF24L01 wireless transceiver and your Arduino or ESP device, resulting in stronger, more reliable signal transmission.

⚙️ Technical Specifications

• Operating Voltage (Input): 5V DC

• Output Voltage: 3.3V DC regulated

• Voltage Regulator: AMS1117-3.3

• Capacitor Value: 10µF and 4.7µF (typical)

• Power LED: Yes

• Pin Interface: 8-pin female header (compatible with NRF24L01)

• Dimensions: Approx. 26mm x 20mm

• Operating Temperature: -20°C to +85°C

• PCB Material: FR-4 high-quality board

• Mounting: Plug-in header interface

🧩 Applications

1. Wireless Communication Projects – Build long-range data transmission systems.

2. IoT Devices – Use for reliable sensor-to-controller communication.

3. Robotics – Enable robots to communicate wirelessly.

4. Home Automation – Control devices remotely using NRF24L01.

5. Industrial Monitoring Systems – Send data between modules safely.

6. DIY Arduino Projects – Perfect for beginners and hobbyists experimenting with RF modules.

The Adapter Board ensures stable power delivery, a key factor for consistent performance in all the above use cases.

💻 How to Connect with Arduino

1. Plug the NRF24L01 module into the adapter board’s female header.

2. Connect the VCC pin of the adapter to 5V on Arduino.

3. Connect GND to GND.

4. Use SPI pins (MISO, MOSI, SCK, CSN, CE) as per Arduino’s SPI configuration.

5. Upload your Arduino RF24 library code to begin wireless communication.

This easy setup ensures your wireless projects run stably without interference or signal loss.

🧾 Advantages

• Protects NRF24L01 from overvoltage damage

• Improves signal stability and transmission range

• Reduces data loss caused by power noise

• Compact and lightweight design

• Cost-effective and essential for all NRF24L01 users

🏪 Why Buy an Adapter Board for NRF24L01 from Electroxbd

• 100% tested adapter boards for stable NRF24L01 operation

• Affordable pricing for students and developers

• Fast delivery across Bangladesh

• Expert support for Arduino and wireless modules

• Based in Rajshahi, your trusted electronics source

At Electroxbd, we ensure you get original and reliable parts for your DIY and professional projects.

📍 Our Office Address:

Electroxbd
H#1/1, Opposite of RH Chhatrabash, Madrasa More,
Debisingpara, Boalia, Rajshahi, Bangladesh.

✅ Conclusion

The Adapter Board for NRF24L01 Transceiver Module is an essential accessory for anyone using the NRF24L01 in Arduino or IoT projects. It stabilizes power, simplifies wiring, and enhances communication reliability — ensuring your wireless systems run smoothly and efficiently.

Get your NRF24L01 Adapter Board today from Electroxbd, Rajshahi — Trusted Source for Reliable Electronic Parts in Bangladesh.
