BF350 350Ω High Precision Resistive Strain Gauge with Lead Wire – Suitable for Class 0.02 Sensors – Single Unit
৳ 1,500
The BF350 350Ω strain gauge is a high-precision resistive sensor designed for accurate strain measurement in load cells, pressure sensors, and structural monitoring systems. With stable performance and integrated lead wires, it is suitable for Class 0.02 high-accuracy applications.
Origin: Made in China
Key Highlights
– Resistance: 350Ω
– High precision measurement
– Suitable for Class 0.02 sensors

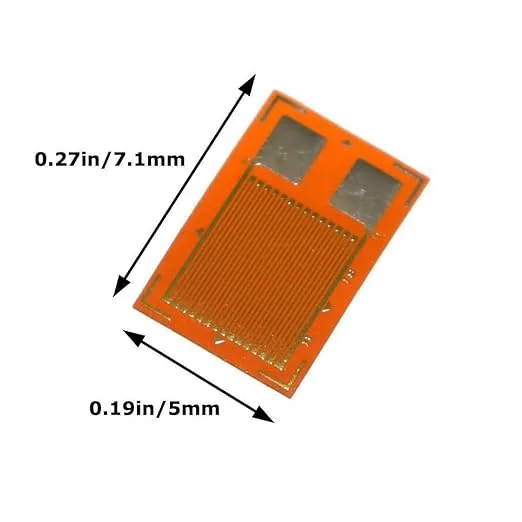

– Compact size: approx. 7.1mm x 5mm
– With lead wire for easy installation
– Stable and reliable performance
Technical Specifications
– Model: BF350
– Resistance: 350Ω
– Type: Resistive Foil Strain Gauge
– Accuracy Class: Suitable for Class 0.02
– Dimensions: ~7.1 mm x 5 mm
– Operating Temperature: -20°C to +80°C
– Lead Wire: Included
– Application: Load cells, pressure sensors, structural testing
Features
– High sensitivity for precise strain detection
– Compact design for small sensor assemblies
– Pre-attached lead wires for easy connection
– Good thermal stability
– Reliable long-term performance
Applications
– Load cell manufacturing
– Weight measurement systems
– Pressure sensors
– Structural stress analysis
– Research and laboratory use
