WEIDE QDA180-R200 Linear Actuator with Reduction Gearbox + 5.5 kW Servo Motor + Pulse Driver
৳ 509,999
Load capacity: 10 tons
Speed: up to 33 mm/s
Stroke length: 150–200 mm

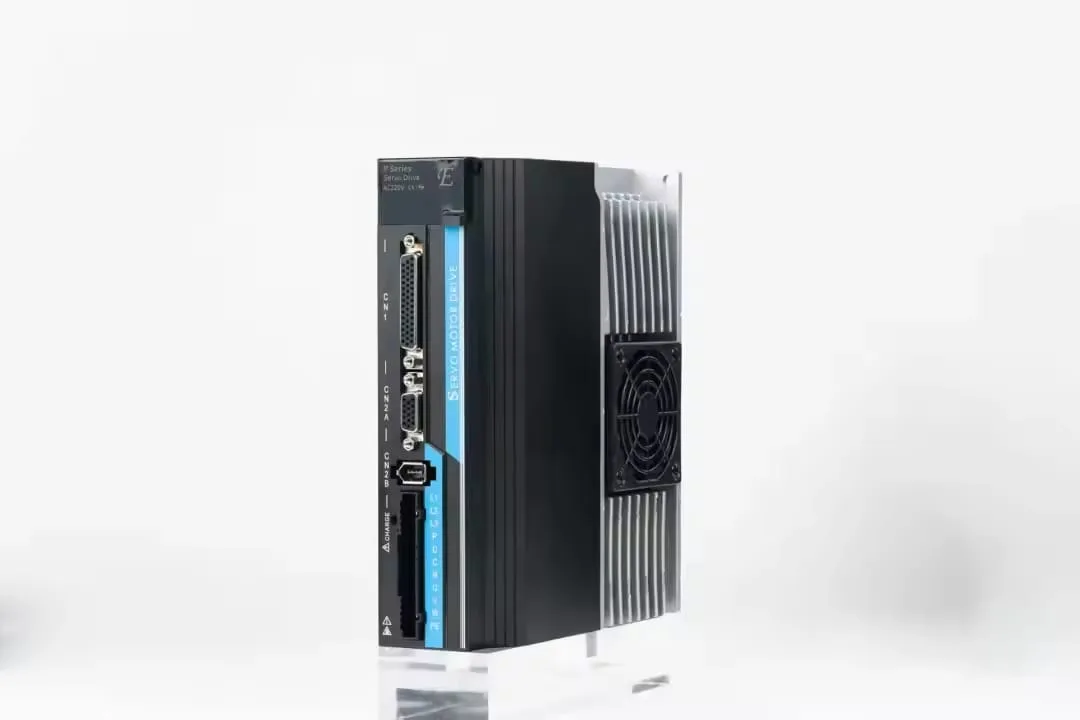

Includes: Reduction gearbox, 5.5 kW servo motor, brake, pulse driver, 3 m cable
Operating Temperature : -20°c to 80°c
Warenty- 2 years (*condition applicable)
Origin: Made in China
Short Description

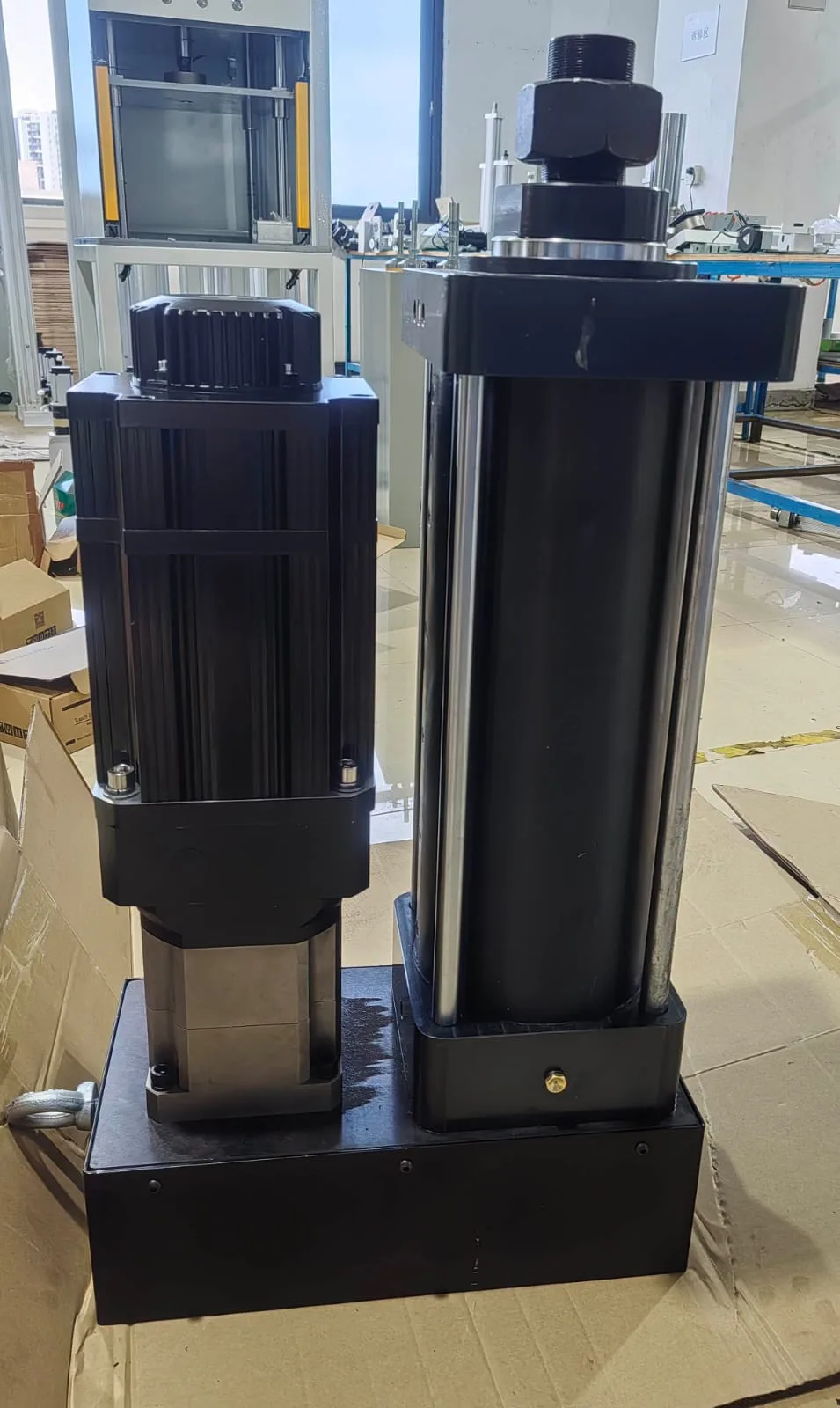

The WEIDE QDA180-R200 Linear Actuator is a high-performance industrial solution designed for heavy-duty applications requiring precise linear motion. Built with a reduction gearbox and a 5.5 kW servo motor with brake, this actuator delivers powerful, stable, and accurate performance.

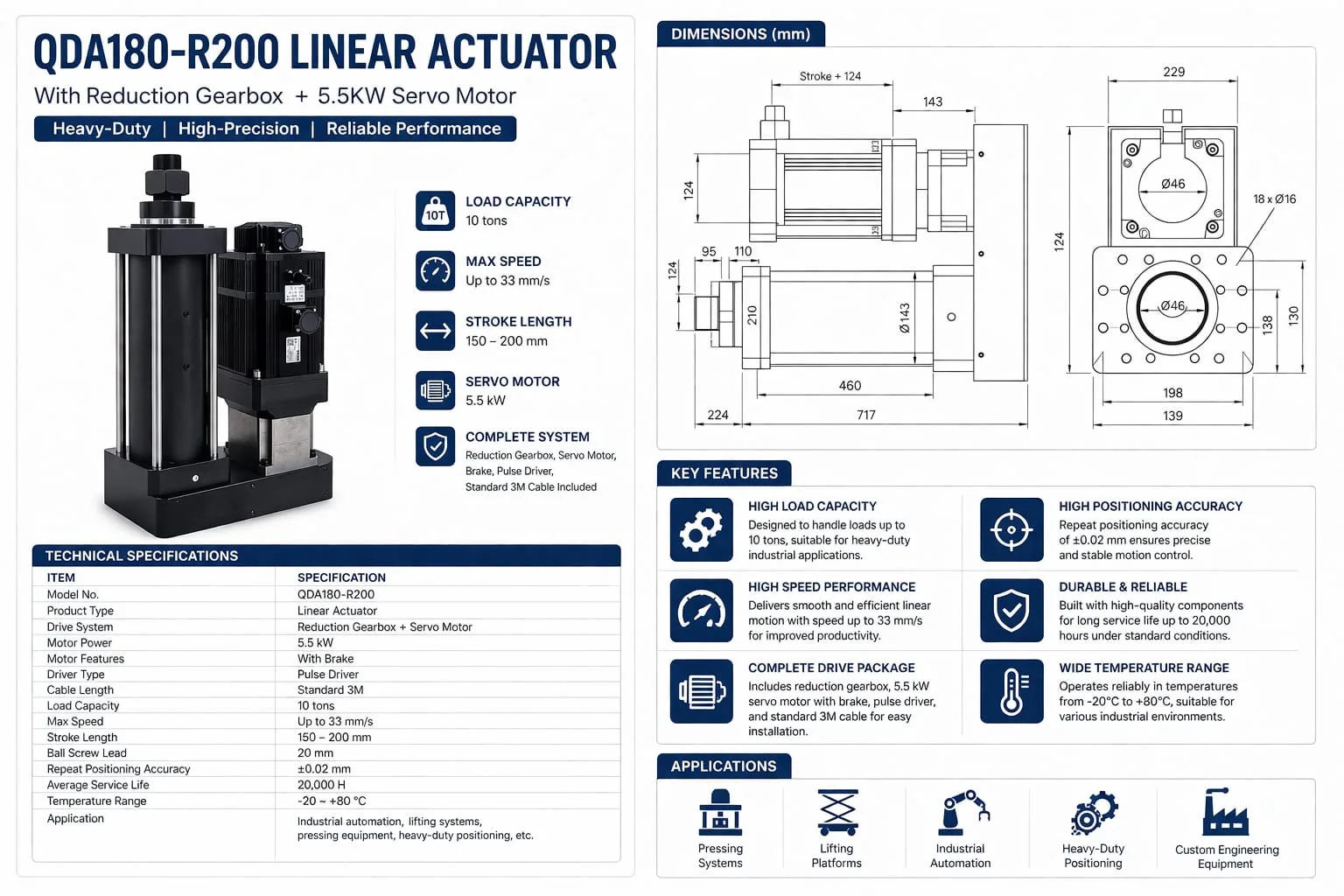

Technical Specifications
– Model: QDA180-R200
– Brand: WEIDE
– Product Type: Linear Actuator
– Motor Power: 5.5 kW
– Load Capacity: 10 tons
– Max Speed: Up to 33 mm/s
– Stroke Length: 150–200 mm
– Ball Screw Lead: (Specify value)
– Repeat Positioning Accuracy: (Specify value)
– Average Service Life: 20,000 hours
– Temperature Range: -20°C to +80°C
– Total package weight: About 300kg
Features Section
– High load capacity for heavy-duty industrial applications
– Servo-driven precision for accurate positioning
– Integrated brake system for safety and stability
– Durable construction for long service life
– Wide operating temperature range
Applications
– Industrial Automation
– Lifting Systems
– Press Machines
– Heavy-Duty Positioning
– Custom Machinery
N.B. : Standard shipping charge is not applicable for this item.
