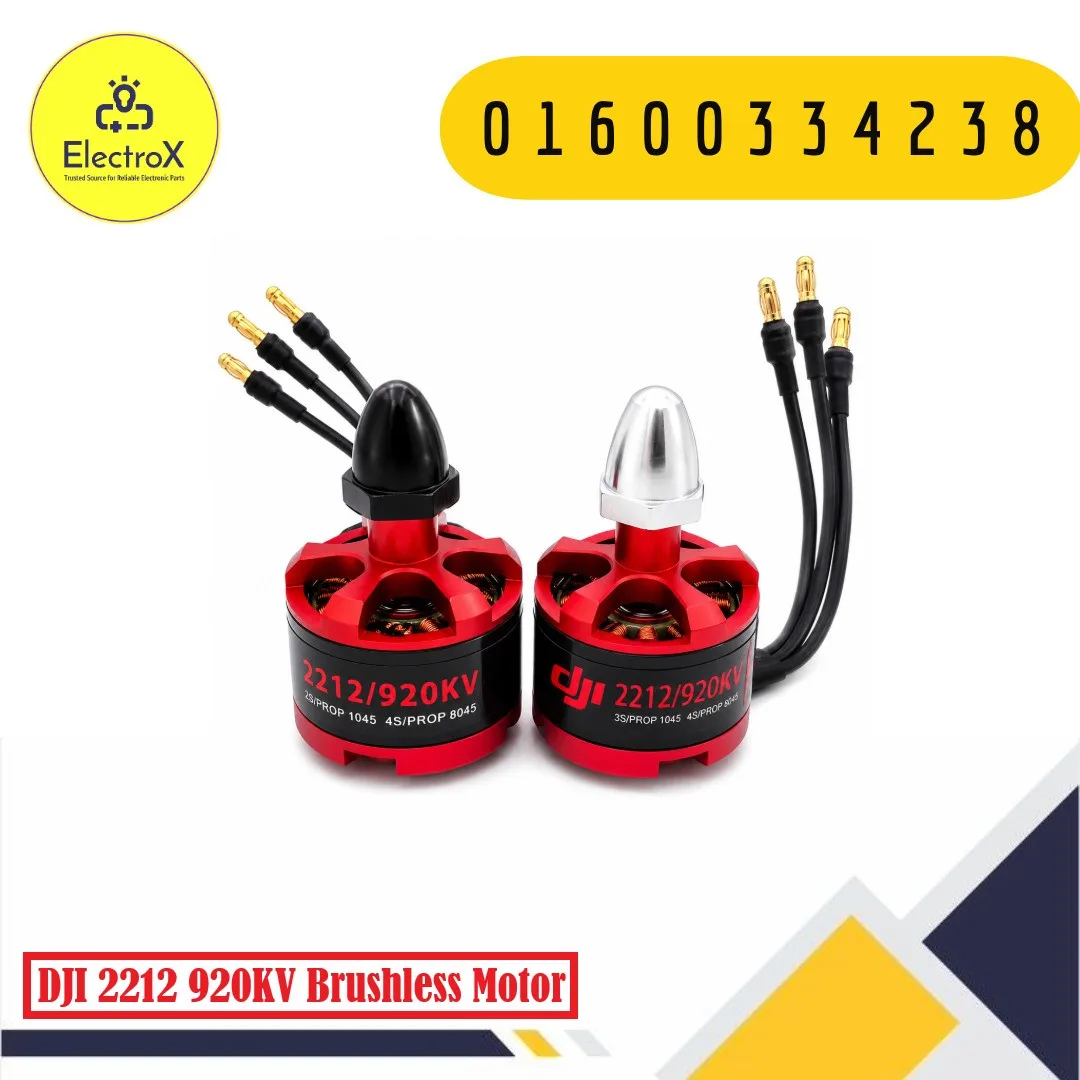

DJI 2212 920KV Brushless Motor CW & CCW Price in Bangladesh

The DJI 2212 920KV Brushless Motor CW & CCW is one of the most widely used brushless motors for DIY quadcopters, FPV drones, aerial photography platforms, and RC aircraft. Known for its excellent balance between efficiency, thrust, and durability, this motor has become a favorite among drone enthusiasts, engineering students, hobbyists, and professional UAV builders. Whether you’re building an F450 quadcopter, F550 hexacopter, or a custom multirotor platform, the DJI 2212 920KV motor provides reliable and smooth flight performance.

This motor features a 920KV rating, meaning it rotates at approximately 920 RPM per volt under no-load conditions. Compared to higher KV motors used in racing drones, the 920KV rating provides greater torque and improved efficiency, making it ideal for larger propellers and stable flight. This makes the motor particularly suitable for aerial photography, mapping drones, surveillance UAVs, agricultural drones, and long-endurance multirotor platforms.

The 2212 stator size delivers an excellent combination of torque and power while maintaining lightweight construction. Built using high-quality copper windings, precision ball bearings, and strong permanent magnets, the motor ensures smooth rotation, reduced vibration, and longer operational life. Its durable aluminum alloy housing provides efficient heat dissipation, allowing the motor to maintain stable performance during extended flights.

This motor set includes both Clockwise (CW) and Counter-Clockwise (CCW) versions. Having both rotation types simplifies drone assembly and ensures balanced torque across all propellers, improving flight stability and reducing unwanted yaw during operation.

The DJI 2212 motor supports 2S to 3S Li-Po batteries and is commonly paired with a 30A Electronic Speed Controller (ESC) for reliable performance. Depending on the battery voltage and propeller selection, the motor can generate up to approximately 1200g of thrust, making it suitable for carrying cameras, GPS modules, FPV systems, and other drone accessories.

One of the major strengths of this motor is its versatility. It is widely used in DIY drones, educational robotics, university UAV competitions, engineering research, STEM education, and commercial drone development. Builders appreciate its predictable performance, easy installation, and compatibility with popular flight controllers such as Pixhawk, APM, DJI Naza, KK2.1.5, Betaflight-compatible controllers, and many others.

The DJI 2212 920KV motor is also compatible with popular drone frames including the DJI F450, F550, X525, and other custom multicopter designs. Its standard mounting pattern allows quick installation, while the precision-balanced rotor minimizes vibration for smoother flight and better image quality when carrying cameras.

Whether you are building your first quadcopter or upgrading an existing UAV, the DJI 2212 920KV Brushless Motor CW & CCW delivers dependable performance, excellent efficiency, and the reliability required for both recreational and professional drone applications.

🔍 What is a Brushless Drone Motor?

A Brushless DC (BLDC) Motor is an electric motor that uses electronic commutation instead of traditional carbon brushes.

Compared to brushed motors, brushless motors provide:

• Higher efficiency
• Greater power output
• Longer operational life
• Lower maintenance
• Reduced heat generation
• Smoother operation
• Better power-to-weight ratio

These advantages make BLDC motors the preferred choice for modern drones and RC aircraft.

✨ Key Features of DJI 2212 920KV Brushless Motor CW & CCW

• High-performance 920KV brushless motor
• Includes CW and CCW motor versions
• Precision-balanced rotor
• Lightweight aluminum alloy housing
• High-quality copper windings
• Precision ball bearings
• Excellent heat dissipation
• High torque output
• Smooth throttle response
• Low vibration design
• Efficient power consumption
• Durable construction
• Easy installation
• Compatible with F450 and F550 frames
• Suitable for aerial photography and FPV drones

⚙️ Technical Specifications

• Product Type: Brushless Outrunner Motor
• Model: DJI 2212
• KV Rating: 920KV
• Motor Size: 28 × 24 mm
• Stator Size: 22 × 12 mm
• Maximum Power: 370W
• Maximum Thrust: Up to 1200g
• Weight: Approximately 53g
• Shaft Diameter: 4mm
• Recommended Battery: 2S–3S Li-Po
• Recommended ESC: 30A
• Recommended Propeller: 10×4.5 or 12×4.5 (depending on battery configuration)
• Rotation: Clockwise (CW) & Counter-Clockwise (CCW)
• Application: Quadcopter, Multirotor, RC Aircraft, UAV

⚡ Working Principle of DJI 2212 920KV Brushless Motor CW & CCW

The DJI 2212 motor operates using an Electronic Speed Controller (ESC) that sequentially energizes the three-phase stator windings. This creates a rotating magnetic field that drives the permanent magnet rotor.

Since there are no physical brushes making contact with the rotor, friction is greatly reduced. The result is smoother operation, higher efficiency, longer service life, and improved reliability compared to brushed motors.

The 920KV rating provides an ideal balance between torque and rotational speed, making the motor suitable for stable aerial flight and efficient power consumption.

🔧 Applications of DJI 2212 920KV Brushless Motor CW & CCW

• F450 Quadcopters
• F550 Hexacopters
• FPV Drones
• Aerial Photography UAVs
• RC Aircraft
• DIY Drone Projects
• Agricultural Drones
• Surveillance UAVs
• Educational Robotics
• Engineering Projects
• Research Laboratories
• STEM Education
• Autonomous UAV Platforms
• Drone Competitions
• Prototype Drone Development

✅ Advantages of DJI 2212 920KV Brushless Motor CW & CCW

• High efficiency
• Excellent thrust-to-weight ratio
• Reliable long-term operation
• Smooth flight performance
• Low vibration
• Easy installation
• Lightweight design
• Efficient cooling
• Durable aluminum construction
• Compatible with popular drone platforms

⚠️ Limitations

• Requires a compatible brushless ESC.
• Not waterproof.
• Performance depends on correct propeller and battery selection.
• Motors should be balanced properly for vibration-free flight.

🛠️ Installation / Usage Tips

• Use a quality 30A ESC for reliable operation.
• Match CW and CCW motors according to the flight controller configuration.
• Secure the motors firmly using the correct mounting screws.
• Balance propellers before flight.
• Inspect bearings and shafts regularly.
• Avoid operating with damaged propellers.
• Keep motors clean from dust and debris.
• Perform motor direction testing before installing propellers.

💡 Why Choose DJI 2212 920KV Brushless Motor CW & CCW

The DJI 2212 920KV Brushless Motor CW & CCW offers an excellent combination of efficiency, durability, and stable flight characteristics. Its optimized 920KV rating, high thrust capability, and compatibility with popular drone frames make it one of the best choices for quadcopters, multirotors, and aerial photography platforms. Whether you are a beginner building your first drone or an experienced UAV developer, this motor delivers dependable performance for a wide range of applications.

🛒 Why Buy from Electroxbd

• 100% Quality Tested Products
• Trusted Source for Reliable Electronic Parts
• Fast Delivery Across Bangladesh
• Competitive Pricing
• Genuine RC and Drone Components
• Dedicated Technical Support
• Ideal for Students, Engineers, Hobbyists, and Drone Builders

❓ Frequently Asked Questions (FAQ)

What is the DJI 2212 920KV Brushless Motor used for?

It is used in quadcopters, multirotor drones, RC aircraft, aerial photography platforms, and DIY UAV projects.

What does 920KV mean in this brushless motor?

The 920KV rating indicates the motor rotates at approximately 920 RPM per volt under no-load conditions, providing excellent torque and efficient flight performance.

Which battery is recommended for the DJI 2212 920KV motor?

The motor is commonly used with 2S to 3S Li-Po batteries and a 30A ESC for optimal performance.

Why does the motor set include both CW and CCW motors?

The CW and CCW motors ensure proper propeller rotation for balanced thrust and stable flight in quadcopters and other multirotor drones.

Where can I buy the DJI 2212 920KV Brushless Motor CW & CCW in Bangladesh?

You can buy the DJI 2212 920KV Brushless Motor CW & CCW from Electroxbd, a trusted electronics components supplier in Bangladesh.

Common Questions:

Q: What is the price of DJI 2212 920KV Brushless Motor CW & CCW in Bangladesh?

A: The latest price of DJI 2212 920KV Brushless Motor CW & CCW in Bangladesh is 1450 BDT.

Q: Where to buy DJI 2212 920KV Brushless Motor CW & CCW in Bangladesh?

A: You can buy the DJI 2212 920KV Brushless Motor CW & CCW at the best price from ElectroXBD in Bangladesh.
