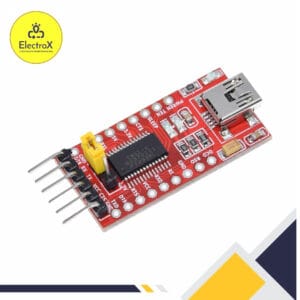

FT232RL FTDI USB to TTL Converter – The Perfect Solution for Serial Communication

The FT232RL FTDI USB to TTL Converter is a versatile and reliable module that simplifies the process of converting USB signals to TTL (Transistor-Transistor Logic) serial communication. This compact yet powerful device is designed for developers, engineers, and hobbyists who require seamless communication between USB-enabled devices and microcontrollers or other TTL-based systems. The FT232RL chip from FTDI (Future Technology Devices International) ensures stable and efficient data transfer, making it a popular choice in a wide range of applications, from embedded systems to DIY electronics projects.

Key Features of the FT232RL FTDI USB to TTL Converter

The FT232RL FTDI USB to TTL Converter comes packed with features that make it an indispensable tool for serial communication tasks. Below are some of the key features of this converter:

1. FT232RL Chip for Reliable Communication

At the heart of this converter is the FT232RL chip from FTDI, a highly reliable and widely-used chip for USB-to-serial communication. The FT232RL chip supports full-duplex UART (Universal Asynchronous Receiver-Transmitter) communication, which allows for bi-directional data transfer between USB and TTL devices. It provides stable and high-speed communication with data transfer rates of up to 3 Mbps, making it suitable for a variety of applications that require fast and efficient data transfer.

2. USB to TTL Signal Conversion

The primary function of this converter is to convert USB signals to TTL serial communication. This is particularly useful when working with microcontrollers, sensors, and other TTL devices that do not have a USB interface. The converter simplifies the process of connecting USB-enabled devices, such as computers, to TTL-based systems, enabling easy data transfer and control. Whether you are programming microcontrollers, uploading code to Arduino boards, or interfacing with sensors, this converter is an essential tool for serial communication.

3. Plug-and-Play Functionality

The FT232RL FTDI USB to TTL Converter offers plug-and-play functionality, making it extremely easy to use. Simply connect the module to your computer via USB, and it will automatically be recognized by most operating systems, including Windows, macOS, and Linux. The converter does not require any complex installation procedures, and FTDI provides drivers that are readily available online for seamless integration with your system. This makes the converter a hassle-free solution for serial communication.

4. Multiple Pinout Options

The converter features a versatile pinout design, including the following important pins:

• TXD (Transmit Data): Used for sending data from the USB device to the TTL device.
• RXD (Receive Data): Used for receiving data from the TTL device to the USB device.
• VCC: Provides power to the connected device (3.3V or 5V options).
• GND: Ground connection.
• DTR (Data Terminal Ready): Allows automatic resetting of microcontrollers like Arduino boards.

The presence of the DTR pin is especially useful when programming microcontrollers, as it enables automatic reset during the uploading process, eliminating the need for manual resets.

5. 3.3V and 5V Operation

One of the standout features of the FT232RL FTDI USB to TTL Converter is its ability to operate at both 3.3V and 5V logic levels. This makes it compatible with a wide range of devices, including microcontrollers, sensors, and development boards that operate at either voltage level. The voltage can be easily selected by adjusting the jumper on the module, giving you the flexibility to use the converter with different systems without worrying about voltage mismatches.

6. Compact and Portable Design

The FT232RL FTDI USB to TTL Converter boasts a compact and lightweight design, making it highly portable and easy to integrate into various projects. Its small form factor allows it to fit comfortably into tight spaces, whether you are working on a breadboard or integrating it into a larger project. This compact design also makes it convenient for field work or for developers who need to carry it around for different projects.

7. Wide Range of Applications

This converter is incredibly versatile and can be used in numerous applications, including:

• Microcontroller Programming: Easily upload code to microcontrollers like Arduino, ESP8266, ESP32, and others via USB.
• Serial Communication Debugging: Ideal for debugging serial communication between devices.
• Interfacing with Sensors and Modules: Enables communication between USB-enabled computers and TTL-based sensors, displays, and modules.
• DIY Electronics Projects: Perfect for hobbyists who want to connect USB devices to embedded systems and microcontrollers.
• Embedded Systems Development: Useful for engineers developing embedded systems that require USB-to-serial communication.

8. Overcurrent and Short-Circuit Protection

Safety is another important aspect of the FT232RL FTDI USB to TTL Converter. It comes equipped with built-in protection features, including overcurrent protection and short-circuit protection. These safety measures prevent damage to both the converter and the connected devices in case of accidental wiring issues or power surges, ensuring reliable and safe operation.

9. High Compatibility with Development Boards

The converter is highly compatible with popular development boards such as Arduino, Raspberry Pi, ESP8266, and ESP32, among others. This makes it an ideal choice for developers who work with a variety of platforms. Whether you are uploading sketches to an Arduino board or debugging serial communication on a Raspberry Pi, the FT232RL FTDI USB to TTL Converter ensures smooth communication between the computer and the development board.

Conclusion

In summary, the FT232RL FTDI USB to TTL Converter is a versatile and reliable module that simplifies the process of USB-to-TTL serial communication. With features like the FT232RL chip, plug-and-play functionality, multiple pinout options, and compatibility with both 3.3V and 5V systems, this converter is a must-have tool for developers, engineers, and hobbyists working with embedded systems, microcontrollers, and DIY electronics projects. Its compact design, wide range of applications, and built-in protection features make it a top choice for anyone in need of fast, efficient, and safe serial communication.

Common Questions:
What is the price of FT232RL FTDI USB to TTL Converter in Bangladesh?
The latest price of FT232RL FTDI USB to TTL Converter in Bangladesh is 250BDT.
Where to buy FT232RL FTDI USB to TTL Converter in Bangladesh?
You can buy the FT232RL FTDI USB to TTL Converter at the best price from ElectroXBD in Bangladesh.
