LDR Light Dependent Resistor 5mm

The LDR (Light Dependent Resistor) 5mm is a widely used electronic component designed for light sensing applications. This small, but highly functional device plays a crucial role in various projects and systems where light detection is essential. The 5mm LDR is compact, versatile, and offers reliable performance for a range of light-sensing needs.

Overview

This is a type of resistor whose resistance varies based on the intensity of light falling on it. As light levels increase, the resistance of the LDR decreases, and as light levels decrease, the resistance increases. This property makes it a valuable component in circuits that require light detection and response. The 5mm sensor is particularly favored for its small size and ease of integration into compact electronic designs.

Key Features

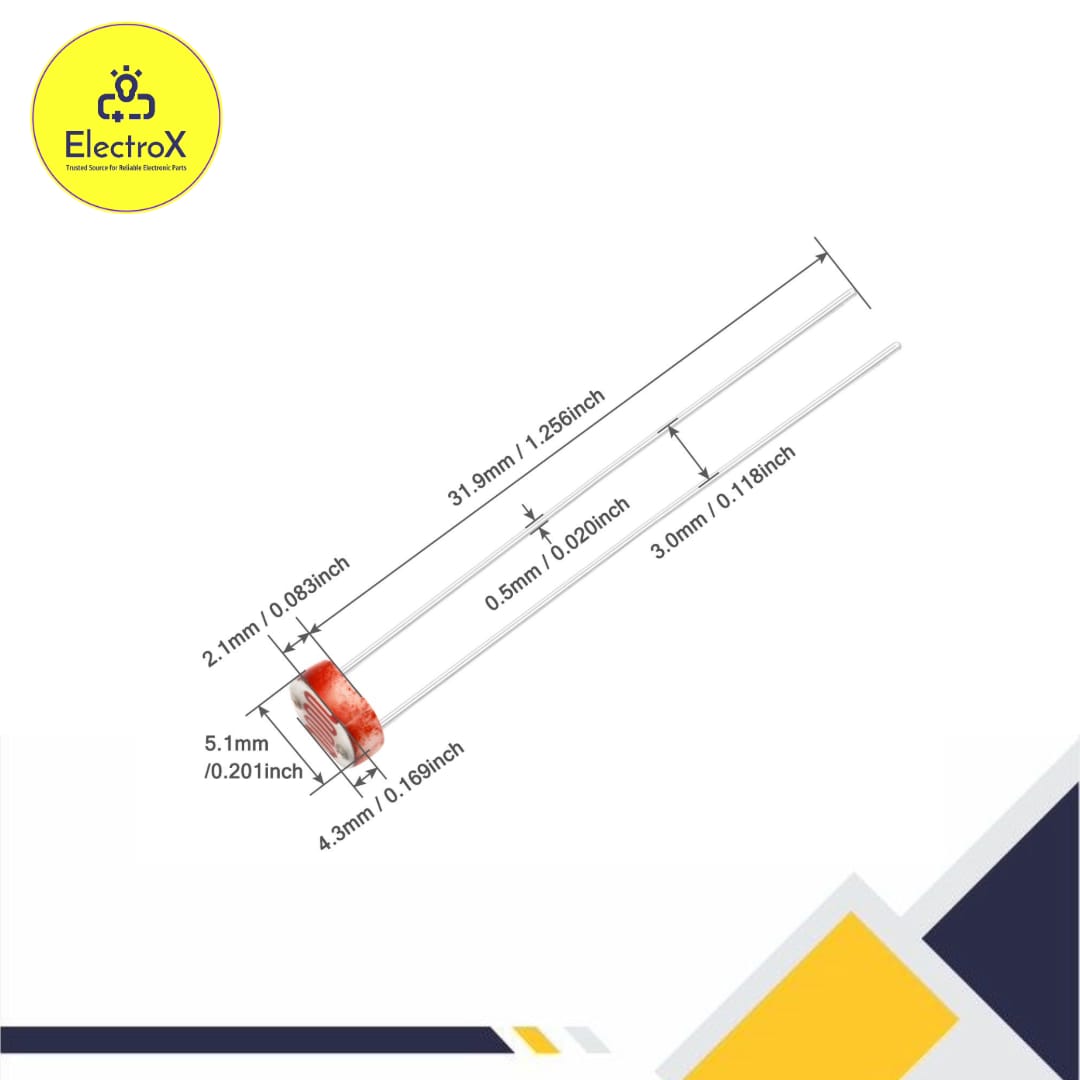

1. Diameter: The 5mm LDR has a diameter of 5mm, making it a compact and convenient option for projects with space constraints. Its small size allows it to be easily incorporated into various electronic circuits without requiring significant space on a PCB or breadboard. This makes it ideal for applications where size and footprint are important considerations.
2. Resistance Range: The resistance of this sensor typically ranges from 10kΩ to 1MΩ, depending on the light intensity. In bright light conditions, the resistance can drop to as low as 10kΩ, while in low light conditions, it can rise to as high as 1MΩ. This wide range of resistance values allows the sensor to be used in a variety of applications where different levels of light sensitivity are required.
3. Light Sensitivity: The sensitivity to light makes it an effective tool for detecting and measuring light intensity. It can respond to changes in light levels, making it suitable for applications such as automatic lighting systems, light meters, and photoelectric sensors. The sensitivity of the LDR can be adjusted by changing the surrounding circuitry to accommodate different lighting conditions.
4. Response Time: The sensor offers a relatively fast response time, typically in the milliseconds to seconds range. This allows it to detect changes in light levels quickly and accurately. The fast response time makes it suitable for applications where real-time light sensing is required, such as in automatic brightness adjustment systems or light-activated alarms.
5. Operating Voltage: The sensor can operate across a range of voltages, typically from 3V to 12V. This flexibility in operating voltage allows it to be used with various power supplies and electronic circuits. The ability to work across different voltage levels makes it a versatile component that can be easily integrated into a wide range of electronic designs.

Applications

The LDR 5mm is used in various applications where light detection and measurement are required:

• Automatic Lighting Systems: The sensor can be used in automatic lighting systems to control the brightness of lights based on ambient light levels. For example, it can turn on lights when it gets dark and turn them off when there is enough natural light.
• Light Meters: In light meters, the LDR measures the intensity of light and provides readings that can be used for photography, horticulture, or other applications where accurate light measurement is important.
• Photoelectric Sensors: The sensor can be used in photoelectric sensors to detect the presence or absence of light. This makes it suitable for applications such as light-activated switches or alarms.
• Solar Tracking Systems: In solar tracking systems, the sensor helps in detecting the position of the sun and adjusting the orientation of solar panels to maximize energy capture.
• Educational Projects: This sensor is commonly used in educational electronics projects to demonstrate the principles of light sensing and resistance. Its simple operation and ease of use make it an ideal component for learning about light-dependent circuits.

Practical Considerations

When using the LDR 5mm in electronic projects, there are a few practical considerations to keep in mind:

• Circuit Design: The LDR is typically used in a voltage divider circuit to measure changes in resistance and convert them into a measurable voltage signal. Proper circuit design is essential for accurate light sensing and measurement.
• Environmental Factors: The performance of the LDR can be affected by environmental factors such as temperature and humidity. It is important to consider these factors when designing circuits that use this sensor.
• Calibration: The LDR may require calibration to ensure accurate light measurements. Calibration involves adjusting the circuit to account for variations in light sensitivity and resistance.

In summary, the LDR 5mm is a versatile and compact component ideal for a range of light sensing applications. Its small size, wide resistance range, and fast response time make it a valuable addition to various electronic projects and systems. Whether used in automatic lighting, light meters, or educational projects, the LDR provides reliable and effective light detection capabilities.

Common Questions:
What is the price of LDR Light Dependent Resistor 5mm in Bangladesh?
The latest price of LDR Light Dependent Resistor 5mm in Bangladesh is 7BDT.
Where to buy LDR Light Dependent Resistor 5mm in Bangladesh?
You can buy the LDR Light Dependent Resistor 5mm at the best price from ElectroXBD in Bangladesh.
