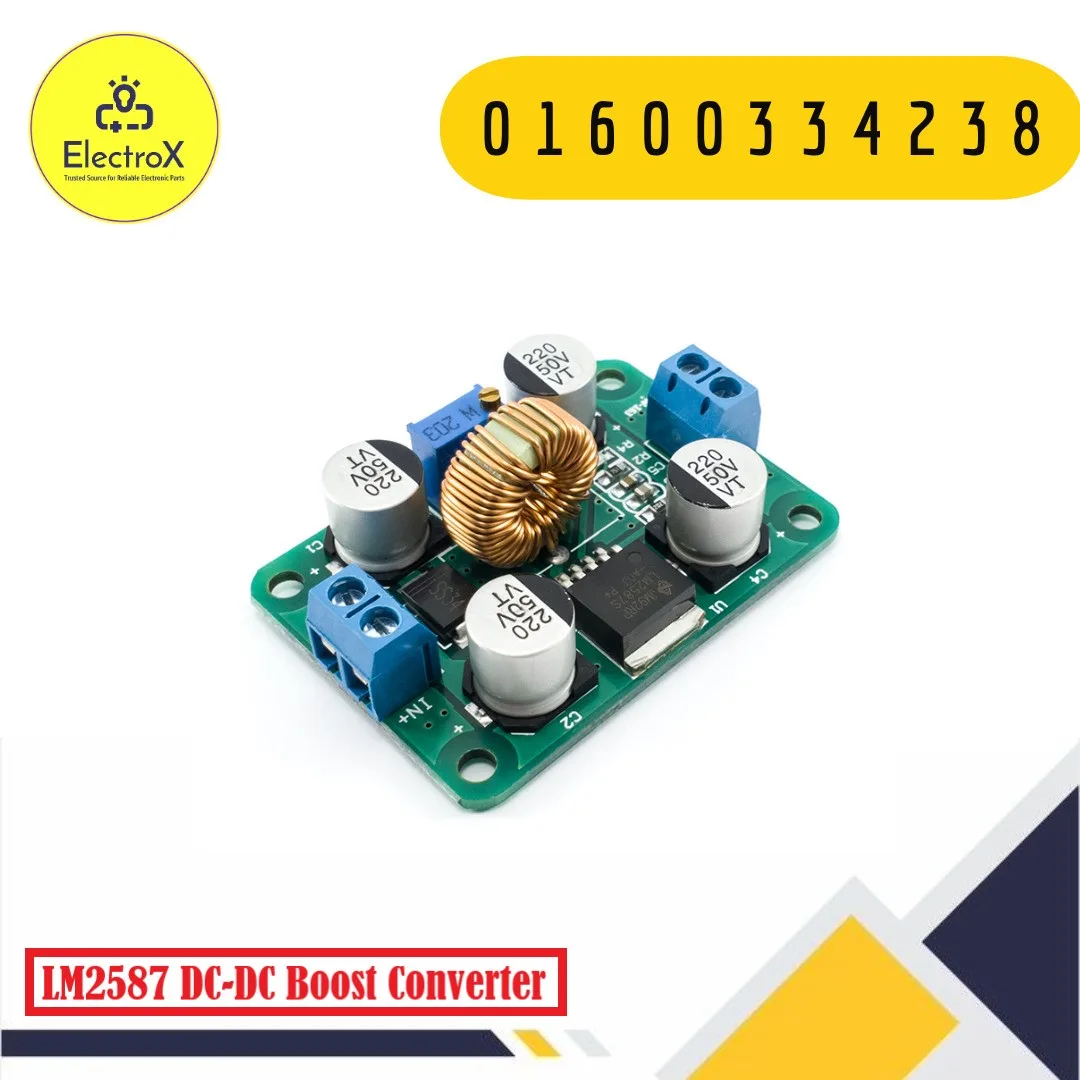

LM2587 Boost Converter DC-DC Step Up Module Price in Bangladesh

The LM2587 Boost Converter DC-DC Step Up Module is a high-performance adjustable voltage regulator designed to increase a lower DC input voltage to a higher and stable output voltage. Built around the reliable LM2587 switching regulator IC, this module offers excellent efficiency, high output power, and dependable voltage regulation, making it an ideal choice for electronics enthusiasts, engineers, students, and DIY makers.

Unlike linear voltage regulators that waste energy as heat, the LM2587 utilizes switch-mode boost conversion technology to efficiently convert low-voltage DC power into higher output voltages. This results in significantly lower power loss and improved battery life, especially in portable and battery-operated devices.

The module accepts an input voltage ranging from 3.5V to 30V and provides an adjustable output voltage from 4V to 30V, allowing it to power a wide variety of electronic circuits. It supports a maximum output current of up to 5A (depending on input/output conditions and cooling) and can deliver up to 80W of output power, making it suitable for medium- to high-power applications.

One of the major advantages of the LM2587 module is its high conversion efficiency, typically reaching 92% to 94%, reducing heat generation while maximizing usable output power. The LM2587 IC also includes several built-in protection features, such as current limiting, thermal shutdown, undervoltage lockout, and soft-start functionality, helping improve system reliability.

This boost converter is widely used in Arduino projects, robotics, LED lighting, battery-powered systems, solar applications, portable power supplies, communication equipment, automotive electronics, and laboratory power systems. It is particularly useful whenever the available input voltage is lower than the required operating voltage.

Whether you need to boost a 5V USB supply to 12V, convert a lithium battery to higher voltages, or build a custom adjustable power supply, the LM2587 Boost Converter Module offers a simple, reliable, and efficient solution.

🔍 What is a DC-DC Boost Converter?

A DC-DC Boost Converter is an electronic power conversion circuit that increases a lower DC voltage to a higher DC voltage.

For example:

• 5V → 12V
• 9V → 24V
• 12V → 24V

Boost converters are widely used in battery-powered electronics, renewable energy systems, industrial equipment, and embedded systems where a higher operating voltage is required.

✨ Key Features of LM2587 Boost Converter DC-DC Step Up Module

• Based on the LM2587 switching regulator IC
• Adjustable output voltage
• High conversion efficiency up to 94%
• Wide input voltage range
• Supports output current up to 5A
• Maximum output power up to 80W
• Built-in thermal protection
• Overcurrent protection
• Soft-start function
• Stable output voltage regulation
• Easy voltage adjustment using onboard potentiometer
• Compact PCB design
• Suitable for continuous operation with proper cooling
• Reliable switching regulator technology

⚙️ Technical Specifications

• Product Type: DC-DC Boost Converter Module
• Controller IC: LM2587
• Converter Type: Step-Up (Boost)
• Input Voltage: 3.5V – 30V
• Output Voltage: 4V – 30V Adjustable
• Maximum Output Current: 5A
• Continuous Output Current: Up to 3A (recommended without additional cooling)
• Maximum Output Power: 80W
• Conversion Efficiency: Up to 92–94%
• Switching Frequency: 100KHz
• Voltage Adjustment: Multi-turn Potentiometer
• Operating Temperature: -40°C to +85°C (module dependent)
• Protection Features:
  • Thermal Shutdown
  • Current Limiting
  • Undervoltage Lockout
  • Soft Start
• Application: DC Voltage Step-Up Power Supply Module

⚡ Working Principle of LM2587 Boost Converter DC-DC Step Up Module

The LM2587 module operates using switch-mode power conversion.

An internal switching transistor rapidly turns ON and OFF at approximately 100kHz, storing energy inside an inductor during the ON period. When the switch turns OFF, the stored magnetic energy is released through a high-speed diode into the output capacitor, increasing the output voltage above the input voltage.

A feedback circuit continuously monitors the output voltage and automatically adjusts the switching duty cycle to maintain a stable output even when the input voltage or load changes.

This switching technique provides significantly higher efficiency than traditional linear regulators while generating much less heat.

🔧 Applications of LM2587 Boost Converter DC-DC Step Up Module

• Arduino projects
• ESP32 and Raspberry Pi power systems
• Robotics
• DIY adjustable power supplies
• LED lighting systems
• Solar energy projects
• Battery-powered devices
• Portable electronics
• CCTV power supplies
• Automotive electronics
• Industrial control systems
• Laboratory experiments
• Wireless communication equipment
• IoT devices
• Electronic repair projects

✅ Advantages of LM2587 Boost Converter

• High conversion efficiency
• Wide input voltage range
• Adjustable output voltage
• High output current capability
• Compact design
• Reliable voltage regulation
• Low heat generation
• Built-in protection circuits
• Easy to use
• Suitable for numerous electronic applications

⚠️ Limitations

• Only boosts voltage; it cannot reduce voltage
• Output current decreases as the output voltage increases
• Additional heatsinking may be required for high-power operation
• Input voltage must always remain lower than the desired output voltage

🛠️ Installation / Usage Tips

• Verify input polarity before connecting power.
• Adjust the output voltage using a multimeter before connecting your load.
• Never exceed the module’s voltage or current ratings.
• Use thicker wires for high-current applications.
• Install a heatsink or cooling fan for continuous high-power operation.
• Ensure adequate ventilation around the module.
• Disconnect power before changing wiring connections.
• Use a stable DC power source for best performance.

💡 Why Choose LM2587 Boost Converter DC-DC Step Up Module

The LM2587 Boost Converter Module is one of the most reliable adjustable voltage booster modules available for electronics projects. Its wide operating voltage range, high efficiency, high power capability, and built-in safety features make it suitable for hobbyists, students, professionals, and industrial users alike.

Whether you’re powering LED strips, boosting battery voltage, designing a portable power supply, or building an embedded electronics project, this module offers dependable performance and excellent value.

🛒 Why Buy from Electroxbd

• 100% Quality Tested Products
• Trusted Source for Reliable Electronic Parts
• Fast Delivery Across Bangladesh
• Competitive Pricing
• Genuine Power Supply Modules
• Dedicated Technical Support
• Ideal for Students, Engineers, and Makers

❓ Frequently Asked Questions (FAQ)

What is the LM2587 Boost Converter DC-DC Step Up Module used for?

It is used to increase a lower DC input voltage to a higher adjustable DC output voltage for powering electronic devices and projects.

What input voltage does the LM2587 Boost Converter support?

It supports an input voltage range of approximately 3.5V to 30V.

What is the maximum output current of this module?

The module supports up to 5A maximum output current, although continuous current depends on cooling and operating conditions.

Can I use this module with Arduino and battery-powered projects?

Yes, it is widely used with Arduino, ESP32, Raspberry Pi, robotics, portable battery systems, LED lighting, and DIY electronics projects.

Where can I buy the LM2587 Boost Converter DC-DC Step Up Module in Bangladesh?

You can buy the LM2587 Boost Converter DC-DC Step Up Module from Electroxbd, a trusted electronics components supplier in Bangladesh.
