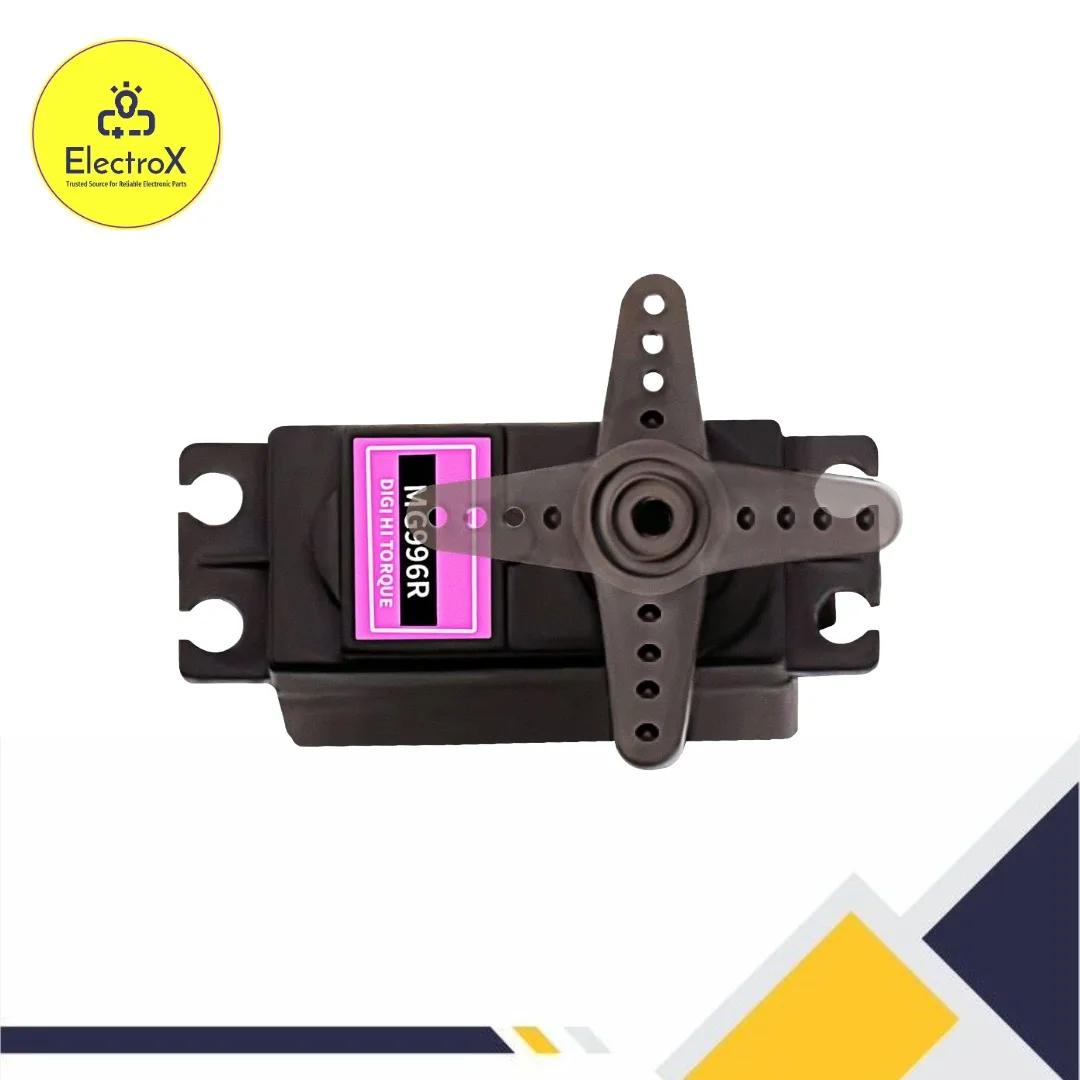

MG996R Metal Gear Servo Motor 180° High Torque for Arduino, Robotics, and RC Projects

The MG996R Metal Gear Servo Motor 180° High Torque is a powerful, durable, and reliable servo motor designed for high-performance applications such as robotics, automation, drones, and RC vehicles. Manufactured with precision metal gears and a strong core motor, it delivers excellent torque and quick response times, making it a favorite among hobbyists and engineers.

The MG996R is an upgraded version of the famous MG995 servo, offering improved accuracy, stability, and noise reduction. It features a dual ball-bearing design for smoother operation and higher mechanical efficiency. This servo motor is ideal for projects requiring strong and stable movement such as robotic arms, pan-tilt camera mounts, and smart vehicles.

Features of MG996R High Torque Metal Gear Servo

1. High Torque Performance:
   Delivers up to 11 kg·cm torque at 6V, suitable for heavy-duty robotic mechanisms.

2. Metal Gear Construction:
   Durable metal gears ensure longer lifespan and precise control without slippage.

3. Wide Voltage Range:
   Operates between 4.8V and 7.2V, compatible with Arduino, Raspberry Pi, and RC controllers.

4. Fast and Accurate Movement:
   Provides quick response and consistent 180° rotation angle with excellent positioning accuracy.

5. Dual Ball Bearing Support:
   Reduces friction and enhances rotational smoothness for stable movement.

6. High-Quality Motor Core:
   Designed for consistent torque output and low power consumption.

7. Universal Compatibility:
   Works seamlessly with servo libraries on Arduino and other microcontrollers.

Technical Specifications of MG996R Servo Motor

• Operating Voltage: 4.8V–7.2V DC

• Stall Torque: 9.4 kg·cm @ 4.8V, 11 kg·cm @ 6V

• Rotation Range: 0°–180°

• Speed: 0.19s/60° @ 4.8V, 0.14s/60° @ 6V

• Gear Type: Metal gears

• Motor Type: DC motor with feedback control

• Dead Band Width: 5µs

• Connector Type: 3-pin (GND, VCC, Signal)

• Cable Length: Approx. 30 cm

• Dimensions: 40.7mm × 19.7mm × 42.9mm

• Weight: 55g

Applications of MG996R Metal Gear Servo

1. Robotic Arms:
   Used for precise and powerful movement control in multi-joint robotic systems.

2. RC Vehicles:
   Controls steering, suspension, and throttle in RC cars and trucks.

3. Drones and Aircraft:
   Provides stable control for flaps, gimbals, and camera mounts.

4. Pan-Tilt Camera Systems:
   Ensures smooth and responsive camera positioning for surveillance or photography.

5. Smart Automation Projects:
   Used in DIY automation systems like door openers, grippers, and mechanical levers.

6. Educational Robotics:
   Perfect for students and hobbyists learning servo control with Arduino and microcontrollers.

Working Principle of MG996R Servo Motor

The MG996R operates using Pulse Width Modulation (PWM) control. The Arduino or microcontroller sends pulses between 1ms to 2ms, which correspond to the servo’s rotation angle. A 1.5ms pulse sets the servo at its center (90°), while 1ms and 2ms pulses rotate it to 0° and 180° respectively.

Internally, the servo contains a DC motor, a gear system, and a feedback potentiometer. The feedback mechanism continuously compares the desired position (from PWM signal) with the current position and adjusts accordingly. This results in precise angular motion and stable performance — even under varying loads.

Benefits of Using MG996R Over Standard Servos

• Higher Torque: Handles heavier loads compared to plastic gear servos.

• Better Durability: Metal gears prevent wear and tear during frequent operation.

• Improved Stability: Maintains accurate position under vibration or heavy load.

• Versatile Application Range: Works with robotics, RC systems, and automation devices.

Why Buy MG996R Servo from Electroxbd

At Electroxbd, we supply high-quality and 100% tested MG996R Metal Gear Servo Motors to ensure top performance for your robotics or automation projects. Each unit is inspected for torque output, angle precision, and electrical reliability before shipment.

Why Choose Electroxbd:

• Genuine MG996R servo motor

• Competitive pricing across Bangladesh

• Nationwide fast delivery

• Expert guidance for Arduino and robotics projects

• Trusted electronics supplier

Office Address:
H#1/1, In Opposite of RH Chhatrabash, Madrasa More, Debisingpara, Boalia, Rajshahi, Bangladesh

Choose Electroxbd – Trusted Source for Reliable Electronic Parts for your next robotics or automation project.

Common Questions:

Q: What is the price of MG996R Metal Gear Servo Motor 180° High Torque in Bangladesh?

A: The latest price of MG996R Metal Gear Servo Motor 180° High Torque in Bangladesh is 400 BDT.

Q: Where to buy MG996R Metal Gear Servo Motor 180° High Torque in Bangladesh?

A: You can buy the MG996R Metal Gear Servo Motor 180° High Torque at the best price from ElectroXBD in Bangladesh.
