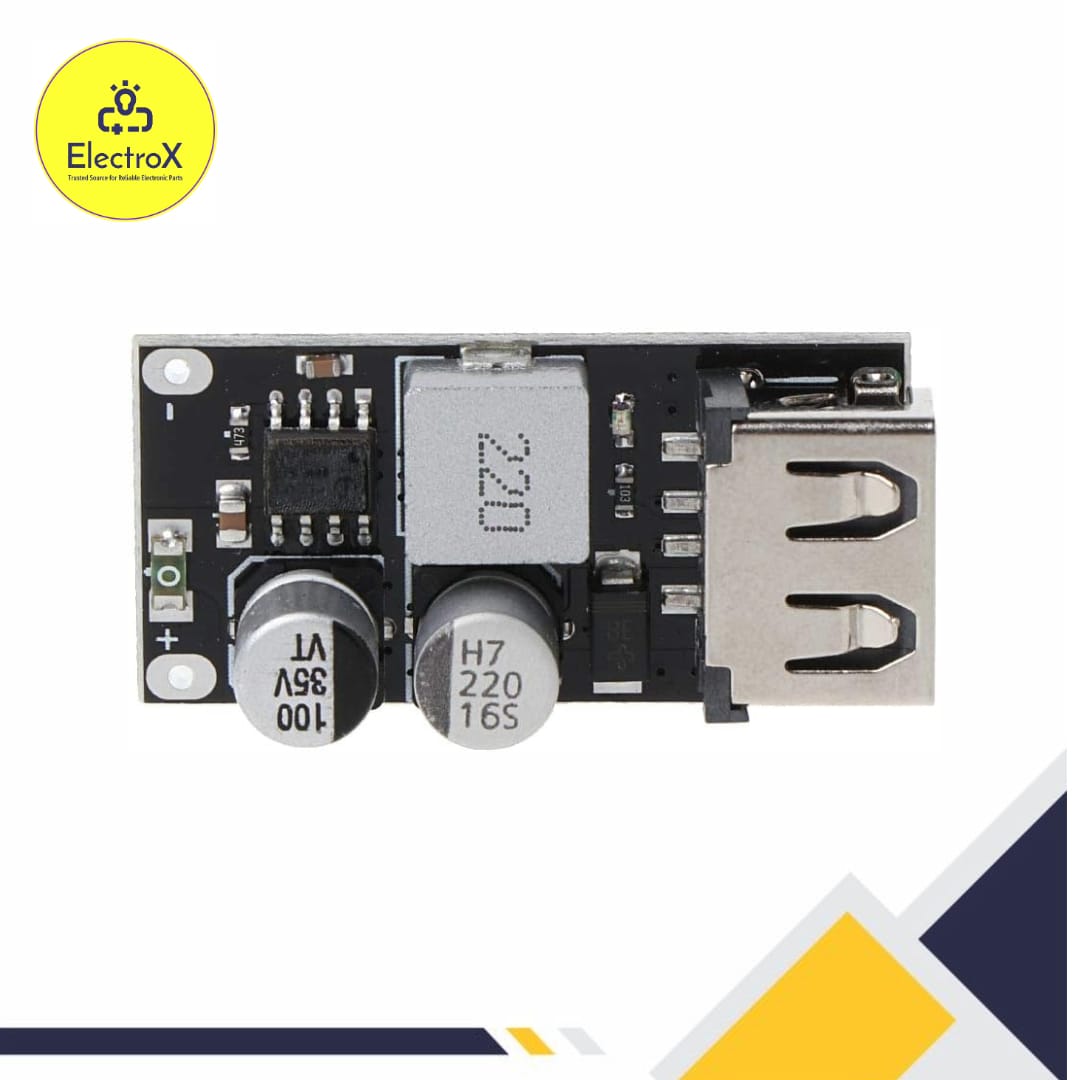

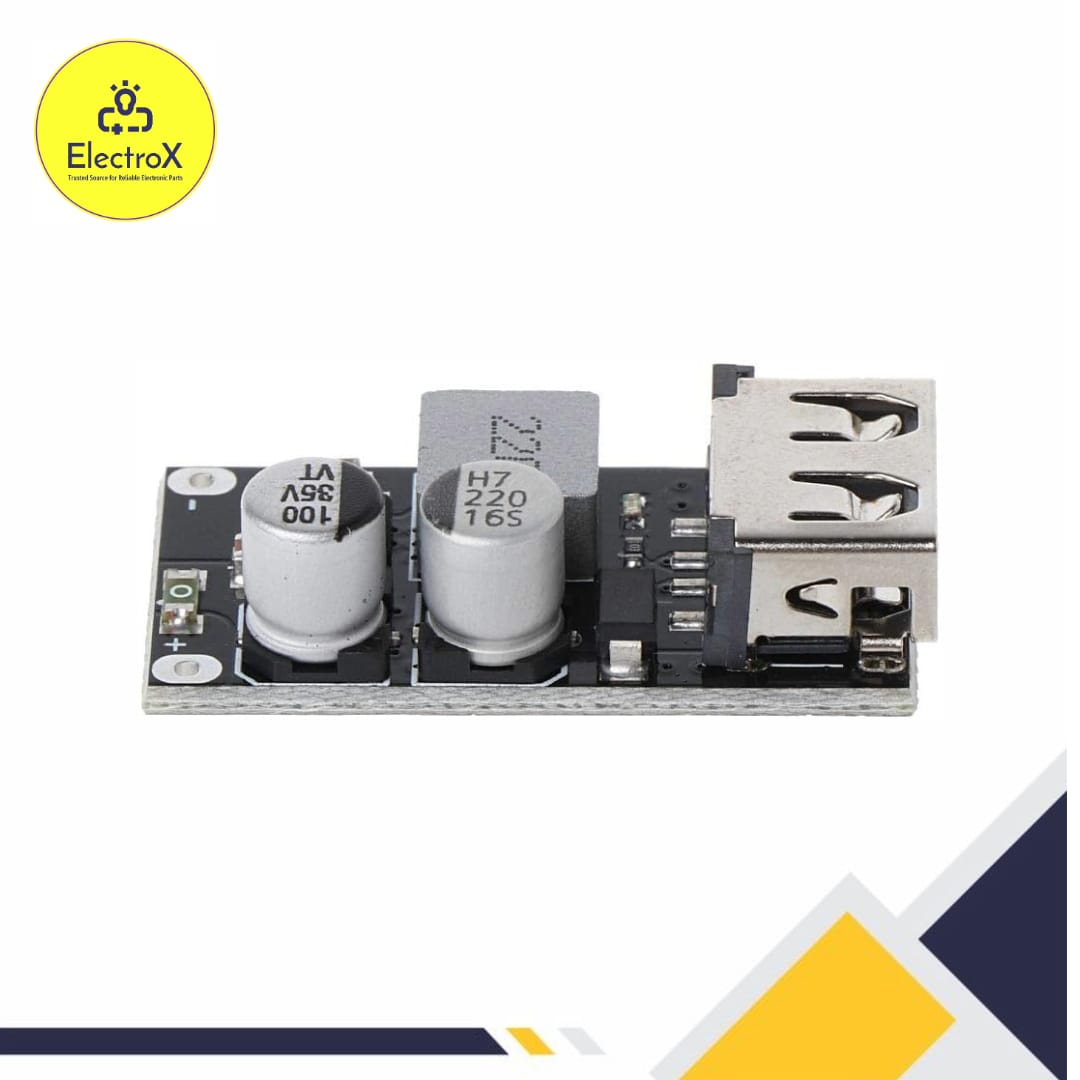

QC3.0 Fast Charging Module

QC3.0 Fast Charging Module Overview

The QC3.0 Fast Charging Module is a high-efficiency, versatile power conversion unit designed to meet the fast-charging requirements of modern electronic devices. Leveraging the Quick Charge 3.0 technology, this module allows for rapid charging of compatible devices, significantly reducing the time needed to achieve a full charge. It’s an ideal solution for DIY electronics enthusiasts, engineers, and developers who need a reliable and efficient power source for their projects.

Key Features

One of the standout features of the QC3.0 Fast Charging Module is its adjustable output voltage, which ranges from 3.6V to 12V DC. This flexibility makes it suitable for a wide range of devices, from smartphones and tablets to more demanding gadgets that require higher voltages. The module can deliver a maximum output current of 3A, ensuring that even power-hungry devices can be charged quickly and efficiently.

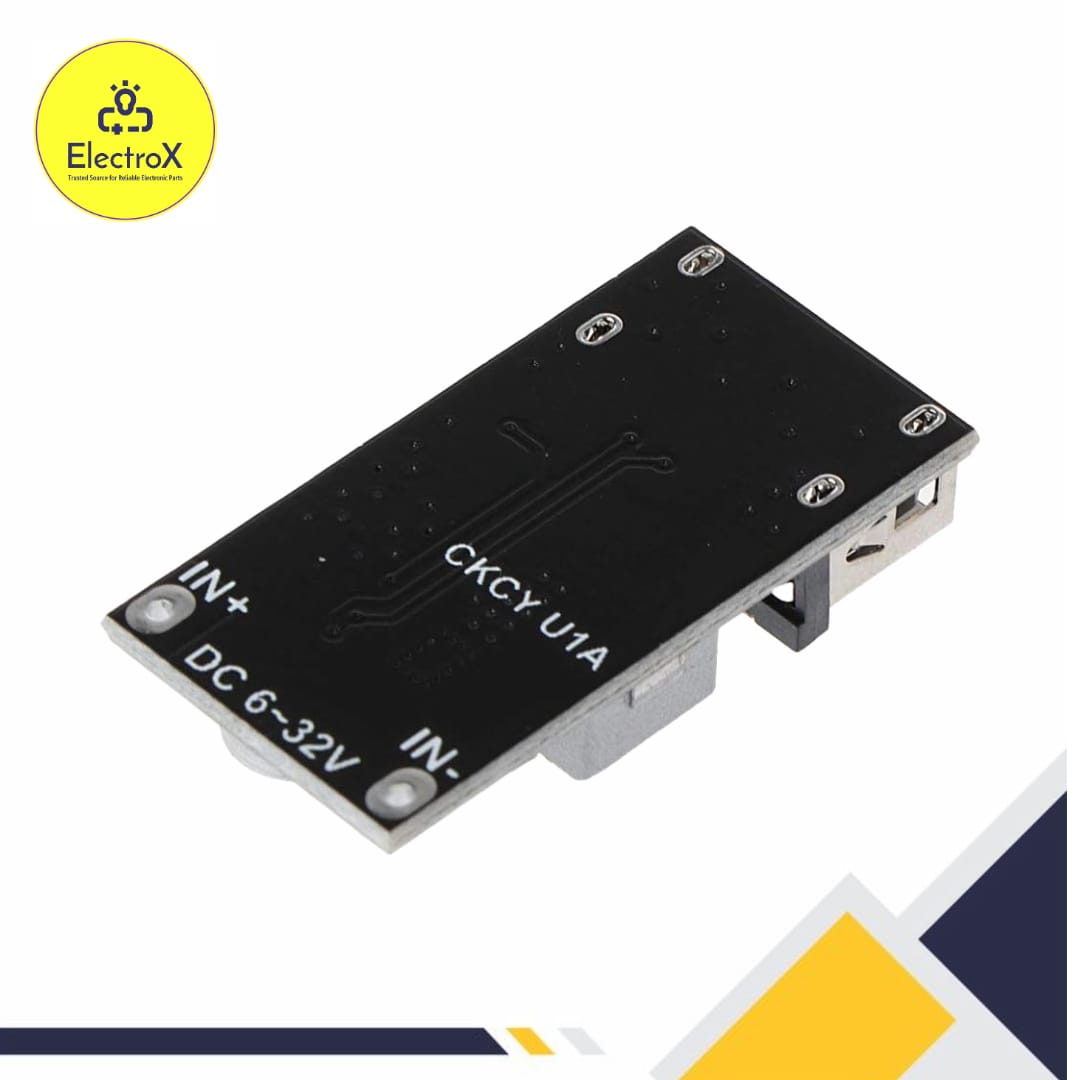

Another critical aspect of this module is its wide input voltage range of 6V to 32V DC. This broad range allows it to be used with various power sources, including car batteries, solar panels, and standard AC adapters, making it a highly adaptable component for different applications. The module’s high efficiency rating of up to 98% ensures minimal energy loss during the conversion process, which is particularly important when operating in battery-powered or energy-sensitive environments.

Advanced Protection Features

Safety is a paramount concern when dealing with power electronics, and the QC3.0 Fast Charging Module is equipped with a suite of protection features to ensure reliable operation. These include over-voltage protection, over-current protection, and short-circuit protection. These safeguards prevent damage to both the module and the devices being charged, ensuring longevity and consistent performance.

Over-voltage protection automatically limits the output voltage to a safe level, preventing damage to the connected devices. Over-current protection, on the other hand, ensures that the module does not exceed the maximum current rating, which could otherwise lead to overheating or failure. The short-circuit protection feature is crucial for preventing potential hazards caused by accidental short circuits, offering peace of mind during use.

Applications

The QC3.0 Fast Charging Module is versatile enough to be used in various applications, from simple DIY projects to more complex electronic systems. It’s particularly useful in portable power banks, where efficient and rapid charging is essential. The module can also be integrated into custom charging stations, solar-powered devices, and automotive power systems, where its ability to handle a wide input voltage range and deliver adjustable output is highly valued.

For developers and engineers, this module offers a reliable way to provide fast-charging capabilities to their prototypes and products. It can be used in conjunction with other electronic components, such as microcontrollers, sensors, and displays, to create fully functional and efficient systems. Its compatibility with the QC3.0 standard also ensures that it can work seamlessly with a wide range of modern devices, enhancing its utility in various projects.

Installation and Usage

Installing and using the QC3.0 Fast Charging Module is straightforward, making it accessible even to those with limited experience in electronics. The module typically features input and output terminals that are clearly labeled, allowing for easy connection to power sources and devices. Once connected, users can adjust the output voltage using a built-in potentiometer, ensuring that the correct voltage is delivered to the connected device.

The module’s compact size also makes it easy to integrate into existing projects without requiring significant modifications. Its lightweight design ensures that it does not add unnecessary bulk, which is particularly important in portable applications. Additionally, the module’s robust construction and high-quality components ensure long-term reliability, even in demanding environments.

Conclusion

The QC3.0 Fast Charging Module is an essential component for anyone looking to add fast-charging capabilities to their electronic projects. Its adjustable output voltage, high efficiency, and comprehensive protection features make it a versatile and reliable choice for various applications. Whether you’re building a custom power bank, a solar-powered device, or any other project that requires efficient power management, this module is a powerful tool that can help you achieve your goals. With its ease of installation and broad compatibility, the QC3.0 Fast Charging Module is a valuable addition to any electronics toolkit.

Common Questions:
What is the price of QC3.0 Fast Charging Module in Bangladesh?
The latest price of QC3.0 Fast Charging Module in Bangladesh is 220BDT.
Where to buy QC3.0 Fast Charging Module in Bangladesh?
You can buy the QC3.0 Fast Charging Module at the best price from ElectroXBD in Bangladesh.
