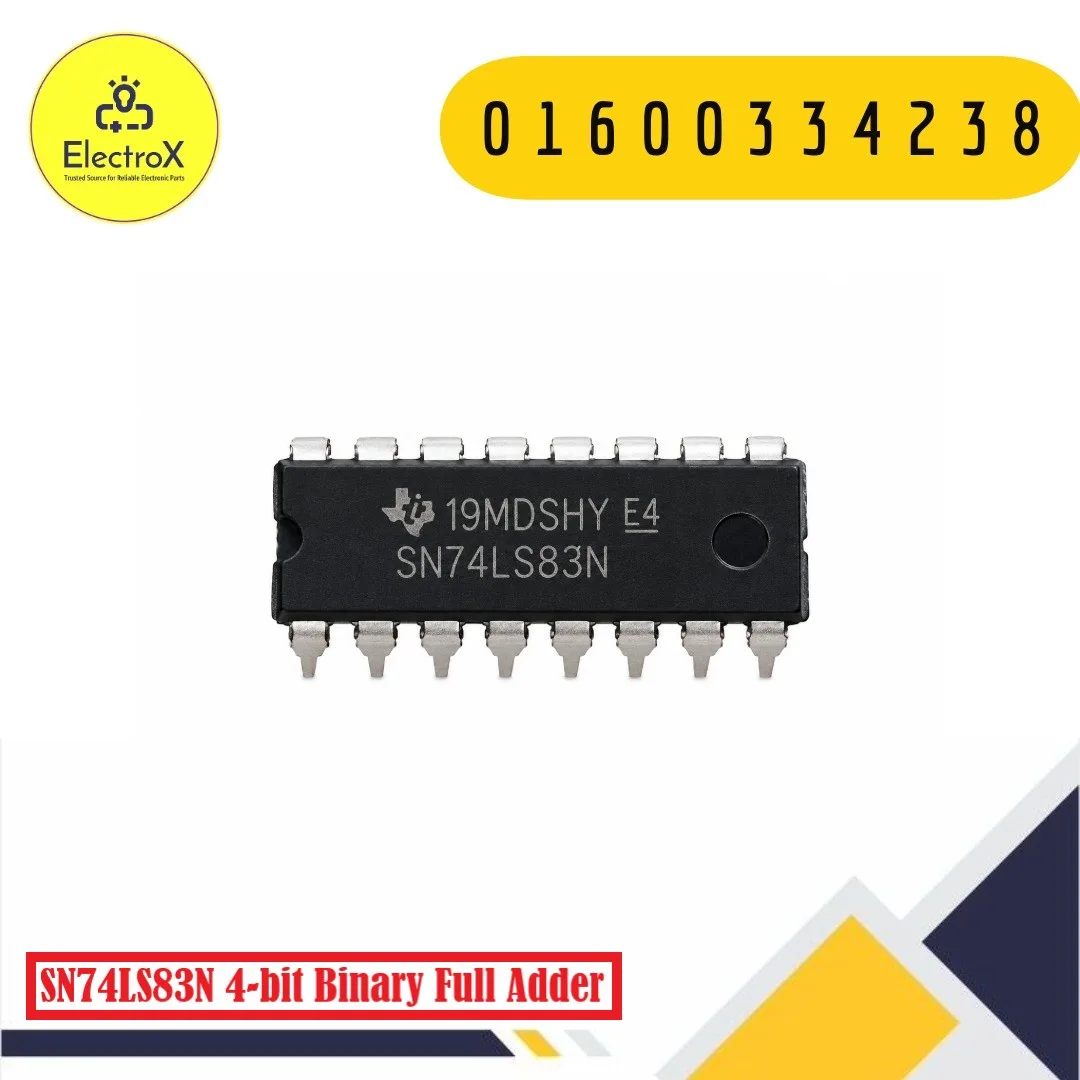

SN74LS83N 4-bit Binary Full Adder Price in Bangladesh

The SN74LS83N 4-bit Binary Full Adder is a digital logic integrated circuit designed to perform binary addition of two 4-bit numbers. It combines multiple full-adder stages within a single IC, making it convenient for building arithmetic circuits without having to construct individual full-adder gates from separate logic ICs.

The device accepts two 4-bit binary inputs along with a carry-in signal. It produces a 4-bit sum output and a carry-out signal. This makes the SN74LS83N useful for demonstrating how binary arithmetic works at the hardware level and for developing digital systems that require basic arithmetic operations.

Because it belongs to the 74LS TTL logic family, the SN74LS83N is particularly useful in traditional digital electronics laboratories, educational projects, logic demonstrations, and circuits involving other compatible TTL logic devices.

For electronics students and hobbyists, a 4-bit adder provides an excellent way to understand binary addition, carry propagation, combinational logic, and the construction of larger arithmetic circuits.

What is a 4-bit Binary Full Adder?

A binary full adder is a combinational logic circuit that adds binary values while also accepting a carry input from a previous addition stage.

A 4-bit binary adder performs this operation across four binary positions. For each bit position, the circuit considers the corresponding bits from the two input numbers and the carry generated by the previous position.

For example, two 4-bit numbers can be represented as:

A3 A2 A1 A0
B3 B2 B1 B0

The resulting operation produces:

S3 S2 S1 S0

along with a final carry output.

The SN74LS83N integrates this functionality into one convenient IC package.

Key Features

• 4-bit binary addition capability
• Integrated full-adder logic
• Carry input for cascading arithmetic stages
• Carry output for connection to additional adder stages
• 74LS TTL logic family
• Convenient 16-pin DIP package
• Suitable for breadboard and educational circuits
• Useful for combinational logic experiments
• Supports construction of larger binary arithmetic systems
• Suitable for digital electronics laboratories and projects

Technical Specifications

Electrical limits and operating specifications should be checked against the datasheet for the exact manufacturer/version of the SN74LS83N.

Working Principle

The SN74 LS83N operates by adding two 4-bit binary input values. Each binary position is processed with consideration of the carry generated by the lower-order position.

The least significant bits are added first. If their addition produces a carry, that carry is passed to the next bit position. The process continues through the remaining three positions.

The IC therefore provides four individual sum outputs corresponding to the four binary positions. A final carry output indicates whether the addition generated a carry beyond the highest bit.

For example, when two 4-bit binary numbers are added, the IC handles the required carry propagation internally. This significantly reduces the number of separate logic gates required to construct a practical 4-bit addition circuit.

The carry input also allows multiple adder ICs to be connected together. This makes it possible to construct arithmetic circuits capable of handling numbers larger than four bits.

Applications

The SN74 LS83N can be used in a variety of digital electronics applications, including:

• 4-bit binary arithmetic circuits
• Digital logic laboratory experiments
• Computer architecture demonstrations
• Arithmetic circuit design
• Educational digital electronics projects
• Binary addition demonstrations
• Combinational logic experiments
• Calculator-related circuits
• ALU-related learning projects
• Cascaded multi-bit arithmetic circuits
• Logic trainer boards
• Breadboard digital electronics experiments

Advantages

The main advantage of the SN74 LS83N is that it integrates the required logic for 4-bit binary addition into a single IC. This makes circuit construction considerably simpler than implementing the same function with individual AND, OR, and XOR logic gates.

Its DIP package is also convenient for educational laboratories and breadboard prototyping. The carry input and carry output make the device useful when studying multi-bit arithmetic and cascading several arithmetic stages.

Limitations

The SN74 LS83N is based on the traditional 74LS TTL logic family, so its electrical characteristics differ from modern CMOS logic families. When combining it with other logic devices, voltage-level compatibility should be considered.

The device is intended for digital logic applications rather than direct connection to high-current loads. External components or suitable driver stages may be required when interfacing with LEDs, motors, relays, or other loads.

Installation / Usage Tips

Use the correct supply voltage and follow the manufacturer’s datasheet when designing a circuit around the SN74 LS83N. Identify the IC orientation and pin functions carefully before inserting it into a breadboard.

Keep unused logic inputs from being left in an inappropriate floating state, and ensure that connected logic devices use compatible voltage levels. When experimenting with the IC, a regulated power source and appropriate bypass capacitor are recommended.

For educational experiments, the sum and carry outputs can be connected to suitable indicator circuits so that binary addition and carry propagation can be observed.

Why Choose SN74 LS83N?

The SN74 LS83N provides a compact and practical way to implement 4-bit binary addition. Instead of assembling a complete adder from several individual logic gates, designers can use a dedicated arithmetic IC.

It is particularly useful for students learning digital logic because the relationship between binary inputs, sum outputs, and carry propagation can be demonstrated with a relatively simple circuit.

Why Buy from ElectroXBD?

ElectroXBD supplies electronic components, Arduino products, sensors, modules, development boards, and digital electronics parts for students, hobbyists, engineers, educational institutions, and project builders in Bangladesh.

The SN74LS83N 4-bit Binary Full Adder is suitable for digital electronics projects, laboratory experiments, and binary arithmetic circuit development.

You can order electronic components from ElectroXBD with nationwide delivery support.
