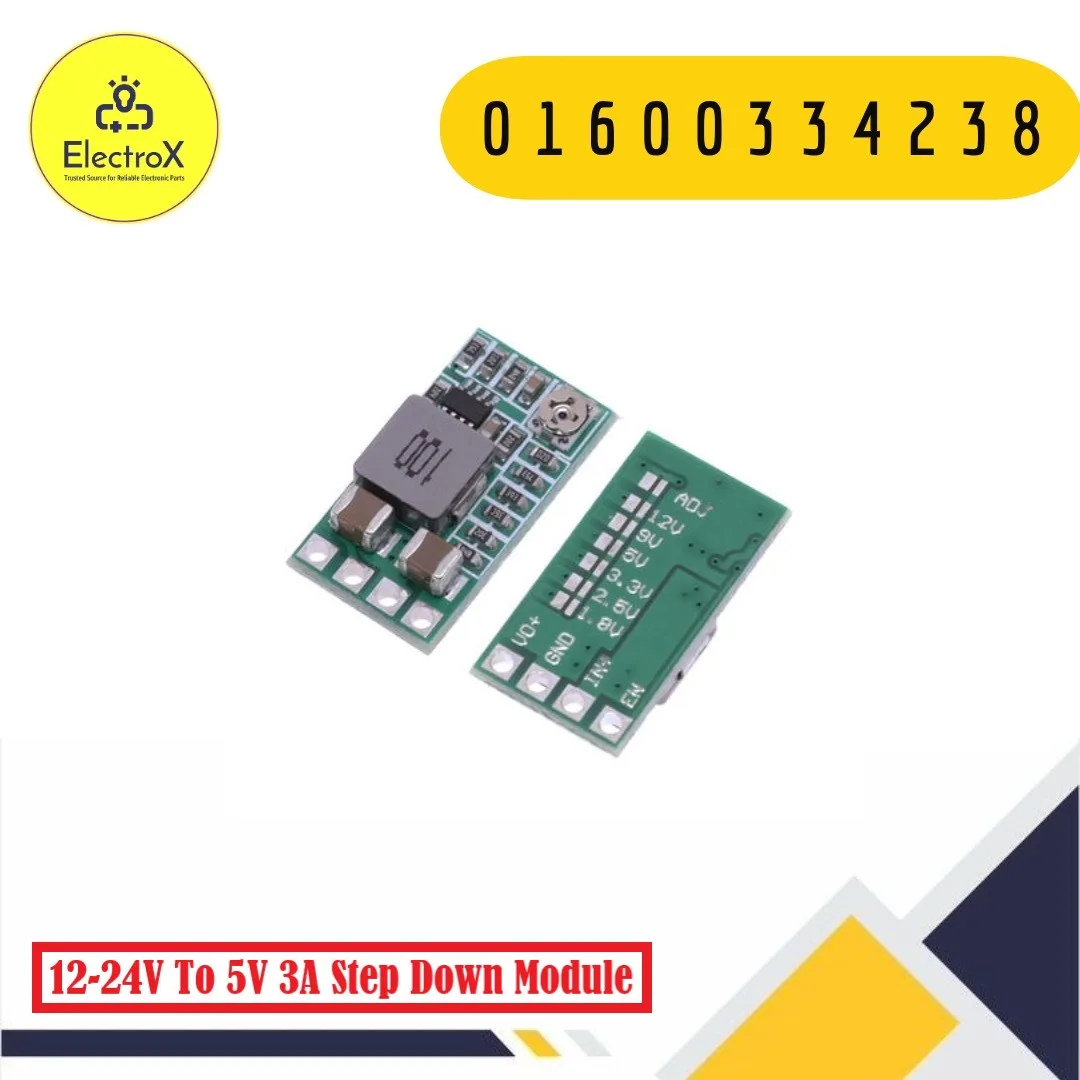

12-24V To 5V 3A Step Down Power Supply Module Price in Bangladesh

The 12-24V To 5V 3A Step Down Power Supply Module is a compact DC-DC power conversion module designed to reduce a higher DC input voltage to a regulated 5V output. It is suitable for applications where a 5V electronic circuit needs to be powered from commonly available 12V or 24V DC sources.

Many electronic systems, microcontrollers, sensors, communication modules, displays, and other accessories operate from relatively low DC voltages. This module provides a convenient way to obtain a 5V supply without using a large conventional power supply.

The module uses switching-based voltage conversion, allowing it to reduce the input voltage while generally producing less heat than a linear regulator performing the same voltage reduction.

With an advertised output capability of up to 3A, the module can be useful for powering suitable 5V loads. However, the actual continuous output capability depends on the particular board design, thermal conditions, input-output voltage difference, wiring, and operating environment.

What is a Step-Down Power Supply Module?

A step-down power supply module, also called a buck converter, is a DC-DC converter that reduces a higher input voltage to a lower output voltage.

For example, this module can take a suitable 12V or 24V DC input and produce a regulated 5V DC output. Switching components, inductors, capacitors, and feedback circuitry work together to transfer energy efficiently and maintain the required output voltage.

Compared with a linear regulator, a switching step-down converter can provide significantly better efficiency when the input voltage is substantially higher than the desired output.

Key Features

• Supports a wide 12V–24V DC input range
• Provides regulated 5V DC output
• Advertised output current up to 3A
• Switching DC-DC conversion
• Compact power-supply design
• Suitable for embedded electronics
• Useful for Arduino and sensor projects
• Suitable for 12V and 24V power systems
• Convenient for automotive and robotics applications
• Practical for DIY electronics projects

Technical Specifications

Note: Exact efficiency, ripple, protection functions, dimensions, and continuous-current performance can vary between manufacturers and board versions. Verify the specifications of the supplied module before use.

Working Principle

The module uses a switching regulator to convert the higher DC input into a lower regulated output.

During operation, the switching circuit rapidly controls the flow of current through an energy-storage inductor. The inductor and capacitors smooth the switched waveform, while feedback circuitry monitors the output voltage and adjusts the switching operation.

When a suitable 12V or 24V DC source is connected, the converter reduces this voltage to approximately 5V DC for compatible loads.

Because energy is transferred through a switching process rather than continuously dissipated across a linear regulating element, the module can achieve much better efficiency than a simple linear regulator in many step-down applications.

Applications

The 12-24V To 5V 3A Step Down Power Supply Module can be used in:

• Arduino projects
• ESP32 projects
• Raspberry Pi accessory circuits
• Sensor systems
• Embedded electronics
• Robotics projects
• Automotive electronics
• 12V vehicle electronics
• 24V industrial control systems
• LED and display projects
• Relay and control circuits
• CCTV and electronic accessories
• DIY power supplies
• Battery-powered electronics
• IoT projects

Advantages

The module provides a convenient solution when a 5V supply is required from a 12V or 24V DC source.

Its switching design can provide better efficiency and lower heat generation than a linear regulator when the voltage needs to be reduced significantly.

The compact form factor also makes it suitable for integration into custom electronic equipment, control panels, robotics systems, and embedded projects.

Limitations

The 3A rating is an advertised maximum and should not automatically be treated as a guaranteed continuous 3A output under all conditions. Actual performance depends on the board’s thermal design, components, input voltage, ambient temperature, and airflow.

Switching converters can produce electrical noise and ripple. Applications involving sensitive analog measurements or RF circuits may require additional filtering.

The module is designed for DC input only and should not be connected directly to AC mains voltage.

Installation / Usage Tips

Always confirm the input and output polarity before connecting the module. Reversed polarity can damage the converter or the connected electronics.

Use a suitable DC source within the specified 12V–24V input range. Before connecting sensitive equipment, measure the output with a multimeter to confirm that it is approximately 5V.

For higher-current operation, provide adequate ventilation and monitor the module’s temperature. Use appropriately sized wires, connectors, and protection devices for the expected current.

When installing the module in an enclosure, avoid placing it next to heat-producing components without adequate thermal consideration.

Why Choose the 12-24V To 5V 3A Step Down Module?

This module is useful when a project already has a 12V or 24V DC power source but requires a regulated 5V supply for electronic circuits.

It offers a compact switching-based solution for powering compatible microcontrollers, sensors, displays, communication modules, and other 5V electronics without requiring a separate AC-powered adapter.

Why Buy from ElectroXBD?

ElectroXBD supplies DC-DC converters, voltage regulators, Arduino boards, sensors, robotics components, batteries, electronic tools, and other electronic parts for students, engineers, makers, laboratories, and DIY enthusiasts in Bangladesh.

You can buy the 12-24V To 5V 3A Step Down Power Supply Module from ElectroXBD for electronics, embedded systems, robotics, automotive, and automation projects.

ElectroXBD
Trusted Source for Reliable Electronic Parts
Address: H#1/1, Opposite of RH Chhatrabash, Vodra-Talaimari Road, Rajshahi
WhatsApp: 01600334238
Website: electroxbd.com

Frequently Asked Questions (FAQ)

1. What is the 12-24V To 5V Step Down Module used for?

It is used to convert a 12V or 24V DC power source into a regulated 5V DC supply for compatible electronic devices and circuits.

2. Can I use this module with a 12V battery?

Yes. A suitable 12V DC battery can be used as the input source, provided the battery voltage remains within the module’s specified input range.

3. Can I use a 24V power supply with this module?

Yes, the module is designed for a 12V–24V DC input, subject to the exact specifications of the supplied board.

4. Can this module power an Arduino?

Yes. Its 5V output can be suitable for powering compatible Arduino circuits, provided the current requirements and connection method are appropriate for the particular Arduino board.

5. Can it provide 3A continuously?

The product is advertised as a 3A module, but continuous output capability depends on the specific module’s thermal design and operating conditions. Do not assume the maximum advertised current is guaranteed under every condition.

6. Does the module convert AC to DC?

No. This is a DC-DC step-down converter and requires a DC input. It should not be connected directly to AC mains.

7. Does the module get hot during operation?

Some heat is normal during power conversion, particularly at higher loads. The amount depends on efficiency, input voltage, output current, and thermal conditions.

8. Where can I buy a 12-24V to 5V 3A converter in Bangladesh?

You can buy the 12-24V To 5V 3A Step Down Power Supply Module from ElectroXBD, a trusted electronics components supplier in Bangladesh.

Common Questions:

Q: What is the price of 12-24V To 5V 3A Step Down Power Supply Module in Bangladesh?

A: The latest price of 12-24V To 5V 3A Step Down Power Supply Module in Bangladesh is 100 BDT.

Q: Where to buy 12-24V To 5V 3A Step Down Power Supply Module in Bangladesh?

A: You can buy the 12-24V To 5V 3A Step Down Power Supply Module at the best price from ElectroXBD in Bangladesh.
