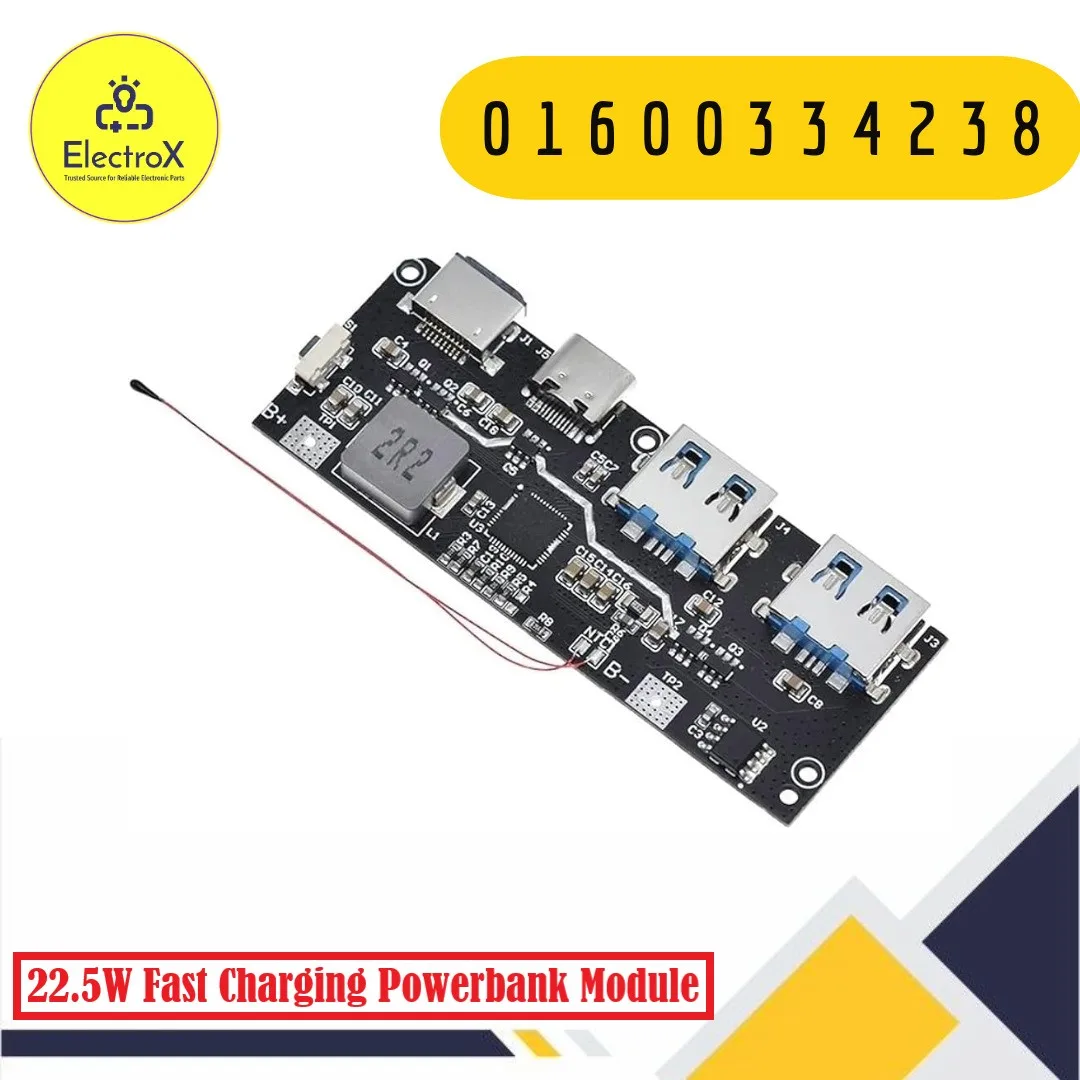

22.5W Power Bank Module QC4.0 Fast Charging Price in Bangladesh

The 22.5W Power Bank Module QC4.0 Fast Charging is a high-performance charging and battery management board designed for building or repairing modern fast-charging power banks. Equipped with support for Qualcomm Quick Charge 4.0 (QC4.0), QC3.0, Power Delivery (PD3.0), PPS, AFC, FCP, SCP, and several other fast-charging protocols, this module provides excellent compatibility with smartphones, tablets, wireless accessories, and many USB-powered devices.

Designed for DIY makers, engineers, students, and electronics enthusiasts, this module combines battery charging, battery protection, voltage boosting, fast charging negotiation, and intelligent power management into a compact PCB. It is suitable for custom 18650 lithium battery packs, portable charging stations, solar-powered battery projects, emergency backup systems, and power bank repairs.

The module supports up to 22.5W output power, allowing compatible devices to charge significantly faster than conventional 5V USB chargers. With USB Type-C support for both charging and output (depending on model), it offers excellent compatibility with modern smartphones and USB-C devices. USB-A ports also support multiple fast-charging standards, ensuring compatibility with older devices.

Charging efficiency is typically as high as 95%, minimizing power loss and heat generation. The onboard intelligent charging controller automatically negotiates the appropriate charging voltage and current with connected devices, delivering safe and optimized charging performance.

Safety is another major advantage of this module. Built-in protection features include over-current protection (OCP), over-voltage protection (OVP), short-circuit protection (SCP), over-temperature protection (OTP), battery overcharge protection, and intelligent charging management. These features help protect both the battery pack and connected devices during operation.

Many versions also include an LED or digital battery level display, automatic load detection, light-load detection, and multi-stage charging consisting of trickle charging, constant-current charging, and constant-voltage charging for improved battery lifespan.

Whether you’re building a premium DIY power bank, repairing an existing portable charger, or designing a custom lithium battery-powered system, the 22.5W QC4.0 Fast Charging Module offers an efficient, reliable, and feature-rich solution.

🔍 What is a Power Bank Fast Charging Module?

A power bank fast charging module is an intelligent charging circuit that manages lithium battery charging, battery protection, voltage conversion, and USB fast-charging communication.

It automatically detects connected devices and delivers the appropriate voltage and current using supported charging protocols such as QC4.0 and PD3.0, enabling significantly faster charging than conventional USB chargers.

✨ Key Features of 22.5W Power Bank Module QC4.0 Fast Charging

• Maximum 22.5W fast charging output
• Supports QC4.0, QC3.0, PD3.0, PD2.0
• PPS fast charging support
• USB Type-C fast charging
• USB-A fast charging output
• High conversion efficiency up to 95%
• Intelligent charging management
• Multi-stage battery charging
• Automatic load detection
• Battery level indicator support
• Over-current protection
• Over-voltage protection
• Short-circuit protection
• Over-temperature protection
• Compact PCB design
• Ideal for DIY power bank projects

⚙️ Technical Specifications

• Product Type: Power Bank Charging Module
• Maximum Output Power: 22.5W
• Input Voltage: 5V / 9V / 12V
• Output Voltage: 5V / 9V / 12V / 15V / 20V (protocol dependent)
• Maximum Output Current: Up to 5A
• Charging Efficiency: Up to 95%
• Battery Support: 3.7V Lithium-ion / 18650 Cells
• Charging Protocols Supported:
  • QC4.0
  • QC3.0
  • QC2.0
  • PD3.0
  • PD2.0
  • PPS
  • AFC
  • FCP
  • SCP
  • VOOC (model dependent)
• Input Interface: USB Type-C / Micro USB (model dependent)
• Output Interface: USB Type-C & USB-A
• Protection Features:
  • Over Voltage Protection
  • Over Current Protection
  • Short Circuit Protection
  • Over Temperature Protection
  • Intelligent Charging Control
• Application: DIY Power Banks, Battery Packs, Portable Chargers

⚡ Working Principle of 22.5W Power Bank Module QC4.0 Fast Charging

The module first charges the connected lithium battery using a three-stage charging process consisting of trickle charging, constant-current charging, and constant-voltage charging. This ensures efficient charging while maximizing battery lifespan.

When a USB device is connected, the onboard controller identifies the supported fast-charging protocol and negotiates the appropriate voltage and current. A high-efficiency boost converter then raises the battery voltage to the required USB output voltage, allowing compatible devices to receive fast charging while maintaining stable output and built-in safety protections.

🔧 Applications of 22.5W Power Bank Module QC4.0 Fast Charging

• DIY power bank projects
• 18650 battery pack construction
• Portable mobile chargers
• USB charging stations
• Emergency backup power
• Solar-powered battery systems
• Robotics power supplies
• IoT portable devices
• Electronics laboratory projects
• Battery repair and upgrades
• Portable charging boxes
• Custom rechargeable battery systems

✅ Advantages of 22.5W Power Bank Module

• Supports almost all major fast-charging standards
• High charging efficiency
• Compact PCB design
• Intelligent charging management
• Multiple safety protections
• Fast USB Type-C charging
• Suitable for modern smartphones
• Easy integration into DIY projects
• Reliable battery charging
• Excellent compatibility

⚠️ Limitations

• Requires compatible lithium battery cells
• Actual fast charging depends on connected device support
• Maximum output power depends on battery condition and power source
• Proper battery wiring is essential for safe operation

🛠️ Installation / Usage Tips

• Use high-quality lithium-ion battery cells.
• Observe correct battery polarity before connection.
• Use batteries with similar capacity and condition.
• Ensure adequate ventilation during high-power operation.
• Do not short-circuit the battery terminals.
• Verify output voltage before connecting sensitive devices.
• Use quality USB cables to achieve maximum fast-charging performance.
• Keep the module away from moisture and excessive heat.

💡 Why Choose 22.5W Power Bank Module QC4.0 Fast Charging

The 22.5W Power Bank Module QC4.0 Fast Charging is an excellent solution for anyone looking to build or repair a modern fast-charging power bank. With broad protocol compatibility, intelligent charging management, high efficiency, and comprehensive protection features, it delivers reliable and safe performance for both hobby and professional applications.

Whether you’re creating a custom portable charger or upgrading an existing power bank, this module provides fast charging capabilities comparable to many commercial products.

🛒 Why Buy from Electroxbd

• 100% Quality Tested Products
• Trusted Source for Reliable Electronic Parts
• Fast Delivery Across Bangladesh
• Competitive Pricing
• Genuine DIY Power Bank Modules
• Technical Support Available
• Ideal for Students, Engineers, and Makers

❓ Frequently Asked Questions (FAQ)

What is the 22.5W Power Bank Module QC4.0 Fast Charging used for?

It is used to build or repair DIY power banks with support for modern fast-charging protocols like QC4.0, QC3.0, and PD3.0.

Does this module support USB Type-C fast charging?

Yes, most versions support USB Type-C for charging and output, along with USB-A fast charging.

Which fast charging protocols are supported?

The module supports QC4.0, QC3.0, PD3.0, PPS, AFC, FCP, SCP, and several other mainstream fast-charging protocols.

Can I use 18650 lithium-ion batteries with this module?

Yes, it is designed for rechargeable lithium-ion battery packs, including 18650 cells.

Where can I buy the 22.5W Power Bank Module QC4.0 Fast Charging in Bangladesh?

You can buy the 22.5W Power Bank Module QC4.0 Fast Charging from Electroxbd, a trusted electronics components supplier in Bangladesh.

Common Questions:

Q: What is the price of 22.5W Power Bank Module QC4.0 Fast Charging in Bangladesh?

A: The latest price of 22.5W Power Bank Module QC4.0 Fast Charging in Bangladesh is 300 BDT.

Q: Where to buy 22.5W Power Bank Module QC4.0 Fast Charging in Bangladesh?

A: You can buy the 22.5W Power Bank Module QC4.0 Fast Charging at the best price from ElectroXBD in Bangladesh.
