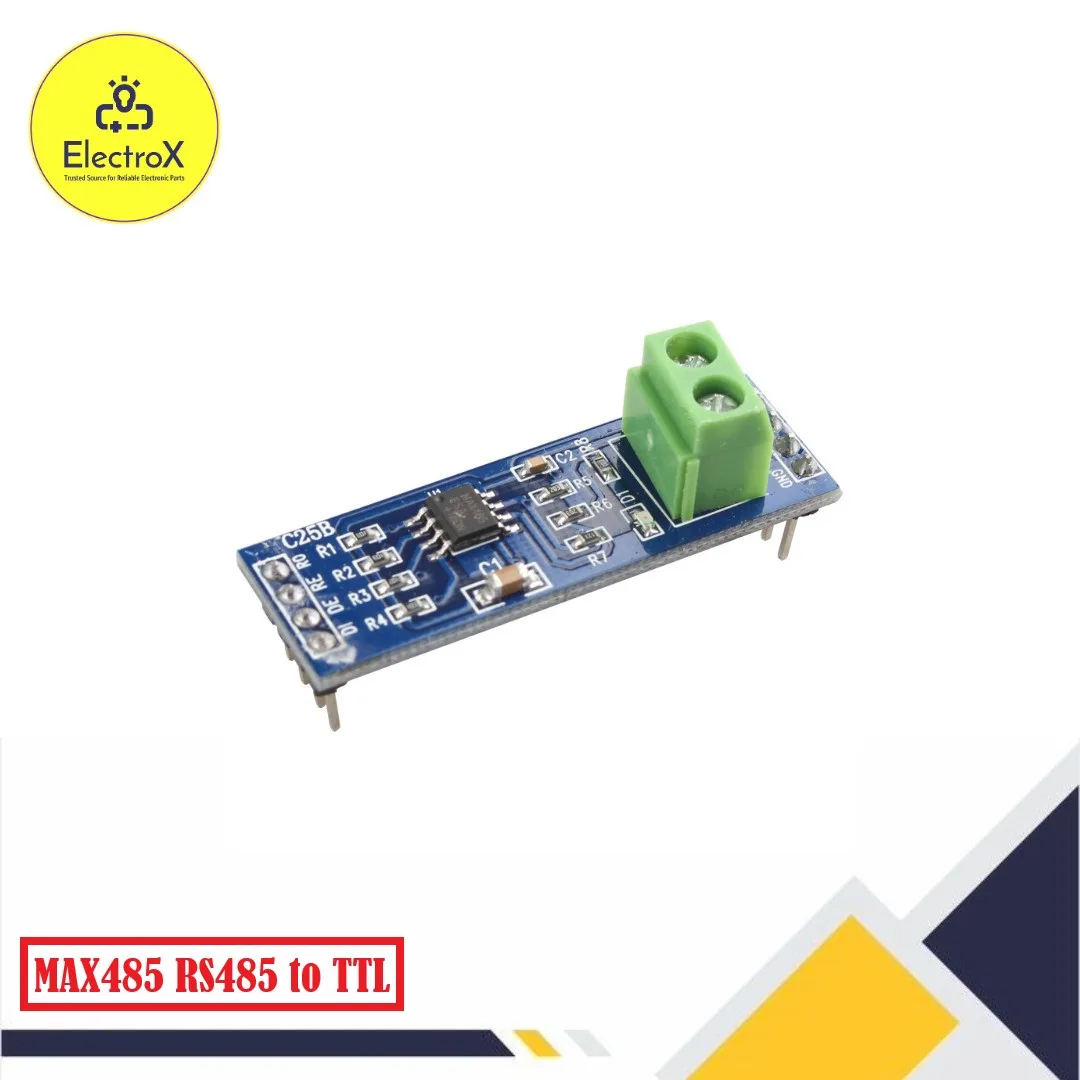

MAX485 RS485 to TTL Serial Converter Module

The MAX485 RS485 to TTL Serial Converter Module is a robust and reliable communication interface designed for long-distance serial data transmission in industrial and embedded systems. Built around the widely used MAX485 transceiver IC, this module allows microcontrollers such as Arduino, ESP32, ESP8266, STM32, and Raspberry Pi to communicate using the RS485 standard.

RS485 communication is preferred in industrial environments due to its high noise immunity, differential signaling, and ability to support long cable lengths. The MAX485 module converts standard TTL-level UART signals into RS485 differential signals, making it ideal for industrial automation, Modbus communication, sensor networks, and distributed control systems.

This module is compact, easy to use, and highly reliable, making it a popular choice for both educational projects and professional industrial applications.

Key Features of MAX 485 RS485 to TTL Converter

• Based on original MAX 485 transceiver IC

• Converts TTL UART to RS485 differential signals

• Supports long-distance communication

• High noise immunity

• Half-duplex communication mode

• Simple UART interface

• Compact and durable PCB design

• Low power consumption

• Suitable for industrial environments

• Easy integration with microcontrollers

Technical Specifications of MAX 485 Converter Module

Chipset: MAX 485
Interface Type: RS485 to TTL UART
Communication Mode: Half Duplex
Operating Voltage: DC 5V
Logic Level: TTL compatible
Maximum Communication Distance: Long-distance support
Data Rate: High-speed serial communication
Terminal Type: Screw terminal or pin header
PCB Size: Compact module
Usage Type: Industrial and embedded communication

Applications of MAX 485 RS485 to TTL Module

The MAX 485 RS485 to TTL Serial Converter Module is widely used in various communication and automation applications, including:

• Industrial automation systems

• Modbus RTU communication

• Long-distance sensor networks

• PLC communication projects

• Arduino industrial interfaces

• ESP32 and ESP8266 RS485 projects

• Smart energy meters

• Environmental monitoring systems

• Distributed control systems

• Educational industrial electronics projects

Its ability to handle noisy environments makes it ideal for factory and outdoor installations.

Working Principle of MAX 485 RS485 Module

The MAX 485 module works by converting single-ended TTL UART signals into differential RS485 signals. Differential signaling uses two wires to transmit data, which significantly reduces noise interference.

The microcontroller sends serial data via TX and RX pins. Control pins determine whether the module is in transmit or receive mode. The RS485 signals travel over long cables and are converted back to TTL signals at the receiving end.

This design allows reliable communication over distances much greater than standard UART connections.

Advantages of Using MAX 485 RS485 Converter

• Long-distance communication capability

• High resistance to electrical noise

• Simple UART-based control

• Low power consumption

• Reliable industrial-grade communication

• Compact and easy to install

• Cost-effective solution

• Widely supported protocol

• Suitable for harsh environments

• Stable long-term operation

Why MAX 485 is Ideal for Arduino and ESP Projects

Standard UART communication is limited in distance and susceptible to noise. The MAX485 module extends communication range while maintaining reliability.

By using this module, Arduino and ESP-based systems can communicate with industrial sensors, meters, and controllers over long distances, making it essential for industrial IoT and automation projects.

Performance and Reliability

The MAX 485 transceiver is known for its stable performance and durability. When properly powered and terminated, the module delivers consistent and error-free communication.

Its robust design ensures reliable operation even in electrically noisy environments.

Why Buy MAX 485 RS485 Module from Electroxbd

• Genuine and quality-tested modules

• Reliable industrial communication performance

• Competitive pricing in Bangladesh

• Suitable for students and professionals

• Fast nationwide delivery

• Expert technical support

• Trusted Source for Reliable Electronic Parts

Electroxbd ensures every RS485 module meets quality and performance standards.

Buy MAX485 RS485 to TTL Serial Converter Module in Bangladesh

Order the MAX485 RS485 to TTL Serial Converter Module today from Electroxbd.com and build reliable long-distance communication systems for Arduino, ESP, and industrial automation projects.
