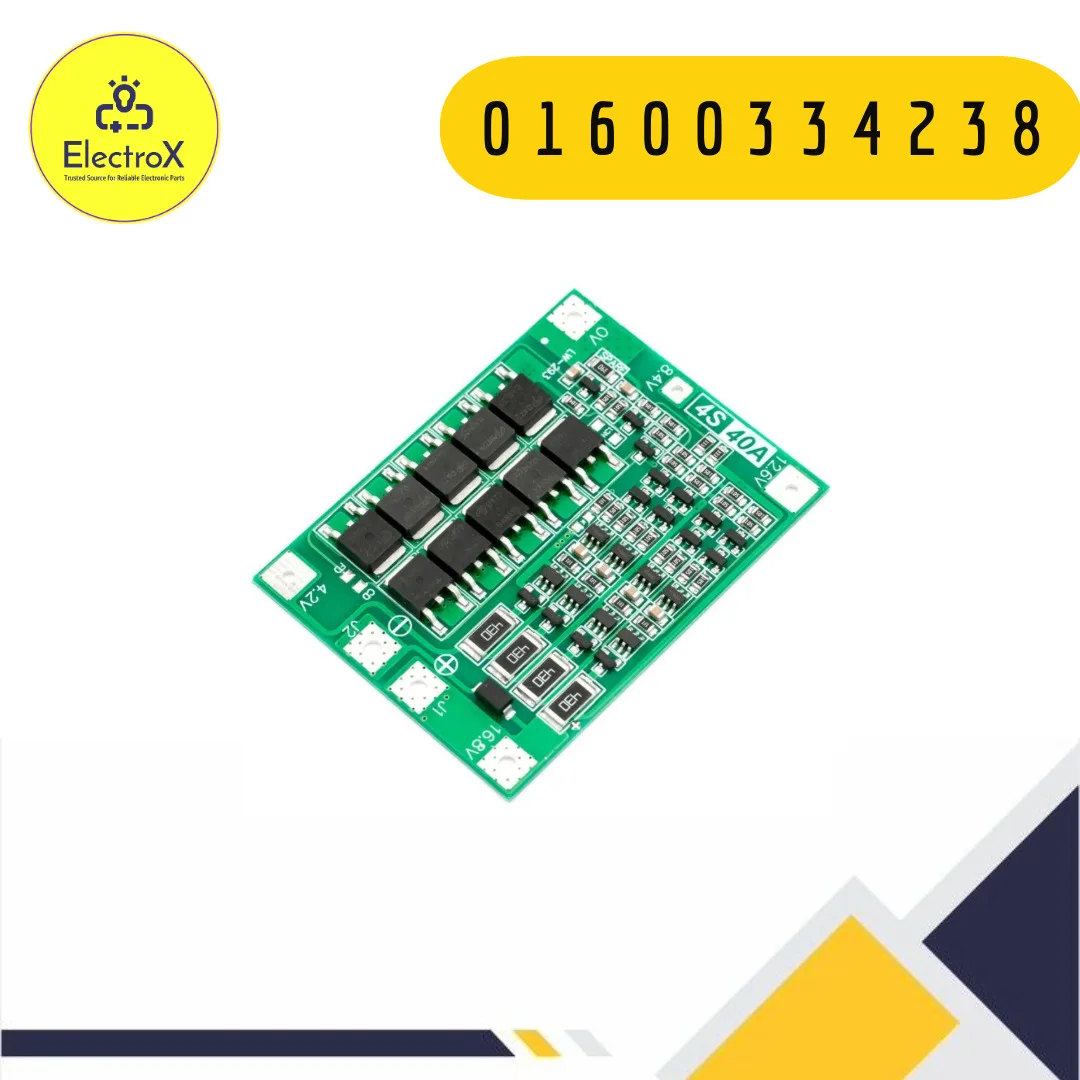

4S 40A BMS 14.8V 18650 Lithium-Ion Battery BMS Price in Bangladesh

The 4S 40A BMS 14.8V 18650 Lithium-Ion Battery BMS is a battery management and protection board designed for four lithium-ion cells or cell groups connected in series. It is commonly used when building rechargeable battery packs from 18650 cells and provides electronic protection against potentially damaging operating conditions such as overcharge, over-discharge, excessive current, and short circuit.

A typical 4S lithium-ion battery pack uses four 3.7V nominal cells connected in series. The resulting battery has a nominal voltage of approximately 14.8V, while a fully charged 4S Li-ion pack reaches approximately 16.8V. Because each individual cell can behave differently during charging and discharging, a suitable BMS is important for monitoring and protecting the series-connected cells.

The 4S configuration is one of the most common arrangements for building higher-voltage lithium-ion battery packs from individual cylindrical cells. It can be used with 18650 cells and, where the physical construction permits, other compatible cylindrical Li-ion cells. Multiple cells may also be connected in parallel within each series group to increase the overall battery capacity.

For example, a 4S2P pack consists of four series groups, with two cells connected in parallel within each group. The resulting pack remains a 4S battery from the BMS’s perspective, while the parallel arrangement increases capacity. The BMS must be selected according to the number of series groups, not simply the total number of cells.

The 40A rating indicates the intended current-handling capability of this BMS class. However, the actual safe continuous current depends on the exact PCB design, MOSFETs, PCB copper thickness, wiring, connectors, ambient temperature, and duration of operation. Therefore, the 40A marking should not be interpreted as a guarantee that every 4S battery pack can safely supply 40A continuously.

A BMS provides an important protection layer because lithium-ion cells require controlled operating conditions. During charging, the cells must not be driven beyond their specified maximum voltage. During discharge, the cell voltage should not fall below its specified minimum. Excessive current can also cause overheating or damage.

The 4S 40A BMS monitors the battery pack through its cell-sensing connections. Depending on the particular board version, the protection circuitry can disconnect the battery from the charger or load when an abnormal condition is detected.

Typical protection functions include overcharge protection, over-discharge protection, overcurrent protection, and short-circuit protection. Some versions may additionally provide balancing, temperature monitoring, or other functions, so the exact board specifications should always be checked before installation.

It is also important to understand that a BMS is not the same as a battery charger. A 4S lithium-ion pack requires an appropriate 16.8V CC/CV charging source. The BMS protects the cells while charging but does not necessarily perform the complete charging algorithm itself.

When constructing a battery pack, the cells should ideally be matched for capacity, internal resistance, age, and general condition. Using significantly mismatched cells can lead to cell imbalance and cause the BMS to disconnect the pack prematurely.

The 4S 40A BMS is therefore a practical component for battery-pack builders, electronics technicians, robotics enthusiasts, engineers, and DIY users who need protection for a 14.8V nominal lithium-ion battery system.

What is a 4S Li-ion BMS?

A 4S BMS is an electronic battery management and protection circuit designed for four lithium-ion cell groups connected in series.

The term 4S means:

• 4 = four series-connected cell groups
• S = series

For standard 3.7V nominal Li-ion cells:

• 1S = approximately 3.7V nominal
• 2S = approximately 7.4V nominal
• 3S = approximately 11.1V nominal
• 4S = approximately 14.8V nominal

The full-charge voltage of a standard 4S Li-ion pack is approximately 16.8V.

Key Features of 4S 40A BMS

• Designed for 4S Li-ion battery packs
• 40A-class current capability
• Suitable for 18650 battery packs
• 14.8V nominal battery configuration
• 16.8V full-charge pack voltage
• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Individual series-group monitoring
• Compact protection PCB
• Suitable for DIY battery pack construction
• Useful for rechargeable power systems
• Suitable for 4S1P, 4S2P and other compatible 4S configurations
• Can help improve battery-pack operating safety

Technical Specifications

• Product Type: Lithium-Ion BMS / Battery Protection Board
• Configuration: 4S
• Battery Chemistry: Li-ion
• Nominal Pack Voltage: 14.8V
• Full-Charge Voltage: 16.8V
• Rated Current: Up to 40A
• Cell Type: Compatible 18650 Li-ion Cells
• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit
• Series Cell Groups: 4
• Application: 4S Rechargeable Lithium-Ion Battery Packs
• PCB Type: Battery Management / Protection Circuit

Important: Exact specifications such as overcharge detection voltage, over-discharge detection voltage, overcurrent threshold, short-circuit delay, balancing current, quiescent current, and continuous current capability can vary among 4S 40A BMS board versions. Check the markings and technical specifications of the exact board before installation.

Working Principle of 4S 40A BMS

The BMS monitors the individual voltage levels of the four series-connected battery groups through its balance/sensing connections.

During charging, the BMS checks the voltage of each series group. If one group reaches its specified maximum protection threshold, the charging path can be disconnected to help prevent overcharging.

During discharge, the BMS monitors the cell-group voltages. If one group falls below the specified minimum voltage, the BMS can disconnect the load to help prevent excessive discharge.

The current-protection section monitors the current flowing through the battery circuit. If the current exceeds the board’s specified protection threshold, the BMS can interrupt the output.

In the event of a short circuit, the protection circuit can rapidly disconnect the battery from the load, depending on the board’s design.

These functions allow the BMS to act as a protective interface between the battery cells, charger, and external load.

Applications of 4S 40A BMS 14.8V Battery

• 4S 18650 battery packs
• 14.8V Li-ion battery packs
• 4S2P battery configurations
• Portable power supplies
• DIY UPS systems
• Robotics battery packs
• RC electronics
• Electric equipment
• LED lighting systems
• Portable electronics
• Backup power systems
• DIY power stations
• Battery-powered tools
• Engineering prototypes
• Solar-energy projects
• Rechargeable equipment

Advantages of 4S 40A BMS

• Designed specifically for 4S Li-ion packs
• Supports relatively high current applications
• Provides multiple protection functions
• Helps prevent battery overcharge
• Helps prevent excessive discharge
• Provides overcurrent protection
• Provides short-circuit protection
• Suitable for 18650 battery packs
• Compact and easy to integrate
• Useful for series-parallel battery configurations
• Suitable for DIY and professional battery projects
• Helps improve battery-pack safety

Limitations

• Designed for 4S Li-ion, not automatically suitable for LiFePO4.
• A 40A rating does not guarantee 40A continuous operation in every installation.
• Actual current capability depends on thermal conditions, wiring, PCB construction, MOSFETs, and connectors.
• The BMS does not necessarily replace a dedicated lithium-ion charger.
• Some versions may not include cell balancing.
• Incorrect wiring can permanently damage the BMS or battery cells.
• Poorly matched cells can cause imbalance and reduce battery performance.

Installation / Usage Tips

• Confirm that your battery is a 4S Li-ion configuration.
• Use four matched Li-ion cells or four matched parallel cell groups.
• Verify the polarity of every cell before connecting the BMS.
• Follow the terminal markings on the exact PCB.
• Connect the negative battery terminal to B− where indicated.
• Connect the intermediate cell junctions to the appropriate balance terminals.
• Connect the positive battery terminal to B+ where indicated.
• Connect the load/charger through the correct output terminals according to the board design.
• Use an appropriate 16.8V CC/CV Li-ion charger.
• Select wiring and connectors suitable for the expected current.
• Insulate exposed battery terminals and PCB connections.
• Test each individual series group before connecting the complete pack.
• Check pack voltage after installation.
• Do not short-circuit the battery terminals.
• Do not use damaged, swollen, or otherwise compromised cells.
• Provide adequate ventilation when operating at higher currents.

4S1P vs 4S2P Battery Pack

A 4S BMS can be used with different parallel arrangements as long as the pack remains 4S.

4S1P:
Four individual cells are connected in series. The nominal pack voltage is approximately 14.8V.

4S2P:
Two cells are connected in parallel to form each series group, and four such groups are connected in series. The nominal voltage remains approximately 14.8V, while the total capacity is approximately doubled compared with using one cell per group, assuming identical cells.

The BMS monitors the four series groups in both configurations.

Why Choose 4S 40A BMS 14.8V 18650 Battery Protection Board?

The 4S 40A BMS is a practical choice for users building 14.8V nominal lithium-ion battery packs from 18650 cells. Its 4S architecture makes it suitable for applications that need a higher voltage than 1S, 2S, or 3S battery configurations.

The combination of a 4S configuration and 40A-class current rating makes this board suitable for a variety of portable power, robotics, electronics, backup-power, and DIY battery applications, provided the actual load current remains within the board’s verified specifications.

Using a properly selected BMS can also simplify battery-pack design by providing a dedicated protection circuit between the cells and the external circuit.

Why Buy from Electroxbd?

• 100% Quality Tested Products
• Trusted Source for Reliable Electronic Parts
• Fast Delivery Across Bangladesh
• Competitive Pricing
• Quality Battery Management Products
• Dedicated Technical Support
• Suitable for DIY Battery Pack Builders
• Ideal for Students, Engineers, Technicians and Makers
• Nationwide Delivery Across Bangladesh

Frequently Asked Questions (FAQ)

What is the voltage of a 4S 18650 Li-ion battery pack?

A typical 4S Li-ion pack has a 14.8V nominal voltage and approximately 16.8V when fully charged.

What does 40A mean on this BMS?

The 40A designation indicates the board’s rated current class. The actual continuous current that can be safely handled depends on the PCB design, MOSFETs, wiring, connectors, temperature, and operating conditions.

Can I use this 4S BMS with LiFePO4 cells?

Not unless the particular BMS is specifically designed for LiFePO4 chemistry. Standard Li-ion and LiFePO4 cells have different voltage characteristics and require different protection thresholds.

Do I need a charger with this 4S BMS?

Yes. A BMS does not necessarily function as a complete charger. A standard 4S Li-ion pack requires an appropriate 16.8V CC/CV lithium-ion charger.

Can I use this BMS with 4S2P 18650 batteries?

Yes, provided the BMS is designed for the battery chemistry and the completed pack remains a 4S configuration. In a 4S2P pack, each series group contains two parallel cells.

Does this BMS balance the four cells?

Balancing functionality varies between 4S 40A BMS versions. Do not assume balancing is included unless it is specifically stated for the exact board.

Where can I buy a 4S 40A BMS 14.8V 18650 Lithium-Ion Battery BMS in Bangladesh?

You can buy the 4S 40A BMS 14.8V 18650 Lithium-Ion Battery BMS from Electroxbd, a trusted supplier of electronic components, batteries, modules, and battery-management products in Bangladesh.
