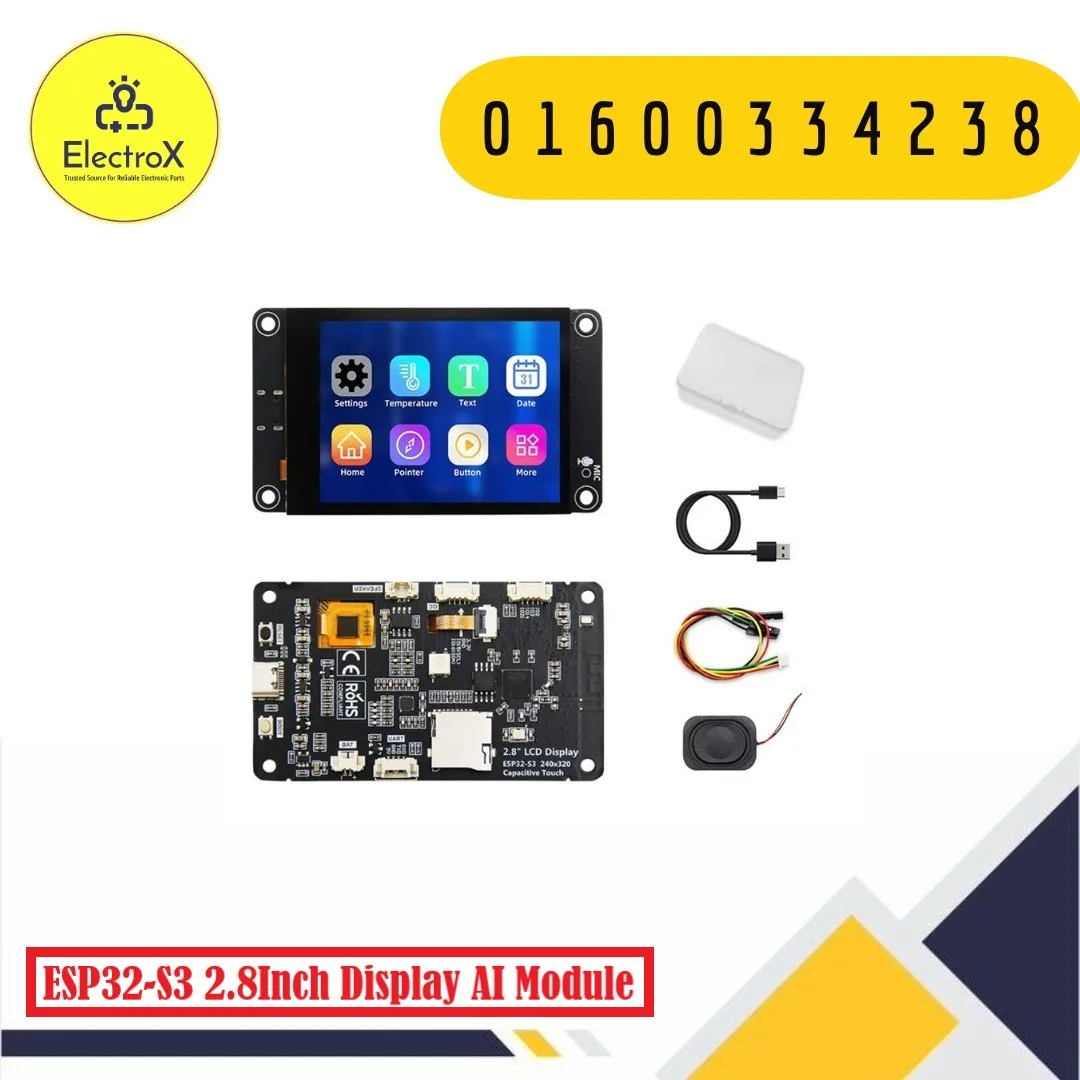

ESP32-S3 2.8 Inch Display Voice Chat AI Module Price in Bangladesh

The ESP32-S3 2.8 Inch Display Voice Chat AI Module is an integrated development platform designed for smart-display, voice-interaction, IoT, and AI-oriented projects. It combines an ESP32-S3 dual-core processor, 2.8-inch color TFT display, capacitive touch interface, wireless connectivity, microphone, and speaker support in a compact development board.

The ESP32-S3 uses a dual-core Xtensa LX7 processor capable of operating at up to 240MHz. The module also provides 2.4GHz Wi-Fi and Bluetooth connectivity, making it suitable for connected embedded applications.

The integrated 2.8-inch TFT display provides a 240 × 320 pixel resolution and uses an ILI9341V display controller on commonly documented versions. Models such as the ES3C28P include capacitive touch, allowing users to interact directly with graphical interfaces.

One of the key features of this board is its audio capability. A built-in microphone can capture voice input, while an external speaker can be connected for audio output. This makes the module suitable for voice-controlled interfaces, AI assistants, smart terminals, and interactive electronics.

The board supports Xiaozhi AI voice-chat functionality, providing a ready-made platform for experimenting with AI voice interaction. Depending on the firmware and software implementation, the device can connect to AI services and provide spoken interaction while displaying information on the screen.

The module is also designed with development and expansion in mind. It includes interfaces such as I²C and UART, a Micro TF card slot on documented versions, and support for an external 3.7V lithium battery with integrated charging management.

This combination of display, touch, wireless connectivity, audio, and processing makes the board considerably more versatile than a basic ESP32 development board. It can be used to build interactive dashboards, smart control panels, AI terminals, voice assistants, IoT interfaces, and educational projects.

What is ESP32-S3?

The ESP32-S3 is a dual-core microcontroller platform designed for embedded applications requiring wireless connectivity, processing capability, and support for AI-oriented workloads.

This module uses an ESP32-S3 with a maximum clock speed of 240MHz and provides Wi-Fi and Bluetooth connectivity. Documented N16R8 versions include 8MB OPI PSRAM and 16MB external Flash, providing additional memory resources for graphics, applications, and more demanding firmware.

Key Features

• ESP32-S3 dual-core processor
• Up to 240MHz processing speed
• 2.8-inch TFT color display
• 240 × 320 display resolution
• Capacitive touchscreen on touch-enabled versions
• 2.4GHz Wi-Fi
• Bluetooth connectivity
• Built-in microphone
• External speaker support
• AI voice-chat capability
• Xiaozhi AI support
• USB Type-C interface
• Micro TF card slot
• External lithium-battery support
• Integrated battery charging management
• RGB status indicator
• I²C interface
• UART interface
• Suitable for LVGL GUI development
• Compact integrated design

Technical Specifications

• Product Type: ESP32-S3 AI Development Module
• MCU: ESP32-S3
• CPU: Xtensa LX7 32-bit Dual-Core
• Maximum Clock: 240MHz
• ROM: 384KB
• SRAM: 512KB
• RTC SRAM: 16KB
• PSRAM: 8MB OPI on N16R8 versions
• Flash: 16MB external Flash on N16R8 versions
• Wi-Fi: 2.4GHz 802.11 b/g/n
• Bluetooth: Bluetooth 5.0 on documented versions
• Display: 2.8-inch IPS TFT
• Resolution: 240 × 320 pixels
• Display Driver: ILI9341V
• Display Interface: 4-wire SPI
• Touch: Capacitive touch on ES3C28P version
• Audio Input: Built-in microphone
• Audio Output: External speaker support
• USB: Type-C
• Expansion: I²C, UART and other GPIO interfaces
• Storage Expansion: Micro TF card
• Battery: External 3.7V lithium battery support
• AI Function: Xiaozhi AI voice chat support

Specifications can vary between board revisions and manufacturers, particularly regarding PSRAM, Flash, Bluetooth version, touch functionality, and included accessories.

2.8 Inch TFT Display

The integrated 2.8-inch TFT display provides a 240 × 320 pixel graphical interface.

The display can be used for:

• AI conversation screens
• Sensor dashboards
• IoT status information
• Menus
• Graphs
• Control panels
• Multimedia interfaces
• Device settings
• Custom LVGL interfaces

The documented display uses an ILI9341V controller and a four-line SPI interface connected to the ESP32-S3.

Capacitive Touchscreen

Touch-enabled versions provide a capacitive touchscreen, allowing users to interact with graphical interfaces directly.

Instead of using physical buttons for every function, developers can create:

• Touch buttons
• Sliders
• Menus
• Virtual keyboards
• Settings screens
• Interactive dashboards
• AI conversation controls

This makes the module useful for projects requiring a graphical user interface.

AI Voice Chat

The module supports Xiaozhi AI voice chat functionality. Its microphone provides voice input while the speaker interface provides audio output.

A typical voice-interaction workflow is:

User Voice → Microphone → ESP32-S3 / Network → AI Service → Audio Response → Speaker

At the same time, information such as conversation status, text responses, or controls can be displayed on the TFT screen.

The exact AI service, firmware, account requirements, and available functions depend on the software configuration loaded onto the board.

Wi-Fi and Bluetooth

The ESP32-S3 provides wireless connectivity for connected applications.

Wi-Fi can be used for:

• Cloud AI services
• IoT communication
• Web APIs
• Network dashboards
• Remote monitoring
• Internet-connected assistants

Bluetooth can be used for:

• Peripheral communication
• Wireless control
• Nearby device interaction
• Embedded Bluetooth projects

The documented board operates on the 2.4GHz Wi-Fi band.

Battery Support

The module can support an external 3.7V lithium battery on applicable versions and includes battery charging management circuitry. This can make the board suitable for portable applications.

A portable project could therefore combine:

Li-ion Battery → ESP32-S3 → TFT + Touch + Microphone + Speaker

Always verify the exact battery connector and charging specifications of the particular board before connecting a battery.

Micro TF Card

A Micro TF card slot is provided on documented versions, allowing additional storage for suitable applications.

Potential uses include:

• Configuration files
• Images
• Audio files
• Logs
• Data storage
• Project resources

LVGL Support

The board can be used with LVGL (Light and Versatile Graphics Library) for creating graphical user interfaces. This allows developers to design customized screens rather than relying only on basic text output.

LVGL can be useful for creating:

• Touch dashboards
• Smart-home interfaces
• AI assistant screens
• Sensor displays
• Control panels
• Menu systems

Applications

The ESP32-S3 2.8 Inch Display Voice Chat AI Module can be used for:

• AI voice assistants
• AI chatbot terminals
• Smart displays
• IoT control panels
• Smart-home interfaces
• Voice-controlled devices
• Interactive dashboards
• Educational AI projects
• Robotics interfaces
• Sensor monitoring
• Home automation
• Portable information terminals
• Embedded GUI projects
• Wi-Fi-connected devices
• Bluetooth projects
• AI experimentation
• Embedded-system development

Advantages

• Powerful ESP32-S3 processor
• Integrated display
• Touch interaction
• Wi-Fi and Bluetooth
• Built-in microphone
• External speaker support
• AI voice-chat capability
• USB Type-C interface
• Battery support
• Micro TF expansion
• LVGL compatibility
• Multiple peripheral interfaces
• Compact all-in-one design
• Suitable for advanced IoT and AI projects

Limitations

• AI voice functionality depends on compatible firmware and services.
• Internet-based AI features generally require network connectivity.
• Exact AI capabilities depend on the installed software.
• Different board revisions may have different memory, Bluetooth, touch, or peripheral specifications.
• The display is relatively small for complex graphical interfaces.
• External speaker requirements depend on the specific board version.
• Battery life depends on display brightness, Wi-Fi activity, audio usage, and battery capacity.
• It is a development platform rather than a complete standalone AI service.

Installation and Usage Tips

• Use a USB Type-C data cable when programming.
• Install the appropriate ESP32 board support in Arduino IDE or use the supported development environment.
• Select the correct ESP32-S3 board configuration before uploading firmware.
• Verify the exact board revision and memory configuration.
• Use the supplied or compatible display drivers for the correct display controller.
• Follow the manufacturer’s firmware instructions when installing AI voice-chat firmware.
• Use a compatible speaker with the correct electrical specifications.
• Do not connect an unsuitable battery to the battery connector.
• Verify battery polarity before powering the board.
• Keep the display and PCB protected from moisture.
• Use appropriate libraries for the touchscreen and display.
• For custom interfaces, LVGL can be used where supported.

ESP32-S3 vs Basic ESP32 Development Board

Why Choose ESP32-S3 2.8 Inch Display Voice Chat AI Module?

This module is a strong choice for projects where processing, wireless connectivity, display, touch, and voice interaction are required in a single development platform.

Instead of combining a separate ESP32 board, TFT display, touchscreen, microphone, speaker interface, and battery-management circuit, this module integrates many of these functions into one compact platform.

Its support for Xiaozhi AI voice chat also makes it particularly interesting for developers experimenting with AI-enabled embedded devices.

Why Buy from ELECTROXBD?

• Trusted Source for Reliable Electronic Parts
• Quality development boards and modules
• Competitive pricing
• Fast delivery across Bangladesh
• Suitable for AI and IoT projects
• Ideal for students, engineers, and makers
• Wide range of ESP32 products
• Technical assistance available
• Nationwide delivery across Bangladesh

Frequently Asked Questions (FAQ)

What is the ESP32-S3 2.8 Inch Display Voice Chat AI Module?

It is an integrated ESP32-S3 development board featuring a 2.8-inch TFT display, touch interface on applicable versions, microphone, speaker support, Wi-Fi, Bluetooth, and AI voice-chat capabilities.

Does this module support AI voice chat?

Yes. Documented versions support Xiaozhi AI voice chat functionality. The exact features depend on the firmware and AI service configuration.

Does it have a touchscreen?

Touch-enabled versions such as the ES3C28P include a capacitive touchscreen. Other versions, such as ES3N28P, may not include touch.

What is the display resolution?

The 2.8-inch TFT display has a 240 × 320 pixel resolution on the documented versions.

Does it have a microphone?

Yes. The board includes a built-in microphone for voice input.

Can I connect a speaker?

Yes. The documented versions provide an interface for an external speaker for audio playback.

Does it support Wi-Fi and Bluetooth?

Yes. The ESP32-S3 provides 2.4GHz Wi-Fi and Bluetooth connectivity, making the board suitable for connected IoT and AI applications.

Can I use this module with Arduino IDE?

ESP32-S3 boards can be developed using Arduino-compatible tools, although the exact display, touch, audio, and AI functionality may require the appropriate libraries, board configuration, and firmware. The module is also suitable for other ESP32 development environments.

Can I use a lithium battery with this board?

Applicable versions support an external 3.7V lithium battery and include battery charging management. Verify the exact board’s battery connector and specifications before connection.

What AI models can it use?

The AI capability depends on the installed firmware and connected services. The documented platform supports Xiaozhi AI voice chat and can be configured for AI-service integrations.
