Arduino Nano V3.0 Type-C USB Port Price in Bangladesh

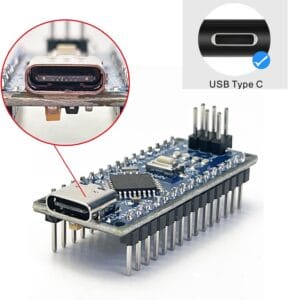

The Arduino Nano V3.0 Type-C USB Port is a compact Arduino-compatible development board based on the popular ATmega328P microcontroller. It provides the functionality of a traditional Nano-style development board while replacing the older USB connector with a convenient USB Type-C port.

Because of its small size, the Nano is widely used in projects where a full-size Arduino Uno would take up too much space. It is suitable for robotics, sensors, automation, IoT prototypes, data logging, LED control, motor control, embedded systems, and educational electronics projects.

The ATmega328P provides a familiar Arduino development environment, making the board suitable for beginners as well as experienced makers. Programs can be developed using the Arduino IDE and uploaded through the USB Type-C connection.

The board provides digital input/output pins, analog input pins, PWM-capable outputs, serial communication, SPI, and I²C interfaces. These features allow the Nano to communicate with a wide range of sensors, displays, modules, actuators, and other electronic components.

The USB Type-C interface is one of the most noticeable improvements compared with traditional Nano boards that use Mini-B or Micro-USB connectors. Type-C cables are widely available and the connector is reversible, making connection more convenient.

The board’s compact form factor also makes it useful for permanent embedded projects. It can be installed inside small enclosures, robots, control panels, sensor systems, and custom electronic devices.

Like other ATmega328P-based Arduino Nano boards, this board is intended primarily for 5V logic-level applications. When connecting external modules, users should verify the module’s voltage and logic-level requirements before making connections.

What is Arduino Nano V3.0?

The Arduino Nano V3.0 is a compact development-board design based on the ATmega328P microcontroller. It offers many of the same core capabilities as an Arduino Uno while using a smaller PCB.

The Nano is particularly useful when:

• PCB space is limited
• Multiple sensors are required
• A compact controller is needed
• A project needs several digital I/O pins
• USB programming is required

This Type-C version retains the familiar Nano architecture while providing a modern USB connector.

Key Features

• ATmega328P microcontroller
• Compact Nano form factor
• USB Type-C programming interface
• Arduino IDE compatible
• Digital input/output pins
• Analog input pins
• PWM outputs
• UART serial communication
• I²C communication
• SPI communication
• 5V operating logic
• Suitable for breadboard projects
• Suitable for embedded applications
• Compatible with a wide range of Arduino libraries
• Useful for robotics and automation
• Suitable for DIY electronics

Technical Specifications

• Board Type: Arduino Nano V3.0 Compatible
• Microcontroller: ATmega328P
• Architecture: 8-bit AVR
• Operating Voltage: 5V
• Input Voltage: Typically 7–12V through VIN, depending on board implementation
• USB Connector: USB Type-C
• Digital I/O: 22 pins, depending on board pinout/counting convention
• Analog Input: 8 pins on common Nano-compatible Type-C versions
• PWM: Available on compatible digital pins
• Communication: UART / I²C / SPI
• Flash Memory: 32KB
• SRAM: 2KB
• EEPROM: 1KB
• Clock Speed: 16MHz
• Programming: USB Type-C
• Board Form Factor: Nano

Note: This product is an Arduino Nano V3.0-compatible board. Exact USB-to-serial chip, pin arrangement, voltage regulator specifications, and some board details can vary between manufacturers.

USB Type-C Interface

The Type-C connector provides a convenient way to connect the Nano to a computer for programming and serial communication.

Compared with older USB connectors, Type-C offers several practical advantages:

• Reversible plug orientation
• Widely available cables
• Compact connector
• Convenient connection to modern laptops and computers
• Suitable for programming and serial communication

The USB connection does not mean the board becomes a USB-C Power Delivery device. It is primarily used as the board’s USB interface.

ATmega328P Microcontroller

The ATmega328P is the main microcontroller used by the Nano V3.0 architecture.

It provides:

• 8-bit AVR processing
• 16MHz clock
• 32KB Flash
• 2KB SRAM
• 1KB EEPROM
• Digital I/O
• Analog-to-digital conversion
• Hardware timers
• UART
• SPI
• I²C-compatible TWI

This combination makes the ATmega328P suitable for a large variety of embedded control applications.

Programming with Arduino IDE

The board can be programmed using the Arduino IDE.

A typical workflow is:

1. Connect the Nano to a computer using a USB Type-C cable.
2. Open Arduino IDE.
3. Select the appropriate Nano-compatible board.
4. Select the correct COM port.
5. Write or open an Arduino sketch.
6. Compile the program.
7. Upload it to the board.
8. Disconnect USB after programming if the project uses another power source.

Depending on the exact board’s USB-to-serial chip and bootloader configuration, the appropriate processor or bootloader option may need to be selected in Arduino IDE.

Pin Functionality

The Nano provides several types of connections.

Digital I/O

Digital pins can be used for:

• LEDs
• Buttons
• Relays
• Digital sensors
• Buzzer modules
• Motor-control interfaces

Analog Inputs

Analog input pins allow the board to measure varying voltage signals from devices such as:

• Potentiometers
• Light sensors
• Temperature sensors
• Gas sensors
• Analog output modules

PWM

PWM-capable pins can be used for applications such as:

• LED brightness control
• Servo control
• Motor-speed control
• Generating variable-duty-cycle signals

I²C

The I²C interface is useful for connecting:

• OLED displays
• LCD modules
• RTC modules
• Sensors
• EEPROMs

SPI

SPI can be used with:

• SD card modules
• TFT displays
• RF modules
• Other high-speed peripherals

UART

The hardware serial interface can communicate with:

• GPS modules
• GSM modules
• Bluetooth modules
• Serial displays
• Other microcontrollers

Applications

The Arduino Nano V3.0 Type-C can be used for:

• Line-following robots
• Obstacle-avoidance robots
• Sensor systems
• Home automation
• LED controllers
• Temperature monitoring
• Data logging
• Motor control
• Servo projects
• Smart devices
• IoT prototypes
• Mini CNC projects
• RC projects
• Robotics
• Electronic instruments
• Educational projects
• Automation systems
• Custom embedded controllers

Advantages

• Compact size
• Familiar ATmega328P platform
• USB Type-C connectivity
• Easy Arduino IDE programming
• Large Arduino ecosystem
• Supports many common sensors and modules
• Multiple communication interfaces
• Suitable for breadboard prototyping
• Low power requirements for many projects
• Useful for both beginners and advanced users
• Easy to integrate into compact projects

Limitations

• Limited processing power compared with modern ESP32-class boards.
• Limited RAM and Flash compared with newer microcontrollers.
• 5V logic should be considered when connecting 3.3V modules.
• USB Type-C does not necessarily provide USB-C PD functionality.
• Exact USB-to-serial chip varies by manufacturer.
• Not all pins can perform every peripheral function simultaneously.
• Maximum current per I/O pin must not be exceeded.

Arduino Nano vs Arduino Uno

The Nano is a good choice when the functionality of an ATmega328P board is required in a smaller footprint.

Installation and Usage Tips

• Use a good-quality USB Type-C data cable for programming.
• Select the correct Nano-compatible board in Arduino IDE.
• Check the correct COM port before uploading.
• If uploading fails, verify the board’s bootloader setting and USB-to-serial driver.
• Do not apply more voltage than the board’s input specifications allow.
• Check the operating voltage of every external module.
• Avoid drawing excessive current directly from GPIO pins.
• Use a transistor, MOSFET, or driver module when controlling higher-current loads.
• Keep wiring organized when using many sensors.
• Disconnect power before making major wiring changes.

Why Choose Arduino Nano V3.0 Type-C?

The Arduino Nano V3.0 Type-C USB Port combines the familiar ATmega328P Arduino platform with a compact board layout and modern USB Type-C connector.

It is an excellent option when you need a small microcontroller board for a project but don’t require the higher processing power or wireless connectivity of newer ESP32 boards.

For students, hobbyists, robotics developers, and electronics enthusiasts, it provides an accessible platform for building and experimenting with embedded systems.

Why Buy from ELECTROXBD?

• Trusted Source for Reliable Electronic Parts
• Quality-tested development boards
• Competitive pricing
• Fast delivery across Bangladesh
• Wide range of Arduino-compatible products
• Suitable for students and engineers
• Useful for robotics and DIY projects
• Technical assistance available
• Nationwide delivery

Frequently Asked Questions (FAQ)

What microcontroller does the Arduino Nano V3.0 use?

The Arduino Nano V3.0 is based on the ATmega328P microcontroller.

Does this Nano have a USB Type-C port?

Yes. This version uses a USB Type-C connector for programming and USB serial communication.

Can I program this board using Arduino IDE?

Yes. The board is designed to be programmed using the Arduino development environment and is compatible with the Arduino Nano ecosystem.

What voltage does the Arduino Nano operate at?

The ATmega328P Nano platform normally operates at 5V logic. Always check the exact board’s power-input specifications before connecting an external supply.

Can I use Arduino Nano instead of Arduino Uno?

For many ATmega328P-based projects, yes. However, the boards have different physical layouts and pin configurations, so wiring may need to be adapted.

Can I use sensors with this Arduino Nano?

Yes. The Nano can interface with digital and analog sensors, as well as I²C, SPI, and UART modules.

Does this board have Wi-Fi or Bluetooth?

No. The ATmega328P Nano does not have built-in Wi-Fi or Bluetooth. External modules can be added when wireless connectivity is required.

Where can I buy Arduino Nano V3.0 Type-C in Bangladesh?

You can buy the Arduino Nano V3.0 Type-C USB Port from ELECTROXBD, a trusted source for Arduino boards, electronic components, sensors, modules, and robotics parts in Bangladesh.

Common Questions:
What is the price of Arduino Nano V3.0 Type C USB Port in Bangladesh?
The latest price of Arduino Nano V3.0 Type C USB Port in Bangladesh is 350BDT.
Where to buy Arduino Nano V3.0 Type C USB Port in Bangladesh?
You can buy the Arduino Nano V3.0 Type C USB Port at the best price from ElectroXBD in Bangladesh.
