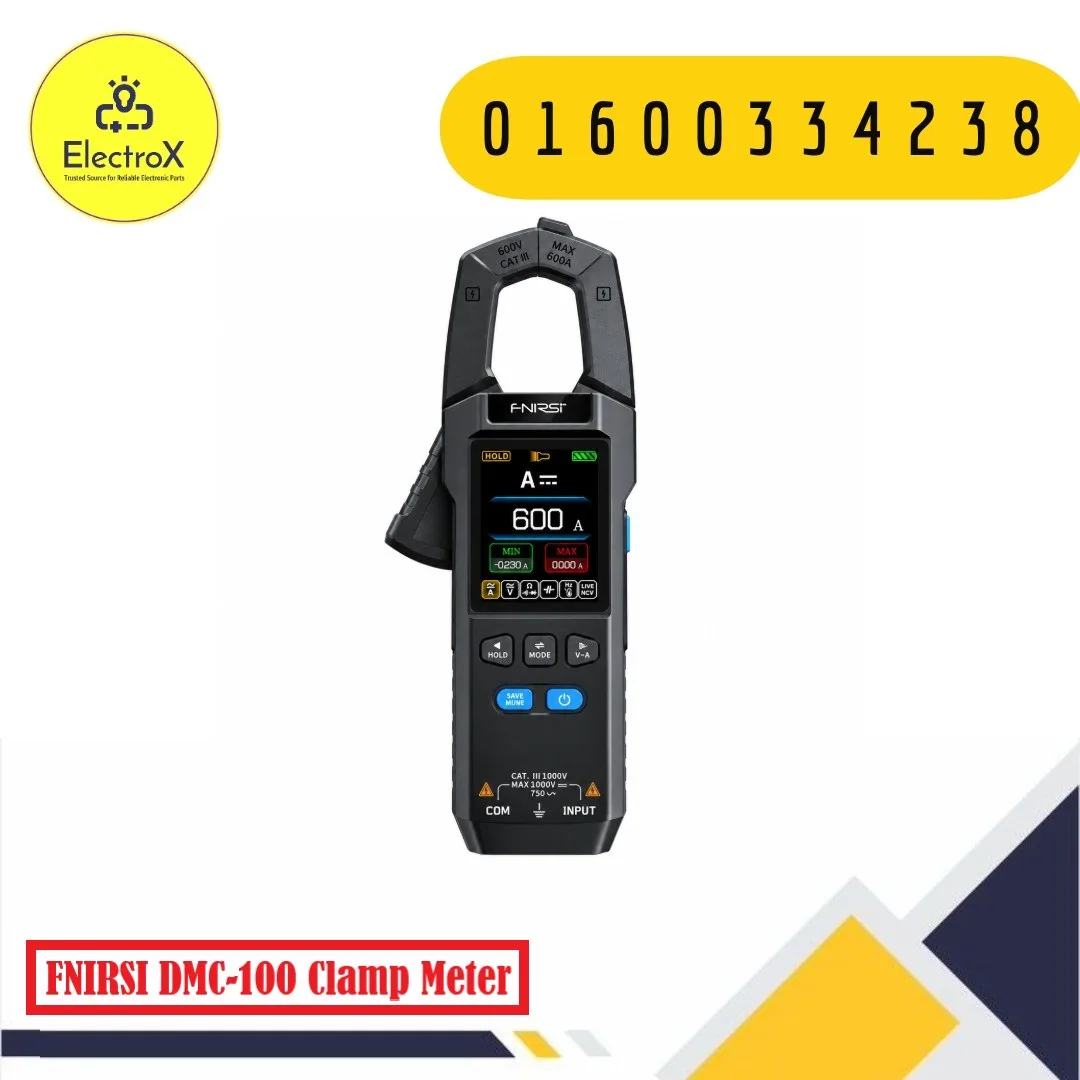

FNIRSI DMC-100 Clamp Type Digital Multimeter Price in Bangladesh

The FNIRSI DMC-100 Clamp Type Digital Multimeter is a versatile intelligent electrical testing instrument designed for measuring voltage, current and several other electrical parameters in a convenient handheld format. Unlike a conventional multimeter that generally requires direct connection for current measurement, its clamp design allows current measurement around a suitable conductor without requiring the conductor to be disconnected.

The DMC-100 combines a 10,000-count True RMS measurement system with a 2.0-inch color TFT display. According to the manufacturer, it supports voltage measurement up to 750V AC and current measurement up to 600A AC/DC. It also includes resistance, capacitance, frequency, temperature, diode and continuity testing, making it useful for electronics work, electrical troubleshooting, laboratory activities, maintenance and DIY projects.

Its graphical interface provides waveform and measurement information in an easy-to-read format. The meter also includes additional functions such as NCV detection, data hold, minimum/maximum values, data storage, zeroing and power measurement.

What is a Clamp Multimeter?

A clamp multimeter is an electrical measuring instrument that combines the functions of a digital multimeter with a hinged current-sensing jaw. The jaw can be placed around a suitable conductor to measure current without physically disconnecting the conductor.

This makes clamp meters particularly useful when working with wiring, power systems, electrical equipment and electronic projects where convenient current measurement is important.

Key Features

• 10,000-count high-resolution measurement
• True RMS measurement
• AC and DC current measurement
• Current measurement up to 600A
• AC voltage measurement up to 750V
• DC voltage measurement up to 999.9V
• 2.0-inch 240 × 320 color TFT display
• Maximum clamp jaw opening of 25mm
• Resistance measurement
• Capacitance measurement
• Frequency measurement
• Temperature measurement
• Diode testing
• Continuity testing
• Non-contact voltage detection (NCV)
• LIVE wire detection
• Waveform display
• Power measurement
• Data hold and zeroing
• Minimum and maximum value functions
• Built-in flashlight
• Rechargeable 3.7V 1500mAh battery
• USB Type-C charging
• Automatic power-off function
• Firmware upgrade support
• Stores up to 30 groups of measurement data

Technical Specifications

The manufacturer specifies multiple measurement ranges for voltage, current, resistance, capacitance, frequency and temperature. Exact accuracy varies according to the selected measurement function and range.

Working Principle

The FNIRSI DMC-100 uses conventional digital measurement circuitry together with a clamp-style current sensing mechanism. For clamp current measurement, the conductor is positioned inside the meter’s jaw so the instrument can detect the magnetic field associated with current flow.

For voltage, resistance, capacitance, frequency, diode and continuity measurements, the supplied test probes are used with the appropriate meter function.

The True RMS measurement capability is particularly useful for measuring AC signals that may not have a simple sinusoidal waveform. The color display presents numerical readings and, where supported, graphical waveform information.

The meter also provides NCV functionality for detecting the presence of AC voltage without making direct electrical contact.

Applications

The FNIRSI DMC-100 can be useful for:

• Electronics laboratory work
• Electrical troubleshooting
• Equipment maintenance
• Power supply testing
• DC power system testing
• Automotive electrical diagnostics
• Solar and renewable-energy projects
• Arduino and embedded-system projects
• Industrial maintenance
• Home electrical diagnostics
• DIY electronics projects
• Educational laboratories
• Measuring current in suitable wiring
• Checking voltage, resistance and continuity
• Temperature measurement with the supplied probe

Its combination of clamp current measurement and conventional multimeter functions makes it a practical general-purpose testing instrument for technicians, engineers, students and electronics enthusiasts.

Advantages

Convenient Current Measurement

The clamp mechanism allows current measurements to be made without disconnecting a suitable conductor from the circuit.

Wide Measurement Capability

The DMC-100 combines current and voltage measurement with resistance, capacitance, frequency, temperature, diode and continuity testing.

Clear Color Display

The 2.0-inch 240 × 320 TFT display provides a clear interface for numerical readings and graphical information.

True RMS Measurement

True RMS technology can provide more meaningful AC measurements for many non-sinusoidal waveforms than basic average-responding meters.

Portable Rechargeable Design

The built-in 3.7V 1500mAh battery and USB Type-C charging make the meter convenient for mobile testing work.

Limitations

The maximum 25mm jaw opening means that very large cables or conductors may not fit inside the clamp. Measurement accuracy also depends on the selected function, range, conductor position and measurement conditions.

The stated maximum voltage and current ratings should not be interpreted as permission to work on hazardous electrical systems without appropriate training, protective equipment and supervision.

Installation / Usage Tips

1. Select the correct measurement function before testing.
2. For clamp current measurement, place only the intended conductor inside the jaw.
3. Keep the conductor positioned appropriately within the clamp for reliable readings.
4. Use the supplied test leads for voltage, resistance and other probe-based measurements.
5. Check the meter’s selected range and input requirements before connecting to a circuit.
6. Inspect probes, insulation and connectors before use.
7. Keep the meter within its specified measurement limits.
8. Do not touch exposed conductive portions of test probes during measurements.
9. Follow appropriate electrical safety procedures when measuring higher voltages.
10. Recharge the internal battery when necessary and avoid using the instrument while it is charging, as specified by the manufacturer.

Why Choose FNIRSI DMC-100?

The FNIRSI DMC-100 Clamp Type Digital Multimeter is a strong choice for users who want more than a basic handheld multimeter. Its combination of clamp-based current measurement, True RMS capability, color TFT display, waveform viewing, temperature measurement, capacitance, frequency, resistance and NCV detection makes it a versatile testing solution.

For electronics students, technicians, engineers, laboratory users and DIY enthusiasts, having multiple measurement functions in one portable instrument can reduce the need to carry several separate testing devices.

Why Buy from ElectroXBD?

ElectroXBD is a trusted source for reliable electronic parts, test equipment and technical tools in Bangladesh. We aim to provide genuine and useful products for electronics students, engineers, technicians, laboratories, hobbyists and professional users.

You can contact ElectroXBD for product availability, pricing and technical information.

ElectroXBD
Website: electroxbd.com
Mobile/WhatsApp: 01600334238
Email: electroxbd@gmail.com
Shop Address: H#1/1, Opposite of RH Chhatrabash, Vodra-Talaimari Road, Rajshahi

Frequently Asked Questions (FAQ)

1. What is the FNIRSI DMC-100 used for?

The FNIRSI DMC-100 is a multifunctional clamp digital multimeter used for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature and other electrical parameters.

2. What is the maximum current measurement of the DMC-100?

The DMC-100 supports AC and DC current measurement up to 600A, according to the manufacturer’s specifications.

3. What is the maximum voltage measurement of the FNIRSI DMC-100?

The meter supports DC voltage measurement up to 999.9V and AC voltage measurement up to 750V, with the exact range depending on the measurement mode.

4. Does the FNIRSI DMC-100 support True RMS?

Yes. The DMC-100 is specified as a 10,000-count True RMS intelligent clamp meter, making it suitable for a broad range of electrical and electronics testing applications.

5. Does the DMC-100 have NCV detection?

Yes. The FNIRSI DMC-100 includes non-contact voltage (NCV) detection as well as LIVE wire detection.

6. Can the DMC-100 measure temperature?

Yes. It supports temperature measurement from approximately -55°C to 1300°C, using the appropriate temperature probe.

7. What size conductor can fit in the clamp?

The maximum jaw opening is specified as approximately 25mm. Actual usable conductor size depends on its shape and the available space around it.

8. Does the DMC-100 have a rechargeable battery?

Yes. It uses a built-in 3.7V 1500mAh lithium battery and supports USB Type-C charging at 5V/1A.

9. Does the DMC-100 measure capacitance and frequency?

Yes. The meter includes both capacitance and frequency measurement functions, along with resistance, diode and continuity testing.

10. Where can I buy the FNIRSI DMC-100 in Bangladesh?

You can buy the FNIRSI DMC-100 Clamp Type Digital Multimeter from ElectroXBD, a trusted electronics components and test-equipment supplier in Bangladesh.
