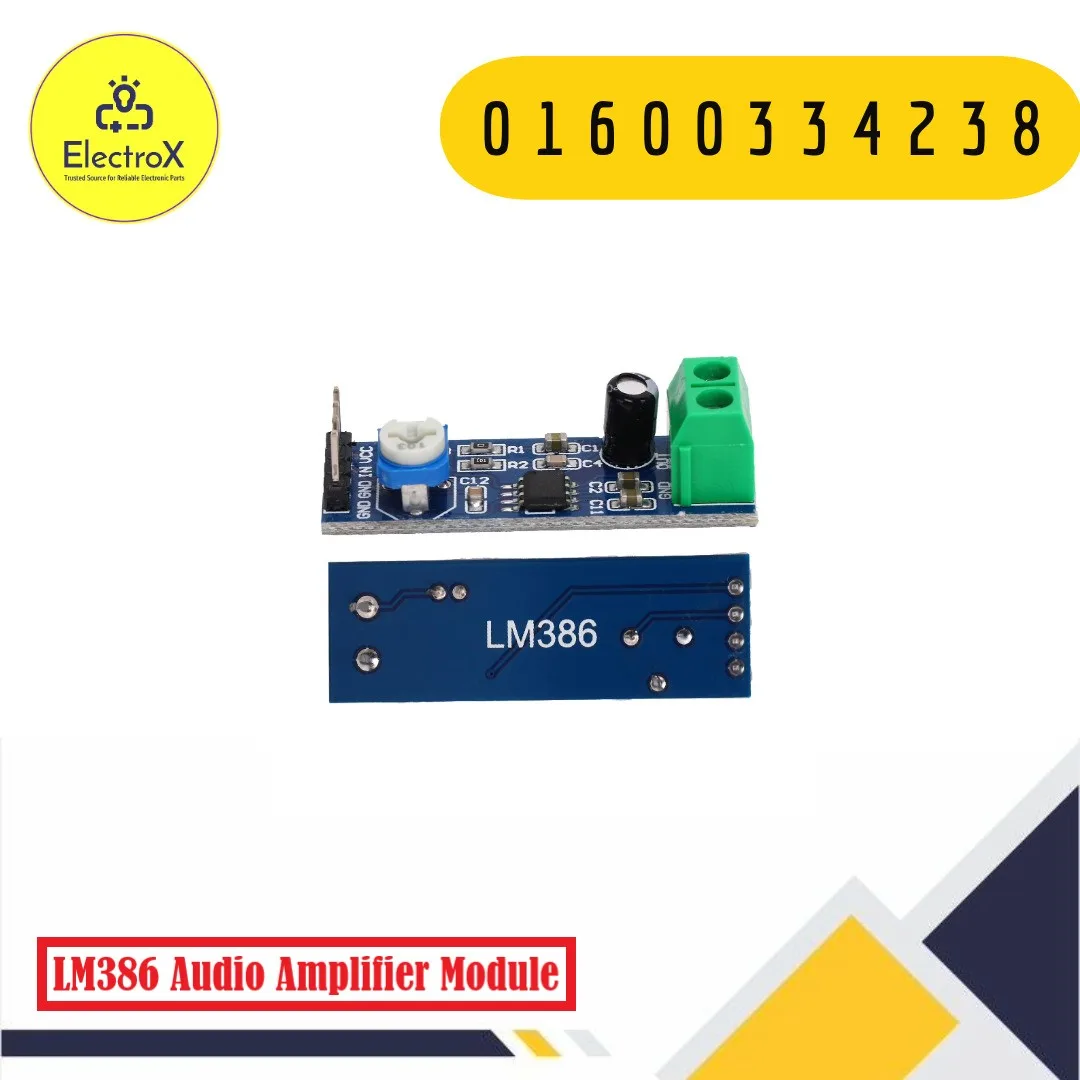

LM386 Audio Amplifier Module

The LM386 Audio Amplifier Module is a compact audio amplification board designed for increasing the strength of low-level audio signals so they can be used to drive a small speaker. Based on the widely used LM 386 low-voltage audio power amplifier IC, this module provides a convenient solution for electronics projects where a simple, compact audio amplifier is required.

Instead of building an amplifier circuit from individual components, a module integrates the LM 386 and its supporting components onto a small PCB. This makes it useful for students, hobbyists, Arduino users, robotics enthusiasts, and electronics engineers working on sound-related projects.

The module can be used with suitable audio sources such as microphones with appropriate preamplification, audio-output circuits, microcontroller-based sound systems, and other low-level analog audio sources. The amplified output can then be connected to a compatible small speaker.

Its compact size makes the LM 386 module particularly useful where PCB space is limited. It can be incorporated into alarms, voice-output projects, electronic toys, educational circuits, portable devices, and experimental audio systems.

Because the exact module design can vary between manufacturers, the input voltage range, gain configuration, connector arrangement, potentiometer availability, and output capability should be checked against the specific module being purchased.

What is the LM386?

The LM386 is a low-voltage audio power amplifier IC designed for applications requiring amplification of relatively small audio signals. It is popular in educational electronics and DIY projects because it can operate from a relatively low supply voltage and requires only a small number of external components in a basic circuit.

The LM 386 can provide voltage gain to an input audio signal and deliver an amplified output suitable for driving a small speaker.

The module version places the IC and associated components on a ready-made PCB, simplifying circuit assembly and making the amplifier easier to integrate into a project.

Key Features

• Based on the popular LM386 audio amplifier IC
• Compact and lightweight design
• Suitable for low-voltage audio applications
• Mono audio amplification
• Designed for small speaker applications
• Convenient module-based construction
• Easy to integrate into DIY electronics projects
• Suitable for Arduino and microcontroller projects with appropriate audio signals
• Useful for educational audio experiments
• Requires fewer external components than a discrete amplifier design

Technical Specifications

Exact operating voltage, gain, output power, input/output connector arrangement, and speaker impedance depend on the specific LM386 module version.

Working Principle

The LM386 amplifier module receives a relatively weak audio signal through its input. This signal may originate from an audio circuit, microphone preamplifier, sensor-based sound system, or another suitable analog source.

The LM 386 IC increases the amplitude of the incoming signal using its internal amplifier circuitry. The resulting higher-level audio signal is provided at the output, where it can be connected to a suitable small speaker.

The module’s gain is determined by the LM 386 configuration and any external components included on the particular PCB. Some module designs include a potentiometer or other components for adjusting the input level or gain.

Since the LM 386 is intended for low-voltage audio applications, it is particularly convenient for battery-powered and embedded electronics projects.

Good power-supply filtering and appropriate grounding can help reduce unwanted noise and interference in practical audio circuits.

Applications

The LM 386 Audio Amplifier Module can be used in a wide range of suitable electronics projects, including:

• Arduino audio projects
• DIY speaker projects
• Voice-output circuits
• Electronic toys
• Small alarms and sound indicators
• Robotics projects
• Portable audio experiments
• Educational electronics laboratories
• Microcontroller sound projects
• Audio signal experiments
• Intercom-style prototypes
• Small electronic instruments
• Sensor-based sound systems

Advantages

One of the main advantages of the LM 386 module is its simplicity. The amplifier IC and supporting circuitry are already assembled on a PCB, reducing the amount of circuit design and wiring required.

Its small size also makes it convenient for compact projects. The module can be connected to an appropriate audio source and speaker without requiring the designer to build the complete amplifier stage from individual components.

The LM 386 is also a widely recognized amplifier IC, making it useful for learning basic audio amplification concepts and experimenting with analog electronics.

Limitations

The LM 386 module is intended for relatively small audio applications and should not be treated as a high-power speaker amplifier. Its output capability depends on the supply voltage, speaker impedance, PCB design, and thermal conditions.

Audio quality can also be affected by the quality of the input signal, power supply, grounding, wiring, and surrounding electromagnetic interference.

Different LM 386 modules may use different PCB layouts and supporting components, so specifications such as supply range, gain, connectors, and output performance should be verified for the particular version.

Installation / Usage Tips

Connect the module only to a suitable DC power supply within the specification of the particular module. Observe correct power polarity before switching on the circuit.

Connect the audio input to a suitable low-level analog audio source and connect the output to a compatible speaker. Avoid connecting a speaker with an unsuitable impedance or using a load beyond the module’s intended capability.

Keep audio input wiring reasonably short and away from noisy switching circuits where possible. Good grounding and adequate power-supply filtering can help reduce unwanted hum and noise.

If the module includes an adjustable potentiometer, increase the level gradually rather than immediately setting it to maximum. Excessive input level can result in clipping and distorted audio.

Why Choose LM386 Audio Amplifier Module?

The LM386 Audio Amplifier Module is a practical choice for projects that need a compact and simple mono audio amplifier. Its ready-made PCB eliminates much of the complexity associated with constructing an amplifier circuit from individual components.

It is especially useful for students and hobbyists learning about audio amplification, as well as for Arduino, robotics, alarm, and other embedded electronics projects where a small speaker needs to be driven from a low-level audio signal.

Why Buy from ElectroXBD?

ElectroXBD supplies electronic components, Arduino products, sensors, development modules, robotics parts, battery products, and other electronics accessories for students, hobbyists, engineers, project builders, and institutions across Bangladesh.

The LM386 Audio Amplifier Module is a convenient component for DIY audio projects, Arduino-based sound systems, educational experiments, and compact electronics applications.
