MPU6050 3 Axis Gyroscope & Accelerometer Sensor Price in Bangladesh

The MPU6050 3 Axis Gyroscope & Accelerometer Sensor is a compact 6-axis motion sensing module designed for measuring acceleration and rotational movement in electronic and embedded systems. It combines a three-axis accelerometer and a three-axis gyroscope in a single sensor, making it useful for projects that require information about movement, orientation, tilt, vibration, and rotation.

The module is commonly used with development platforms such as Arduino, ESP32, Raspberry Pi, and other microcontrollers that support the I2C communication protocol. Its compact size and digital interface make it particularly suitable for robotics, drone projects, balancing systems, motion-controlled devices, educational experiments, and various DIY electronics applications.

Overview of MPU6050

The MPU6050 integrates a 3-axis accelerometer and a 3-axis gyroscope, providing six degrees of motion sensing. The accelerometer measures changes in linear acceleration along the X, Y, and Z axes, while the gyroscope measures angular velocity around these three axes.

By combining information from both sensing elements, a microcontroller can determine changes in movement and orientation. This makes the MPU6050 useful in applications where a simple tilt or motion switch is not sufficient and more detailed motion data is required.

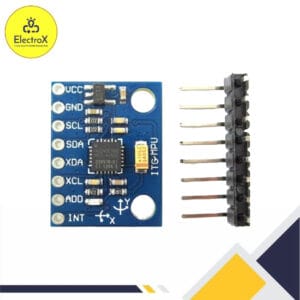

Many commercially available breakout boards use the MPU6050 IC together with supporting components and header pins, creating an easy-to-connect development module.

What Is a 6-Axis Motion Sensor?

A 6-axis motion sensor combines three acceleration axes and three rotational axes.

The three accelerometer axes measure linear acceleration along X, Y, and Z, while the three gyroscope axes measure rotational speed around X, Y, and Z. Together, these measurements provide useful information about how an object moves and rotates in three-dimensional space.

Key Features

• Integrated 3-axis accelerometer and 3-axis gyroscope
• Six degrees of motion sensing
• Digital I2C communication interface
• Selectable accelerometer measurement ranges
• Selectable gyroscope measurement ranges
• Compact breakout-module design
• Suitable for Arduino and ESP32 projects
• Useful for robotics and motion-control applications
• Suitable for drone and stabilization projects
• Useful for tilt, vibration, and movement measurement
• Supports real-time motion data acquisition
• Easy integration with microcontroller-based systems
• Suitable for educational electronics experiments

Technical Specifications

Note: Specifications such as supply voltage and some electrical characteristics can vary between MPU6050 breakout-board versions. Check the markings or seller specification for the exact module before designing a final circuit.

Working Principle

The MPU6050 uses MEMS-based sensing technology to detect acceleration and rotational movement. The accelerometer senses changes in linear acceleration along three perpendicular axes. Gravity can also be detected by the accelerometer, which allows a system to estimate static tilt under suitable conditions.

The gyroscope measures angular velocity around the X, Y, and Z axes. When the sensor rotates, the gyroscope produces corresponding digital measurement data.

The MPU6050 communicates these measurements to a microcontroller through the I2C interface. A controller such as an Arduino or ESP32 can periodically read the sensor registers and process the acceleration and gyroscope values.

For applications requiring smoother orientation estimation, software can combine accelerometer and gyroscope measurements using sensor-fusion techniques. This can provide more stable motion information than relying on either sensing element alone.

Applications

The MPU6050 is widely used in electronics, robotics, automation, and embedded-system projects. Common applications include:

• Arduino motion sensing projects
• ESP32 motion monitoring
• Self-balancing robot projects
• Robot orientation detection
• Drone and quadcopter systems
• Camera stabilization experiments
• Tilt and inclination measurement
• Gesture and motion-controlled projects
• Vibration monitoring
• Robotics navigation experiments
• Motion data logging
• Educational IMU experiments
• Wearable electronics prototypes
• Vehicle movement monitoring
• DIY stabilization systems

Advantages

The main advantage of the MPU6050 is that it combines two important motion sensors in one compact device. Instead of using separate accelerometer and gyroscope modules, a project can obtain both types of measurements from a single sensor.

Its digital I2C interface also reduces the amount of analog signal-conditioning hardware required between the sensor and microcontroller. The selectable measurement ranges allow developers to choose an appropriate range depending on the motion being measured.

The module is also popular in educational and hobbyist electronics, which means it is widely supported by development environments, example projects, and community resources.

Limitations

The MPU6050 is designed for motion sensing rather than highly precise industrial navigation. Gyroscope measurements can accumulate error over time because of drift, while accelerometer readings can be affected by vibration and external acceleration.

For accurate orientation tracking, appropriate calibration and sensor-fusion techniques may be required. The performance of the complete system also depends on the quality of the breakout board, power supply, mechanical mounting, software processing, and environmental conditions.

Installation and Usage Tips

Connect the module to a compatible microcontroller using the I2C interface. On many development boards, the SDA and SCL pins are used for communication, although their physical pin locations depend on the specific controller.

Before using the sensor in a precision application, allow the system to initialize properly and consider calibrating the accelerometer and gyroscope. Secure mechanical mounting is important because unwanted vibration can affect motion measurements.

Make sure the module’s supply voltage is compatible with your particular breakout board. Different MPU6050 boards can use different onboard regulator and logic-level arrangements, so avoid assuming that every board has identical electrical specifications.

Why Choose the MPU6050 Sensor?

The MPU6050 is a practical choice when a project needs both acceleration and rotational-motion data without requiring two separate sensors. Its compact design, digital interface, multiple measurement ranges, and compatibility with popular microcontroller platforms make it suitable for a wide range of electronics projects.

For students, robotics enthusiasts, embedded developers, and makers, it provides an accessible way to experiment with inertial measurement and three-dimensional motion sensing.

Why Buy from ElectroXBD?

ElectroXBD is a trusted source for reliable electronic parts in Bangladesh, supplying components and modules for Arduino, ESP32, robotics, embedded systems, and DIY electronics projects.

The MPU6050 3 Axis Gyroscope & Accelerometer Sensor is suitable for both learning and practical prototyping. Customers in Rajshahi and across Bangladesh can source electronics components from ElectroXBD.

ElectroXBD
Trusted Source for Reliable Electronic Parts
Office: H#1/1, Opposite of RH Chhatrabash, Vodra-Talaimari Road, Rajshahi
Website: electroxbd.com
Contact: 01600334238

Frequently Asked Questions (FAQ)

1. What is the MPU6050 sensor used for?

The MPU6050 is used to measure acceleration and rotational movement along three axes. It is commonly used in robotics, drones, balancing systems, motion detection, and embedded electronics projects.

2. Is MPU6050 compatible with Arduino?

Yes. MPU6050 breakout modules are commonly used with Arduino boards through the I2C communication interface. Appropriate libraries and example programs are widely available for development.

3. Can MPU6050 work with ESP32?

Yes. The MPU6050 can be interfaced with an ESP32 using its I2C interface. The exact SDA and SCL pins depend on the ESP32 board and software configuration.

4. What is the difference between the accelerometer and gyroscope in MPU6050?

The accelerometer measures linear acceleration along the X, Y, and Z axes, while the gyroscope measures angular velocity or rotational movement around those axes.

5. Is MPU6050 a 6-axis sensor?

Yes. The MPU6050 is commonly described as a 6-axis motion sensor because it combines a 3-axis accelerometer and a 3-axis gyroscope.

6. What communication interface does MPU6050 use?

The MPU6050 commonly communicates with a microcontroller through the I2C digital interface.

7. Can MPU6050 be used in a self-balancing robot?

Yes. It can provide acceleration and rotational-motion data that a control system can use as part of a self-balancing robot. Additional software processing and suitable control algorithms are required for stable operation.

8. Where can I buy MPU6050 in Bangladesh?

You can buy the MPU6050 3 Axis Gyroscope & Accelerometer Sensor from ElectroXBD, a trusted electronics components supplier in Bangladesh.

Common Questions:
What is the price of MPU6050 3 Axis Gyroscope & Accelerometer Sensor in Bangladesh?
The latest price of MPU6050 3 Axis Gyroscope & Accelerometer Sensor in Bangladesh is 230BDT.
Where to buy MPU6050 3 Axis Gyroscope & Accelerometer Sensor in Bangladesh?
You can buy the MPU6050 3 Axis Gyroscope & Accelerometer Sensor at the best price from ElectroXBD in Bangladesh.
