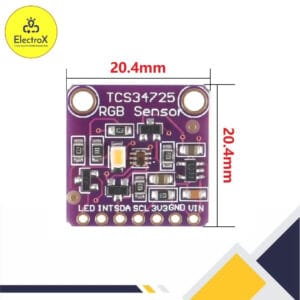

TCS34725 Color Sensor RGB Sensor Board

The TCS34725 Color Sensor RGB Sensor Board is a highly advanced color recognition module designed to detect and measure color across the visible spectrum. With its integration of a powerful TCS34725 sensor, this board is capable of accurately capturing the red, green, and blue (RGB) components of light, making it an essential tool for applications requiring precise color detection and differentiation. Whether used in robotics, product quality control, or interactive installations, the TCS34725 Color Sensor Board offers a robust solution for a wide range of color-sensing needs.

Overview

At the heart of the TCS34725 Color Sensor RGB Sensor Board lies the TCS34725 sensor, a sophisticated color sensor developed by AMS (formerly TAOS). This sensor is renowned for its high sensitivity, accurate color measurement, and excellent ambient light rejection, making it one of the most reliable color sensors available on the market. The sensor is equipped with an IR (infrared) blocking filter, which eliminates the effects of IR light that can interfere with accurate color detection. This ensures that the sensor only measures the visible light spectrum, providing true and precise color readings.

The TCS34725 sensor operates by analyzing the intensity of light in the red, green, and blue regions of the visible spectrum. It converts this light intensity into digital values that can be easily read by a microcontroller via the I2C communication protocol. This makes the sensor highly compatible with popular development platforms such as Arduino, Raspberry Pi, and other microcontroller systems. The I2C interface allows for easy integration into existing projects, with the ability to communicate with other sensors and modules within the same system.

Key Features

1. High Accuracy: The TCS34725 sensor is designed to deliver precise color measurements, with a wide dynamic range that allows it to detect colors even in low-light conditions. The sensor’s 16-bit ADC (analog-to-digital converter) ensures high-resolution data output, making it capable of distinguishing subtle variations in color. This high level of accuracy makes the TCS34725 ideal for applications where color differentiation is critical, such as in industrial automation, quality control, and consumer electronics.
2. Integrated IR Filter: One of the standout features of the TCS34725 sensor is its integrated IR blocking filter. This filter is crucial for ensuring that the sensor only measures visible light, eliminating the potential for interference from infrared light sources. Infrared light can often skew color readings, especially in environments with mixed lighting conditions. By filtering out IR light, the TCS34725 provides more accurate and reliable color data, making it suitable for environments with varying lighting conditions.
3. Onboard White LED: The TCS34725 Color Sensor RGB Sensor Board includes an onboard white LED, which provides consistent illumination for the sensor. This is particularly useful in applications where ambient light is insufficient or inconsistent, as the LED ensures that the sensor always has a reliable light source to measure colors. The LED can be controlled via a microcontroller, allowing users to turn it on or off as needed, which is useful for conserving power in battery-operated projects.
4. I2C Communication Interface: The TCS34725 sensor communicates with a microcontroller using the I2C protocol, a widely used communication standard that allows for easy integration with various microcontroller platforms. The I2C interface supports multiple devices on the same bus, enabling the sensor to be part of a larger network of sensors and modules. The sensor’s I2C address can also be configured, allowing for flexibility in system design and preventing address conflicts in complex projects.
5. Wide Spectral Range: The TCS34725 sensor is capable of detecting light across the entire visible spectrum, from approximately 400nm (violet) to 700nm (red). This wide spectral range ensures that the sensor can accurately measure a broad range of colors, making it suitable for applications that require detailed color analysis. The sensor’s ability to detect light intensity across different wavelengths allows it to provide a comprehensive color profile, which can be used in various color-sorting and color-matching tasks.

Applications

The TCS34725 Color Sensor RGB Sensor Board is widely used in a variety of applications that require accurate color sensing. In industrial automation, the sensor can be used for product quality control, where it ensures that items meet specific color standards. It is also commonly used in robotics, where it can help robots recognize and respond to different colors, enabling tasks such as line-following or color-based sorting.

In consumer electronics, the TCS34725 is used in devices that require ambient light sensing and color calibration, such as smartphones and monitors. The sensor’s ability to provide accurate color data makes it an essential component in any application where color differentiation is important.

Conclusion

The TCS34725 Color Sensor RGB Sensor Board is a powerful and versatile color sensing solution that offers high accuracy, reliable performance, and easy integration. With its advanced features, including an IR blocking filter, onboard white LED, and I2C communication interface, this sensor board is well-suited for a wide range of applications, from industrial automation to consumer electronics. Whether used in standalone projects or as part of a larger system, the TCS34725 provides the precise color measurement capabilities needed to bring color-based projects to life.

Common Questions:
What is the price of TCS34725 Color Sensor RGB Sensor Board in Bangladesh?
The latest price of TCS34725 Color Sensor RGB Sensor Board in Bangladesh is 180BDT.
Where to buy TCS34725 Color Sensor RGB Sensor Board in Bangladesh?
You can buy the TCS34725 Color Sensor RGB Sensor Board at the best price from ElectroXBD in Bangladesh.

Tutorial: Click Here
