TB6612FNG Dual DC Stepper Motor Driver Module

TB6612FNG Dual DC Stepper Motor Driver Module – Compact, Efficient Motor Control

The TB6612FNG Dual Motor Driver Module is a compact, powerful, and efficient motor driver board that supports precise control of two DC motors or one stepper motor. Designed for Arduino, ESP32, Raspberry Pi, and other microcontroller-based platforms, this module is an ideal solution for hobbyists, students, and professionals working on robotics, automation, and motion control projects.

This motor driver module is based on Toshiba’s TB6612FNG chip, known for its low power consumption, built-in protection features, and stable operation. Whether you’re building a line-following robot, a small CNC machine, or a DIY smart car, the TB6612FNG offers the control and efficiency you need.

✅ Why Choose the TB6612FNG Module?

Compared to the traditional L298N driver, the TB6612FNG offers higher current efficiency, lower heat generation, and compact size. It provides output current of up to 1.2A continuous (3.2A peak) per channel, making it suitable for most low-voltage DC motors and stepper motors.

The built-in thermal shutdown and overcurrent protection ensure safety during prolonged operations. With a small form factor and easy-to-use pin headers, this module fits into tight spaces and integrates seamlessly with breadboards or PCBs.

🔍 Key Features at a Glance

• Dual H-Bridge Motor Driver

• Compact and Lightweight Design

• Low Power Dissipation

• High Output Efficiency

• Built-in Protection Mechanisms

🔧 Technical Specifications

• Driver IC: Toshiba TB6612FNG

• Operating Voltage: 2.5V – 13.5V

• Output Current: 1.2A continuous, 3.2A peak per channel

• Control Logic Voltage: 2.7V – 5.5V

• PWM Frequency: Up to 100 kHz

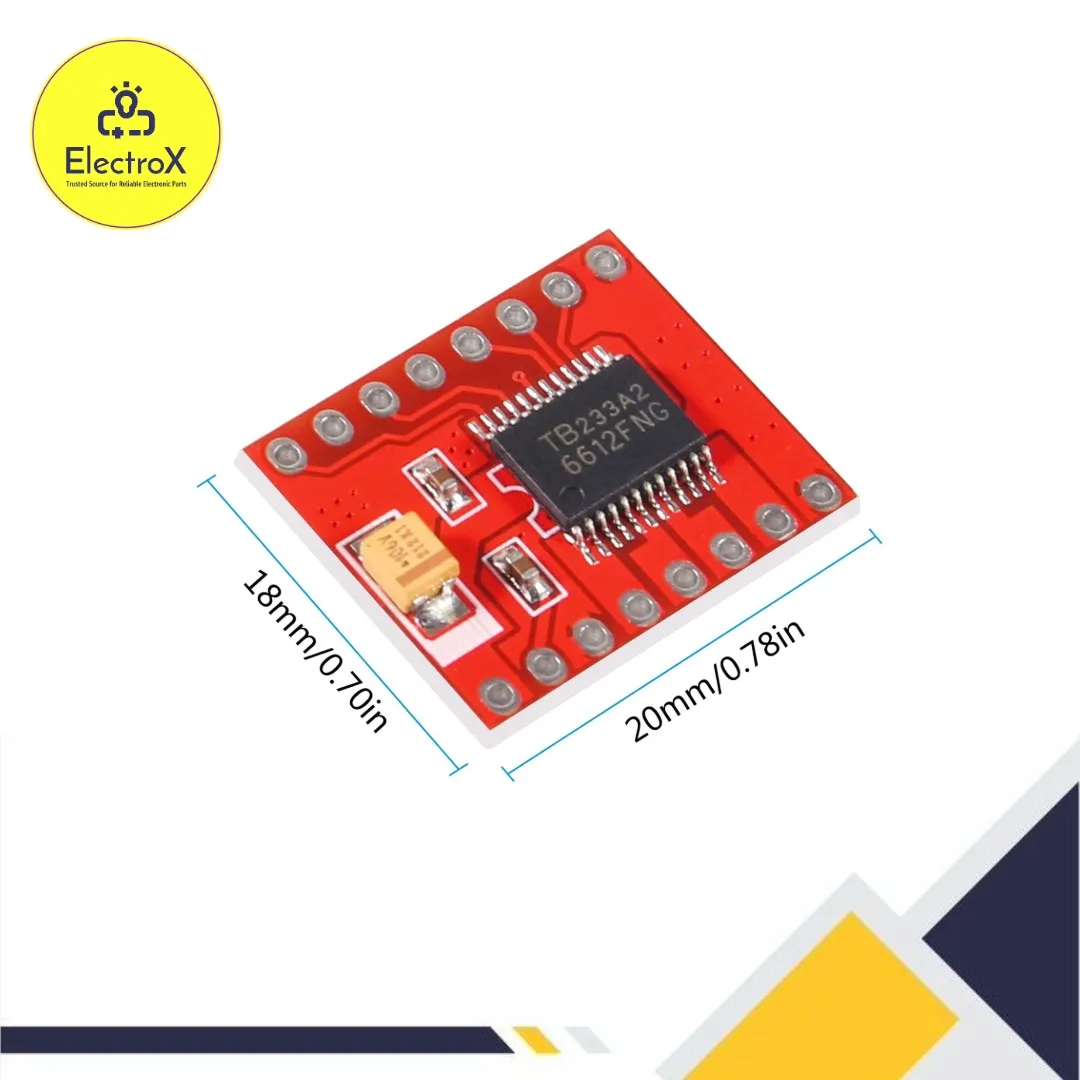

• Dimensions: 20mm x 20mm (approx.)

🛠️ Applications of TB6612FNG Module

The TB6612FNG module is widely used in various electronic and robotic projects that require precise motor control:

• DIY Smart Car Projects

• Line Following Robots

• 2WD & 4WD Robotic Vehicles

• Stepper Motor Based CNC Machines

• Conveyor Belt Systems

• Automated Gate or Arm Systems

• Educational Robotics Kits

• Solar Trackers and Camera Sliders

⚡ Working Principle

The TB6612FNG motor driver uses two H-bridge circuits to control the rotation and direction of two DC motors or one stepper motor. Each H-Bridge allows the polarity of the motor connection to be flipped, enabling forward and reverse rotation.

Pulse Width Modulation (PWM) signals from a microcontroller are used to vary motor speed, while digital signals control direction. The module’s STBY pin allows the user to enable or disable the driver to save power. Internal protection features make the driver highly reliable and durable.

✅ Advantages of TB6612FNG Module

• Compact Size: Easy to fit into small robotic designs

• High Current Efficiency: Handles higher loads than L298N

• Low Heat Generation: Reduced power loss during operation

• Built-in Safety Features: Protects against overcurrent and overheating

• Breadboard Friendly: Standard pin headers for easy integration

💡 Tips for Use

• Always add heat sinks or cooling if using high current motors continuously

• Keep the STBY pin HIGH to enable motor operation

• Use external power supply for motors (do not power from Arduino directly)

• Use flyback diodes if motors are highly inductive

• Use separate power and logic grounds for stability

📦 Package Includes

• 1 x TB6612FNG Dual Motor Driver Module

• 1 x Male Header Pins (unsoldered)

🔧 Compatible Microcontrollers

• Arduino UNO, Mega, Nano, Leonardo

• ESP8266, ESP32

• STM32 Boards

• Raspberry Pi 3/4/Zero

• Teensy & Other Microcontrollers

🛍️ Why Buy TB6612FNG from Electroxbd?

When you shop at Electroxbd, you’re not just getting a product — you’re getting peace of mind. We offer:

• ✅ 100% Genuine & Tested Modules

• ✅ Competitive Prices in Bangladesh

• ✅ Fast Delivery in Dhaka, Rajshahi, Chattogram & Nationwide

• ✅ Dedicated WhatsApp Support at 01600334238

• ✅ Trusted Online Store at www.electroxbd.com

🌐 Start Building Your Robot Today!

Upgrade your robotics and automation projects with the TB6612FNG Motor Driver Module. Whether you’re designing a smart car, building an autonomous robot, or working on industrial motor control, this compact module delivers powerful performance with safety and efficiency.

Order now from Electroxbd and experience hassle-free electronics shopping in Bangladesh!
