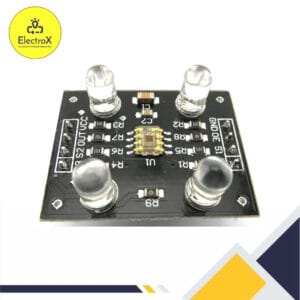

TCS3200 Color Recognition Sensor

The TCS3200 Color Recognition Sensor is a highly versatile and reliable color detection module widely used in various applications requiring accurate color measurement and recognition. Built around the TCS3200 RGB sensor chip, this module offers a robust solution for detecting and distinguishing between different colors by converting light intensity into frequency output. Whether integrated into robotics, industrial automation, or educational projects, the TCS3200 provides consistent and precise color recognition capabilities.

Overview

The TCS3200 sensor is based on an array of photodiodes, each with specific color filters (red, green, blue, and clear). This 8×8 photodiode array forms the core of the sensor, allowing it to detect the intensity of light in each of these color channels. The TCS3200 then converts these light intensities into a square wave output with a frequency directly proportional to the intensity of the detected color. This frequency output can be easily read and processed by a microcontroller, making it a suitable choice for projects where accurate color differentiation is required.

Key Features

1. Programmable Color Filters: The sensor includes 64 photodiodes, with 16 photodiodes dedicated to each color (red, green, and blue), and 16 photodiodes left unfiltered (clear). The sensor allows for the selection of specific color filters or a combination of them, enabling the user to focus on specific color channels or measure the overall intensity of light. This programmability makes the TCS3200 adaptable to a wide range of color detection tasks, whether distinguishing between primary colors or identifying subtle differences in shades.
2. Wide Operating Voltage Range: The TCS3200 Color Recognition Sensor operates within a voltage range of 2.7V to 5.5V, making it compatible with a variety of microcontroller platforms, including popular ones like Arduino, Raspberry Pi, and others. This broad operating voltage ensures that the sensor can be easily integrated into existing projects without the need for additional power regulation, simplifying the design and development process.
3. High Output Flexibility: The sensor provides a square wave output where the frequency is proportional to the intensity of the detected color. This output can be adjusted to one of three preset frequency scales (100%, 20%, or 2%) using the onboard S0 and S1 pins. This flexibility allows users to optimize the sensor’s performance for different light conditions, whether operating in a bright environment or detecting subtle color differences in low light. The sensor’s ability to adjust its output frequency scale ensures that it can maintain accuracy across a wide range of applications.
4. Onboard Light-to-Frequency Converter: This sensor module integrates a light-to-frequency converter that directly converts the detected light intensity into a frequency output. This eliminates the need for complex analog-to-digital conversion, as the sensor’s output can be directly interpreted by digital systems. The onboard converter simplifies the process of reading and interpreting the sensor’s data, making it easier for developers to integrate the TCS3200 into their projects without requiring extensive knowledge of analog signal processing.
5. Compact and Easy-to-Use Module: The TCS3200 comes in a compact module that includes the sensor chip, necessary resistors, and connectors for easy integration. The module is designed to be user-friendly, with clear pin labeling and a standard interface that requires minimal setup. This ease of use makes the sensor suitable for both beginner and advanced users, whether used in educational settings, hobby projects, or professional applications. Its small footprint allows it to be incorporated into space-constrained designs without compromising on functionality.

Applications

The TCS3200 Color Recognition Sensor is widely employed in various fields where color detection is crucial. In robotics, the sensor is used for line-following robots that detect and follow colored lines on a surface. It is also used in sorting machines that categorize objects based on color, making it a valuable tool in manufacturing and quality control processes. Additionally, the sensor is used in medical devices for colorimetric analysis, where it helps in determining the concentration of substances based on color changes in chemical reactions.

In educational environments, this sensor is popular for teaching students about color theory, sensor technology, and microcontroller programming. Its straightforward interface and reliable performance make it an ideal component for hands-on learning and experimentation.

Conclusion

The TCS3200 Color Recognition Sensor is a powerful and adaptable color detection module suitable for a wide range of applications. Its programmable color filters, flexible output, and easy-to-use design make it an excellent choice for projects requiring precise color measurement and recognition. Whether used in industrial automation, robotics, or educational projects, the TCS3200 delivers consistent and accurate performance, making it a trusted component in the field of color sensing technology.

Common Questions:
What is the price of TCS3200 Color Recognition Sensor in Bangladesh?
The latest price of TCS3200 Color Recognition Sensor in Bangladesh is 480BDT.
Where to buy TCS3200 Color Recognition Sensor in Bangladesh?
You can buy the TCS3200 Color Recognition Sensor at the best price from ElectroXBD in Bangladesh.

How to use? Click Here
