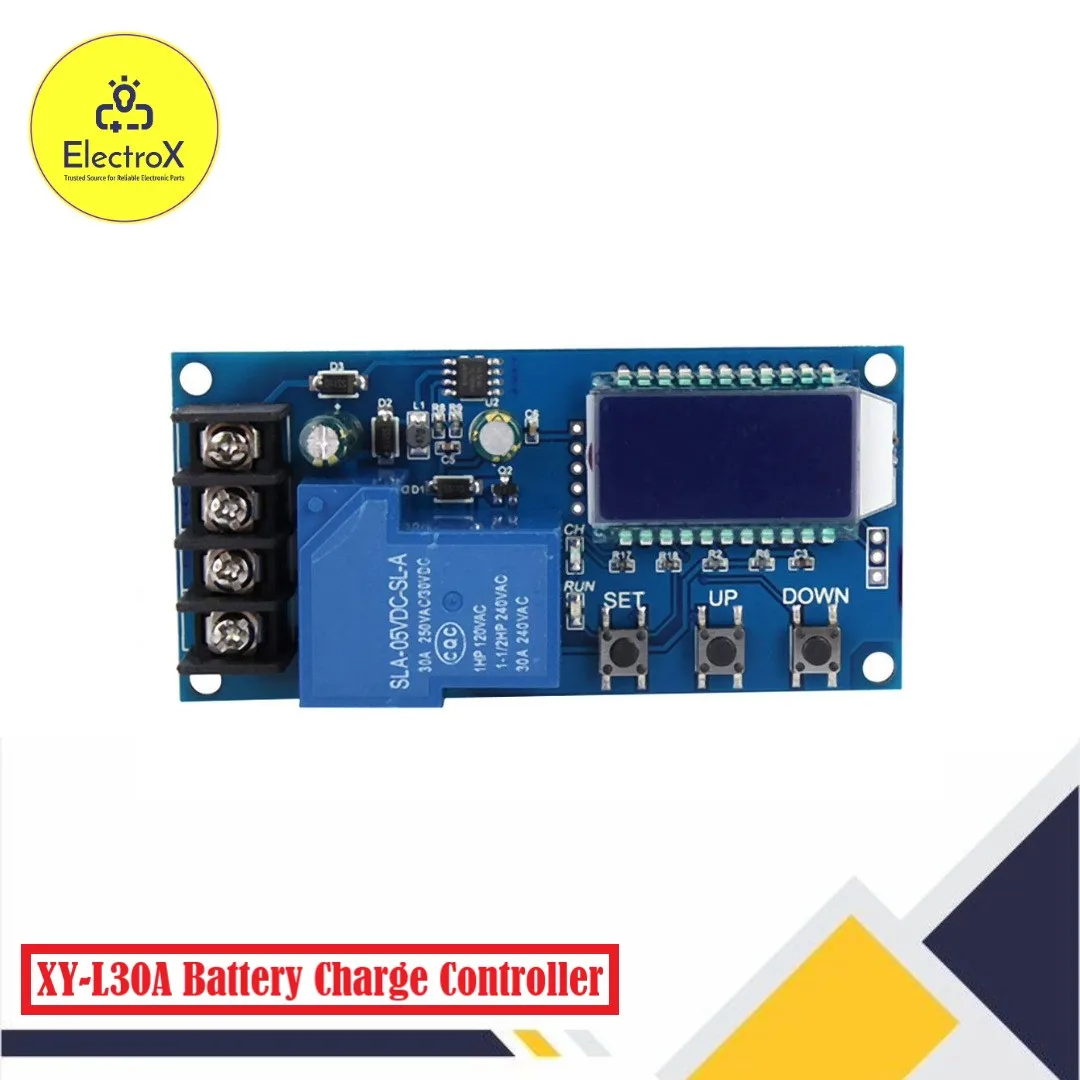

XY-L30A 6–60V 30A Battery Charge Control Module

The XY-L30A 6–60V 30A Battery Charge Control Module is a high-current, intelligent battery charging controller designed for safe, efficient, and automated battery charging. This module is widely used in DIY power systems, solar charging setups, inverter projects, electric vehicles, and battery backup systems.

With a wide input voltage range from 6V to 60V and a maximum current handling of up to 30A, the XY-L30A is suitable for both low-power and high-power battery applications. Its digital display allows real-time monitoring of voltage, charging status, and cutoff settings, making it easy to configure even for beginners.

Key Features

• Wide input voltage range

• High current handling up to 30A

• Digital voltage display

• Adjustable charge cutoff voltage

• Automatic charging control

• Supports multiple battery types

• Relay-based output control

• Compact and robust PCB design

• Overcharge protection support

• Easy installation and setup

Technical Specifications

Input Voltage Range: 6V to 60V DC
Maximum Load Current: 30A
Control Type: Voltage-based charging control
Display Type: Digital LED display
Operating Mode: Automatic ON/OFF
Battery Compatibility: Lithium, Lead Acid, AGM, Gel
Accuracy: High voltage detection accuracy
Operating Temperature: Standard industrial range
Mounting Type: PCB mount
Applications: Battery charging and protection

Working Principle

The XY-L30A module works by monitoring the battery voltage continuously. When the battery voltage is below the user-defined lower threshold, the module activates charging. Once the battery reaches the set upper cutoff voltage, the module automatically disconnects the charging source.

This automatic control prevents overcharging, increases battery lifespan, and improves overall system safety. The built-in relay ensures reliable switching even under high current loads.

Supported Battery Types

This module is compatible with a wide range of batteries, including:

• Lithium-ion batteries

• Lithium iron phosphate batteries

• Lead acid batteries

• AGM batteries

• Gel batteries

This versatility makes it suitable for most battery-based projects.

Digital Display and User Interface

The onboard digital display shows real-time voltage readings and system status. Users can easily set:

• Charging start voltage

• Charging stop voltage

• Relay activation behavior

This ensures precise control without external controllers or microcontrollers.

High Current Capability

With a 30A current rating, the XY-L30A can handle:

• Large battery banks

• High-power chargers

• Solar charging systems

• Inverter battery setups

This makes it ideal for demanding power applications where standard low-current modules fail.

Applications

The XY-L30A is widely used in:

• DIY battery charger projects

• Solar battery charging systems

• Inverter and UPS systems

• Electric vehicle battery packs

• Power backup systems

• Laboratory power management

• Renewable energy storage

• Industrial battery charging

• Home energy solutions

• Educational electronics projects

Advantages

• Protects batteries from overcharging

• Increases battery service life

• Eliminates manual charging control

• Supports high current loads

• Easy to configure and operate

• Reliable and stable operation

Safety and Reliability

The module provides stable and reliable performance when used within rated limits. Proper wiring, correct polarity, and adequate heat dissipation are recommended for long-term operation under high current loads.

Installation Guidelines

• Ensure correct input voltage polarity

• Use thick wires for high current paths

• Set cutoff voltages before use

• Avoid exceeding 30A load current

• Provide ventilation for heat dissipation

Compatibility with Power Sources

This module works well with:

• DC power supplies

• Solar panels with regulators

• DC adapters

• Inverter output DC lines

This flexibility allows seamless integration into existing systems.

Educational and DIY Benefits

This module is excellent for:

• Learning battery management concepts

• Understanding voltage-based control

• DIY renewable energy projects

• Engineering and technical training

Limitations

The XY-L30A is a voltage-based controller and does not perform current-controlled charging. For sensitive lithium packs, a dedicated BMS is still recommended.

Why Choose XY-L30A Battery Charge Controller

• High current capacity

• Wide voltage compatibility

• Clear digital display

• Reliable relay switching

• Cost-effective solution

Why Buy from Electroxbd

• Genuine and tested modules

• Competitive pricing

• Fast delivery across Bangladesh

• Technical support available

• Trusted Source for Reliable Electronic Parts

Buy XY-L30A 6–60V 30A Battery Charge Control Module in Bangladesh

Order the XY-L30A 6–60V 30A Battery Charge Control Module today from Electroxbd for safe, efficient, and automated battery charging solutions.
