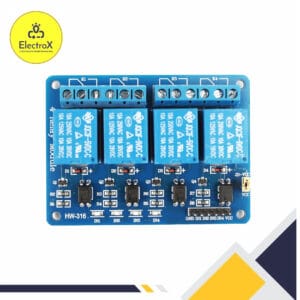

4 Channel Relay Module

The 4 Channel Relay Module is a high-quality, versatile electronic component designed for switching high-voltage devices safely using low-power microcontrollers like Arduino, Raspberry Pi, and ESP8266. It provides an efficient way to control AC and DC appliances, making it ideal for home automation, robotics, industrial applications, and IoT projects.

Features of the 4 Channel Relay Module

• High Voltage Control: Supports both AC and DC switching, making it suitable for diverse applications.
• Low Power Activation: Requires only a small current from the microcontroller to operate.
• Optocoupler Isolation: Ensures high safety and protection against voltage spikes.
• Indicator LEDs: Each relay has a dedicated LED to show switching status.
• Standard Interface: Compatible with popular microcontrollers and development boards.

Technical Specifications

• Relay Voltage: 5V DC (operating voltage)
• Current Capacity: Can handle up to 10A at 250V AC or 30V DC
• Trigger Voltage: 3.3V to 5V logic level (compatible with most MCUs)
• Isolation: Optocoupler for better safety and noise reduction
• Number of Channels: 4 independent relay channels
• Relay Lifespan: Over 100,000 switching operations
• Pin Configuration: Includes VCC, GND, IN1, IN2, IN3, and IN4
• Operating Temperature: -40°C to 85°C
• Board Material: High-quality PCB with durable soldering
• Mounting: Comes with pre-drilled holes for easy installation

Applications of 4 Channel Relay Module

This relay module is widely used in various applications such as:

1. Home Automation

• Control lights, fans, and household appliances remotely.
• Automate smart home systems with IoT devices.

2. Industrial Automation

• Manage industrial equipment, motors, and machinery.
• Integrate into factory automation systems.

3. Robotics and DIY Projects

• Create smart robotic systems with relay-controlled actuators.
• Automate switching mechanisms for custom projects.

4. IoT and Smart Control

• Works seamlessly with ESP8266, ESP32, and Raspberry Pi.
• Integrate with cloud-based automation systems.

Size & Weight

• Module Dimensions: 73mm x 50mm x 18mm
• Weight: Approximately 55g

How to Use the 4 Channel Relay Module

1. Power Connection: Connect VCC and GND to a 5V power source.
2. Signal Input: Connect the control pins IN1, IN2, IN3, and IN4 to a microcontroller.
3. Relay Activation: Send a HIGH signal (3.3V to 5V) to switch on a relay.
4. Load Connection: Connect AC or DC loads to the relay terminals.
5. Testing: Observe the LED indicators for relay switching confirmation.

Why Choose This Relay Module?

• Reliable Performance: Works efficiently with a variety of control systems.
• Compact Design: Fits easily into DIY and professional projects.
• Durable Build: Long-lasting operation with high relay lifespan.
• Easy Integration: Plug-and-play with minimal wiring required.

Final Thoughts

The 4 Channel Relay Module is a must-have for electronics enthusiasts, DIYers, and professionals. Whether you’re building a home automation system, designing robotic applications, or implementing industrial automation, this module ensures efficient, safe, and reliable switching.

Get your 4 Channel Relay Module today from ElectroXBD and enhance your electronics projects with seamless control and automation!

Common Questions:
What is the price of 4 Channel Relay Module in Bangladesh?
The latest price of 4 Channel Relay Module in Bangladesh is 250BDT.
Where to buy 4 Channel Relay Module in Bangladesh?
You can buy the 4 Channel Relay Module at the best price from ElectroXBD in Bangladesh.

Tutorial: Click Here
