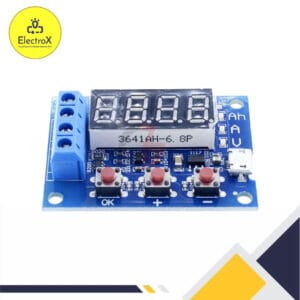

ZB2L3 HW586 Battery Capacity Tester Module

The ZB2L3 HW586 Battery Capacity Tester Module is a powerful and versatile tool designed to measure the capacity of various rechargeable batteries accurately. It is commonly used by hobbyists, electronics enthusiasts, and professionals to test battery performance, ensuring batteries meet expected specifications. This module is suitable for testing a wide range of battery types, including 18650 lithium-ion cells, Li-ion batteries, NiMH batteries, and lead-acid batteries.

Key Features of the ZB2L3 HW586 Battery Capacity Tester Module

1. Accurate Capacity Measurement: The primary function of the ZB2L3 HW586 module is to measure the actual capacity of a battery through a constant current discharge test. The module discharges the battery at a specified constant current while monitoring its voltage. When the battery’s voltage drops below a pre-set threshold (which varies depending on the type of battery), the test stops, and the module calculates the battery’s total capacity in milliampere-hours (mAh). This feature is essential for verifying whether a battery meets its rated capacity or has degraded over time due to usage.
2. Compatibility with Various Batteries: The ZB2L3 HW586 module supports testing a variety of battery chemistries, including lithium-ion (Li-ion) batteries, nickel-metal hydride (NiMH) batteries, and lead-acid batteries. It is most commonly used with 18650 lithium-ion cells, but it can also be used to test other types of rechargeable batteries, making it a highly versatile tool. Whether you’re working with small cylindrical batteries or larger lead-acid batteries, this tester can accommodate your needs.
3. Real-Time Data Display: The module is equipped with a clear LCD display that shows real-time data during the discharge test. The display provides information such as the battery’s voltage, the discharge current, and the total capacity discharged in mAh. This data allows users to monitor the battery’s performance throughout the test, providing valuable insight into its behavior under load. The real-time feedback helps identify batteries that may have issues, such as voltage drops or capacity loss, before they are put into critical use.
4. Adjustable Discharge Current: The ZB2L3 HW586 module allows users to set the discharge current according to their specific testing needs. The discharge current is adjustable up to 3A, providing flexibility for testing different types of batteries. For instance, lower-capacity batteries can be tested at lower discharge currents to ensure accurate results, while higher-capacity batteries can be tested at higher discharge currents to simulate real-world conditions.
5. Over-Discharge Protection: The module is designed with built-in over-discharge protection to ensure the safety of the battery during the testing process. When the battery’s voltage drops below the pre-set cut-off voltage, the module automatically stops the discharge test. This protection feature prevents the battery from being over-discharged, which could potentially damage the battery or reduce its overall lifespan. This safety feature is particularly important when working with lithium-ion batteries, which are sensitive to deep discharge conditions.

Applications of the ZB2L3 HW586 Battery Capacity Tester Module

1. Battery Quality Testing: The ZB2L3 HW586 module is ideal for testing the quality and performance of new and used batteries. It is commonly used by individuals who build battery packs or refurbish batteries to ensure the cells meet their rated capacity before being put into use.
2. Battery Reconditioning: For those involved in battery reconditioning, this module is a crucial tool. By measuring the capacity of batteries before and after reconditioning, users can assess the effectiveness of the reconditioning process and determine whether a battery is suitable for continued use.
3. Research and Development: In research and development settings, the ZB2L3 HW586 is used to evaluate battery performance under various discharge conditions. This data can help manufacturers and developers design better battery systems and improve the efficiency and longevity of their products.
4. DIY Electronics Projects: Hobbyists and DIY enthusiasts often use this module to test batteries in their custom electronics projects. Whether building custom power supplies, battery-powered gadgets, or portable devices, the ZB2L3 HW586 ensures that the batteries being used can handle the required load and provide sufficient power.
5. Battery Maintenance: Regular battery maintenance and testing are essential for ensuring the safety and reliability of battery-powered devices. The ZB2L3 HW586 makes it easy to monitor the health of batteries over time, allowing users to identify batteries that may need replacement before they fail in critical applications.

Conclusion

The ZB2L3 HW586 Battery Capacity Tester Module is an essential tool for anyone working with rechargeable batteries. Its ability to measure battery capacity accurately, its compatibility with various battery types, and its real-time data display make it a valuable asset for testing and maintaining batteries in a wide range of applications. With its adjustable discharge current and over-discharge protection, the module provides a safe, flexible, and efficient way to assess battery health and performance. Whether you’re a professional, a researcher, or a hobbyist, the ZB2L3 HW586 is a reliable and user-friendly solution for all your battery testing needs.

Common Questions:
What is the price of ZB2L3 HW586 Battery Capacity Tester Module in Bangladesh?
The latest price of ZB2L3 HW586 Battery Capacity Tester Module in Bangladesh is 280 BDT.
Where to buy ZB2L3 HW586 Battery Capacity Tester Module in Bangladesh?
You can buy the ZB2L3 HW586 Battery Capacity Tester Module at the best price from ElectroXBD in Bangladesh.

User Guide: Click Here
