NodeMCU ESP8266 OLED Display WiFi Board

The NodeMCU ESP8266 OLED Display WiFi Board is a powerful and versatile development board that integrates the ESP8266 microcontroller with a built-in 0.96-inch OLED display, making it an ideal choice for a variety of IoT projects. This board combines the compact design of the NodeMCU platform with the visual capabilities of an OLED screen, providing users with a rich and interactive development environment.

Microcontroller and Processing Power

At the heart of this board is the ESP8266 microcontroller, a widely popular and powerful chip that offers excellent performance in a small form factor. The ESP8266 features a Tensilica L106 32-bit processor that operates at a clock speed of 80 MHz, providing ample processing power for a wide range of tasks. The microcontroller is known for its efficiency and low power consumption, making it suitable for battery-powered applications. With 4MB of Flash memory, the board offers sufficient space for storing code and data, allowing for the development of complex applications.

Integrated OLED Display

One of the standout features of this board is its integrated 0.96-inch OLED display. The display has a resolution of 128×64 pixels, which is sufficient for displaying text, graphics, and simple animations. The OLED technology ensures that the display is bright and clear, with excellent contrast and viewing angles. This makes it ideal for projects where visual feedback is essential, such as displaying sensor readings, notifications, or system statuses. The display is driven by the SSD1306 driver, which is well-supported by various libraries, making it easy to use with popular development platforms like Arduino and MicroPython.

WiFi Connectivity

The NodeMCU ESP8266 OLED Display WiFi Board is equipped with built-in WiFi, supporting 802.11 b/g/n standards. The ESP8266’s WiFi capabilities are one of its most significant strengths, enabling the board to connect to the internet or local networks wirelessly. The board supports multiple operating modes, including Station (STA), Access Point (AP), and both STA+AP, providing flexibility in how it can be integrated into a network. This makes it ideal for IoT applications where remote monitoring, control, and data logging are required. The WiFi module is also capable of handling security protocols like WPA/WPA2, ensuring that your communications are secure.

Versatility and Ease of Use

The NodeMCU ESP8266 OLED Display WiFi Board is designed with ease of use in mind. It features a micro-USB port for power and programming, making it compatible with a wide range of power sources and USB cables. The board can be programmed using the Arduino IDE, which is widely supported and has a large community, or MicroPython, which offers a more Pythonic approach to programming microcontrollers. This flexibility in programming environments makes the board accessible to both beginners and experienced developers.

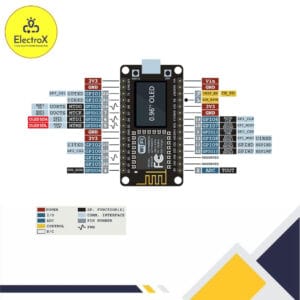

The board’s pinout is designed to be compatible with the NodeMCU form factor, which means it can easily be integrated with existing NodeMCU shields and modules. It has a wide range of GPIO pins that can be used for various purposes, such as controlling LEDs, reading sensors, or communicating with other devices via I2C, SPI, or UART protocols.

Applications and Use Cases

The NodeMCU ESP8266 OLED Display WiFi Board is highly versatile and can be used in a variety of applications. Its built-in WiFi and display make it an excellent choice for IoT projects, home automation systems, and smart devices. For example, it can be used to create a weather station that displays real-time data on the OLED screen while uploading the data to the cloud for remote monitoring. It can also be used to develop smart home devices like a WiFi-controlled thermostat or a security system that displays alerts on the screen and sends notifications to your smartphone.

In addition, the board’s compact size and low power consumption make it ideal for portable or wearable projects. Whether you’re building a fitness tracker, a portable game console, or a remote-controlled vehicle, the NodeMCU ESP8266 OLED Display WiFi Board provides the necessary features and capabilities to bring your ideas to life.

Conclusion

The NodeMCU ESP8266 OLED Display WiFi Board is a powerful, flexible, and user-friendly development board that integrates the popular ESP8266 microcontroller with a bright OLED display. Its combination of processing power, WiFi connectivity, and visual output capabilities makes it an excellent choice for a wide range of IoT and smart device projects. Whether you’re a hobbyist looking to create a simple sensor monitor or a professional developer working on a complex IoT system, this board provides the tools and features needed to get the job done.
