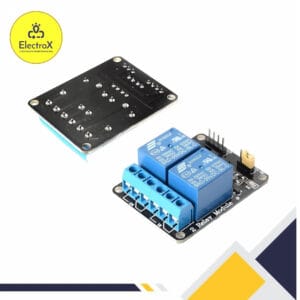

2 Chanel Relay Module 5V

2 Channel Relay Module 5V – Detailed Description

The 2 Channel Relay Module 5V is a versatile and essential component widely used in electronic projects, automation systems, and home appliances. It allows low-power microcontrollers, such as Arduino and Raspberry Pi, to control high-voltage devices like lights, fans, and motors. This module provides an easy and safe way to integrate electronic control into systems that require higher power, making it a fundamental building block for many DIY enthusiasts and professionals alike.

Key Features

1. Dual Relay Channels The 2 Channel Relay Module is equipped with two independent relays, each capable of handling up to 10A at 250V AC or 30V DC. This dual-channel design allows you to control two separate high-power devices simultaneously from a single module, making it highly efficient for projects that require multiple outputs. Each relay is equipped with Normally Open (NO) and Normally Closed (NC) contacts, providing flexibility in controlling devices according to different project requirements.

2. Optocoupler Isolation One of the standout features of this module is the optocoupler isolation. Optocouplers are used to separate the low-voltage control side from the high-voltage relay side, ensuring that the microcontroller is protected from potential voltage spikes or noise generated by the relay operation. This isolation enhances the safety and reliability of the system, especially when dealing with sensitive microcontroller inputs.

3. Wide Range of Applications The 2 Channel Relay Module is versatile and can be used in a variety of applications. It is commonly used in home automation systems, such as controlling lights, fans, and other appliances. In industrial settings, it can control motors, solenoids, and other machinery. The module is also suitable for security systems, where it can be used to activate alarms, sirens, or door locks. Its ability to handle both AC and DC loads makes it a go-to choice for many electronic control systems.

4. Easy Interface with Microcontrollers This module is designed for easy integration with popular microcontrollers like Arduino, Raspberry Pi, PIC, and AVR. It requires a 5V power supply and can be directly triggered by a digital output pin from the microcontroller. The triggering current for each relay is between 15-20mA, which is within the capability of most microcontroller GPIO pins. The module also features indicator LEDs that light up when the relay is activated, providing a visual confirmation of its operation.

5. Compact and Durable Design The 2 Channel Relay Module is compact, making it easy to fit into various electronic enclosures or projects where space is limited. Despite its small size, the module is built to last, with high-quality relays that ensure reliable performance over extended periods. The PCB is well-designed, with clear labeling of input and output terminals, making the wiring process straightforward even for beginners.

Technical Specifications

• Operating Voltage: 5V DC
• Relay Output: Supports up to 10A at 250V AC or 10A at 30V DC
• Triggering Current: 15-20mA per channel
• Optocoupler Isolation: Yes, for enhanced safety
• Input Interface: Compatible with 3.3V and 5V logic levels
• Indicator LEDs: One for each relay, indicating the operational status
• Dimensions: Compact form factor suitable for various applications

Applications

1. Home Automation: Control household appliances like lights, fans, and air conditioners remotely using microcontrollers or smart home systems.
2. Industrial Automation: Automate machinery, conveyor belts, and motors in industrial settings, ensuring efficient operation and control.
3. Security Systems: Integrate with alarm systems, door locks, and CCTV systems for enhanced security.
4. IoT Projects: Use in Internet of Things (IoT) projects to control devices over the internet using a Wi-Fi or Bluetooth-enabled microcontroller.
5. DIY Electronics: Perfect for hobbyists building custom control systems for RC projects, smart home devices, or other electronic gadgets.

Conclusion

The 2 Channel Relay Module 5V is a powerful yet user-friendly component that simplifies the process of controlling high-voltage devices with low-voltage microcontrollers. Its dual-relay design, optocoupler isolation, and compatibility with various microcontrollers make it an indispensable tool for anyone working on electronics projects. Whether you’re a beginner looking to automate your home or a professional developing complex industrial systems, this relay module offers the reliability and performance needed to bring your ideas to life.

Common Questions:
What is the price of 2 Chanel Relay Module 5V in Bangladesh?
The latest price of 2 Chanel Relay Module 5V in Bangladesh is 120BDT.
Where to buy 2 Chanel Relay Module 5V in Bangladesh?
You can buy the 2 Chanel Relay Module 5V at the best price from ElectroXBD in Bangladesh.
