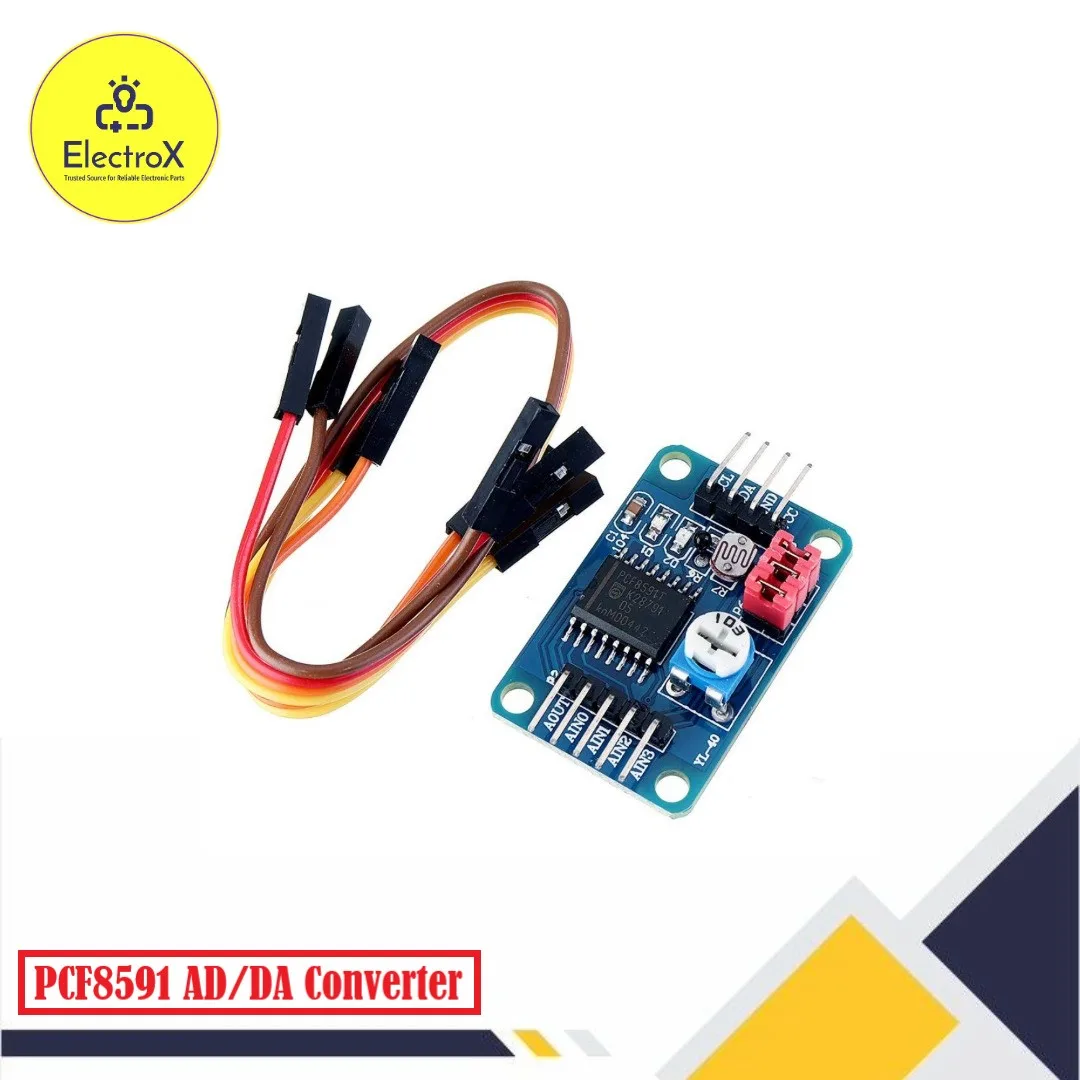

PCF8591 ADC DAC AD/DA Converter Module

The PCF8591 ADC DAC AD/DA Converter Module is a versatile and compact analog signal processing module designed to add analog input and output capability to digital systems. Many popular microcontrollers such as Arduino UNO, ESP8266, ESP32, and Raspberry Pi have limited or no built-in analog-to-digital or digital-to-analog converters. The PCF8591 module solves this limitation efficiently.

This module integrates the PCF8591 IC, which provides four analog input channels (ADC) and one analog output channel (DAC), all controlled through a simple I2C interface. Its ease of use, low cost, and reliable performance make it extremely popular in DIY electronics, IoT systems, robotics, automation, and educational projects.

Key Features of PCF8591 Converter Module

• 4-channel analog-to-digital converter

• 1-channel digital-to-analog converter

• I2C communication interface

• Compatible with 3.3V and 5V systems

• Compact PCB design

• Low power consumption

• Easy integration with microcontrollers

• Adjustable I2C address

• Stable and accurate signal conversion

• Ideal for learning and prototyping

Technical Specifications

Converter IC: PCF8591
Communication Protocol: I2C
ADC Resolution: 8-bit
Number of ADC Channels: 4
DAC Output Channels: 1
Operating Voltage: 3.3V–5V
Input Signal Range: 0V to VCC
I2C Address: Configurable
Sampling Type: Single-ended / differential
PCB Material: FR4

Working Principle of PCF8591 AD/DA Module

The PCF8591 module works by converting analog voltage signals into digital data that can be processed by a microcontroller. The analog input channels sample voltage levels and convert them into 8-bit digital values.

At the same time, the module includes a digital-to-analog converter that can generate an analog voltage output from digital data sent by the microcontroller. Communication between the controller and the module is handled via the I2C bus, requiring only two data lines.

Importance of ADC and DAC in Electronics

Analog-to-digital and digital-to-analog conversion is essential for:

• Reading sensor data

• Generating analog control signals

• Audio signal processing

• Signal monitoring systems

• Control and automation projects

The PCF8591 provides a simple and cost-effective way to add both ADC and DAC functionality.

Applications of PCF 8591 Module

This module is widely used in:

• Arduino sensor interfacing

• ESP32 and ESP8266 projects

• Raspberry Pi analog input expansion

• IoT data acquisition systems

• Robotics sensor processing

• Audio signal experiments

• Voltage monitoring circuits

• Automation control systems

• Educational electronics labs

• Embedded system development

Compatibility with Popular Boards

The PCF 8591 module works seamlessly with:

• Arduino UNO, Nano, Mega

• ESP8266 and ESP32

• Raspberry Pi

• STM32 development boards

• Any I2C-compatible controller

Its flexibility makes it suitable for a wide range of platforms.

Advantages of Using PCF 8591 Module

• Adds analog input capability

• Provides DAC output without extra hardware

• Simple I2C communication

• Low pin usage

• Compact and affordable

• Ideal for rapid prototyping

ADC Input Configuration

The four analog inputs can be configured as:

• Single-ended inputs

• Differential inputs

This allows flexible signal measurement depending on project requirements.

DAC Output Use Cases

The DAC output can be used for:

• Generating reference voltages

• Audio signal output

• Analog control signals

• Testing and calibration circuits

Although 8-bit resolution is modest, it is sufficient for many DIY and learning applications.

Power Efficiency and Stability

The PCF 8591 module consumes very low power, making it suitable for battery-powered and IoT devices. Its stable operation ensures consistent readings over long periods.

Installation and Usage Guidelines

• Connect SDA and SCL correctly

• Use proper pull-up resistors if needed

• Match logic voltage levels

• Avoid input voltage exceeding VCC

• Test channels individually

Following these guidelines ensures accurate and safe operation.

Educational and Learning Benefits

This module is ideal for teaching:

• ADC and DAC fundamentals

• I2C communication

• Sensor interfacing techniques

• Embedded system design

It is commonly used in STEM education and university electronics labs.

Limitations

The PCF 8591 offers 8-bit resolution, which may not be sufficient for high-precision measurements. For advanced applications, higher-resolution ADC modules may be required.

Why Choose PCF 8591 ADC DAC Module

• Combined ADC and DAC solution

• Easy to use and widely supported

• Compatible with many platforms

• Cost-effective and reliable

• Perfect for learning and prototyping

Why Buy from Electroxbd

• Original and tested modules

• Competitive pricing in Bangladesh

• Fast delivery nationwide

• Trusted electronics supplier

• Technical support available

• Trusted Source for Reliable Electronic Parts

Buy PCF8591 ADC DAC AD/DA Converter Module in Bangladesh

Order the PCF8591 ADC DAC AD/DA Converter Module today from Electroxbd and expand your Arduino, ESP32, and Raspberry Pi projects with reliable analog input and output capability.
