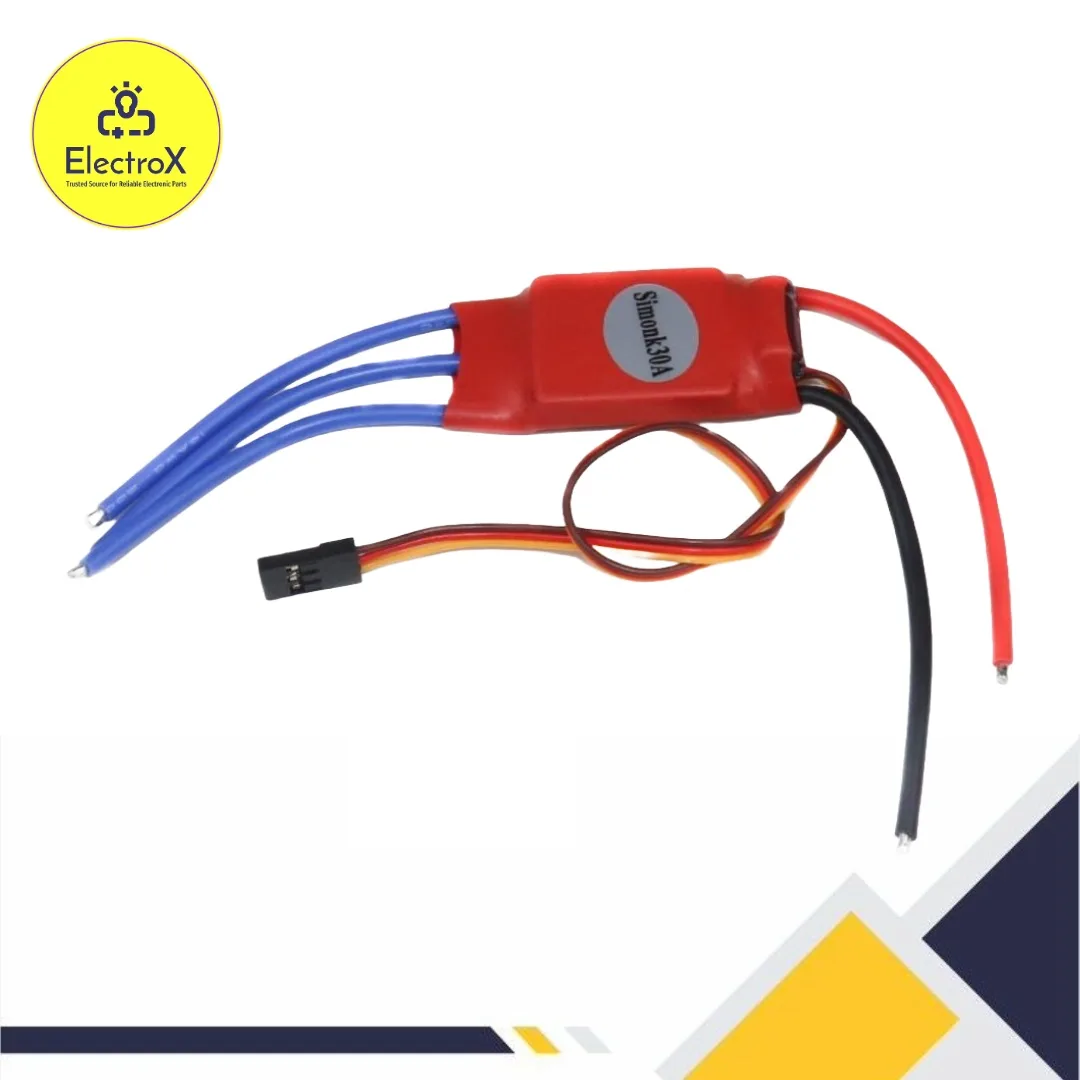

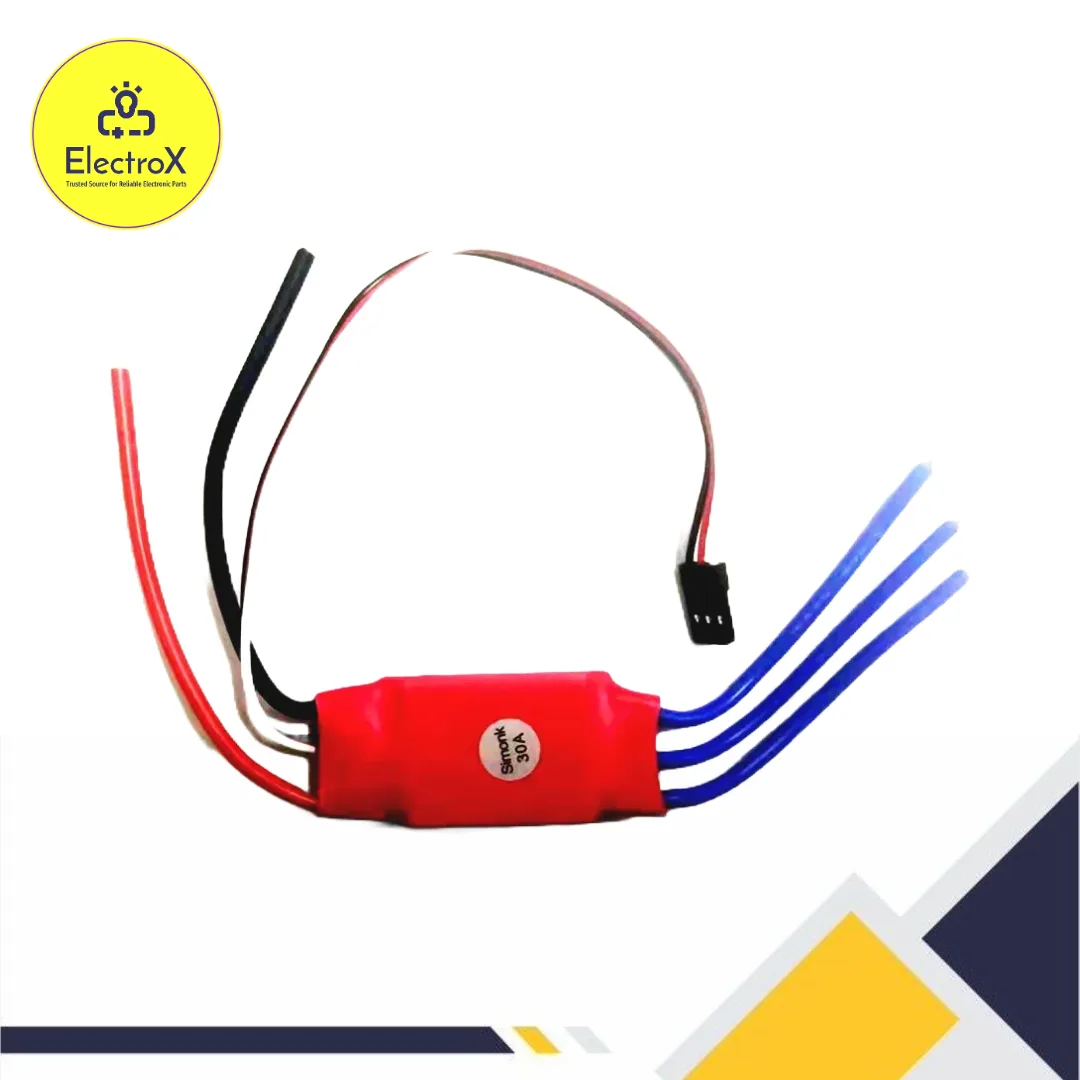

SimonK 30A ESC Red for BLDC Motor with XT60

 SIMONK 30A ESC RED FOR BLDC MOTOR WITH XT60 – HIGH-PERFORMANCE, FAST RESPONSE ESC FOR DRONES & ROBOTICS

The SimonK 30A ESC Red for BLDC Motor is an efficient and reliable electronic speed controller, perfect for high-speed drone, aircraft, and robotic applications. Preloaded with the SimonK firmware, this ESC delivers ultra-fast throttle response, precise motor control, and consistent performance, making it a top choice for hobbyists and professionals alike.

With XT60 input and 3.5mm bullet connectors, it offers plug-and-play compatibility with most brushless DC motors and LiPo battery configurations. Whether you’re designing a quadcopter, RC aircraft, or custom robot, this ESC is designed to power your build with speed and stability.

🔧 Key Features at a Glance

✅ Fast Response with SimonK Firmware

The SimonK firmware is known for its rapid motor response and high refresh rates. It minimizes delay, ensures consistent throttle input, and improves overall flight or driving control, especially in FPV drones and agile robotics.

✅ 30A Continuous, 40A Burst Current

This ESC supports 30 amps continuously and up to 40 amps in bursts, providing excellent current handling for high-power brushless motors under demanding conditions like takeoffs, climbs, and fast turns.

✅ Wide Battery Compatibility

Supporting 2S to 4S LiPo batteries (7.4V–14.8V), this ESC offers flexibility across multiple RC and robotic applications, from light racing drones to larger multirotor frames.

✅ Built-in 5V/2A BEC Output

With a 5V/2A BEC (Battery Eliminator Circuit), the ESC can power external components like receivers or flight controllers without needing a separate power source—simplifying your wiring and reducing overall weight.

✅ Plug & Play Design with XT60

Comes with XT60 input connector and 3.5mm bullet plugs for quick and secure connections to power systems and motors. No soldering or extra connectors are required for most common setups.

📐 Technical Specifications

• Firmware: SimonK (pre-installed)

• Continuous Current: 30A

• Burst Current: 40A (up to 10 seconds)

• Input Voltage: 2S–4S LiPo (7.4V–14.8V)

• BEC Output: 5V @ 2A

• Input Connector: XT60

• Motor Output: 3.5mm bullet connectors

• Color: Red

• Weight: Approx. 25g (with wires)

• Dimensions: Compact and lightweight

⚙️ Ideal Applications

The SimonK 30A ESC Red is perfect for a wide range of hobby electronics and motor control systems, including:

• Racing Drones – Instant throttle response for aggressive flying

• Camera Drones – Smooth, steady motor operation for clean footage

• RC Planes & Helis – Reliable current flow during flight maneuvers

• Mobile Robots – Precise control over BLDC movement and speed

• RC Boats & Cars – Clean, efficient power delivery with minimal lag

🧠 Why Use SimonK Firmware?

SimonK firmware is a favorite in the drone community for good reason. Unlike default ESC firmware, SimonK allows:

• Super-fast throttle input

• Minimal delay in signal processing

• Improved control accuracy

• Better performance in dynamic conditions

• Excellent compatibility with flight controllers like KK2, APM, and Pixhawk

This makes your drone or robot more responsive and stable—critical for both beginners and experts.

🛠️ Easy Installation

Pre-soldered XT60 and bullet connectors make this ESC incredibly easy to set up. Just connect your:

1. Battery via XT60

2. Motor via bullet connectors

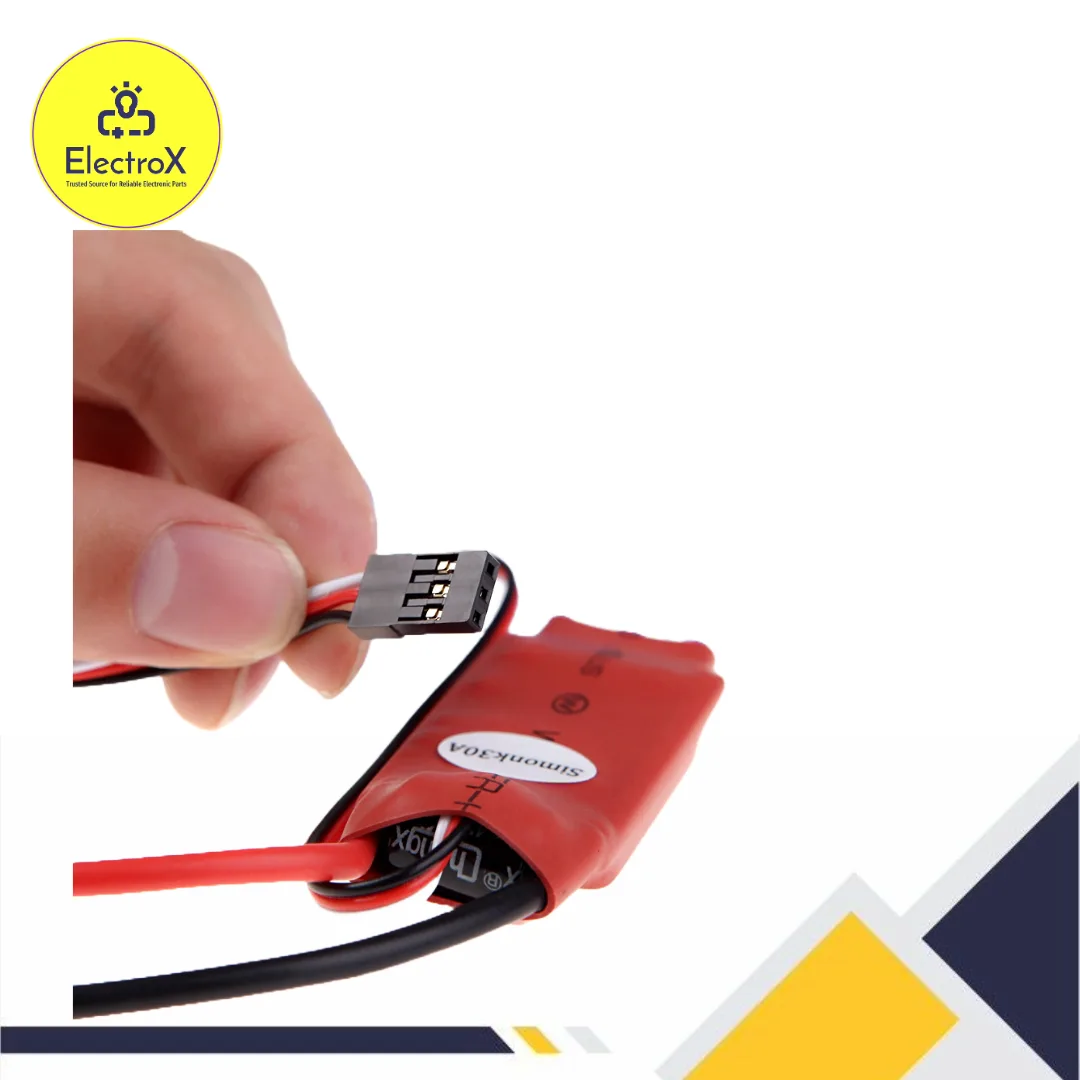

3. Signal wire to receiver or flight controller

No extra tools or adapters are needed for most setups. You can get flying or rolling in minutes.

💡 Tips for Safe & Efficient Use

• Always calibrate your ESC with your transmitter before use

• Use only compatible BLDC motors (like A2212 1000KV or 1400KV)

• Avoid exceeding voltage/current ratings

• Provide proper cooling to prevent overheating

• Check connections before power-on

📦 What You Get

• ✅ 1 x SimonK 30A ESC Red

• ✅ XT60 battery connector (pre-soldered)

• ✅ 3.5mm bullet plugs on motor outputs

• ✅ Heat shrink and wire protection sleeve
