XL6009 DC DC Voltage Booster Converter

The XL6009 module is a high-efficiency, DC-DC boost converter designed for applications requiring voltage step-up from a lower to a higher level. It’s widely used in various electronic projects due to its flexibility, high performance, and ease of use. The XL6009 module is especially popular in scenarios where stable and efficient power conversion is critical, such as in battery-powered devices, LED drivers, and portable electronics.

1. XL6009 Overview

At the heart of the XL6009 module is the XL6009 chip, an integrated switching regulator with a built-in 4A, 400 kHz switching frequency. This allows the module to efficiently convert a wide range of input voltages (from 3V to 32V) into a stable, adjustable output voltage (ranging from 5V to 35V). The module’s high efficiency (up to 94%) ensures minimal power loss, making it ideal for applications where energy efficiency is a priority.

2. Key Features

The XL6009 module is known for its robust and versatile features, which make it a popular choice for various power management tasks:

• Wide Input Voltage Range: The module accepts input voltages between 3V and 32V, making it compatible with various power sources, including batteries, USB power, and other low-voltage power supplies.
• Adjustable Output Voltage: The output voltage can be adjusted between 5V and 35V using a small potentiometer on the board. This flexibility allows the module to be used in a variety of applications requiring different voltage levels.
• High Efficiency: With efficiency rates up to 94%, the XL6009 module minimizes heat generation and power loss, making it suitable for energy-sensitive applications.
• High Switching Frequency: Operating at a switching frequency of 400 kHz, the module can deliver a stable output with minimal ripple, which is crucial for sensitive electronics.
• Integrated Protection: The module includes several protection features, such as over-current protection, thermal shutdown, and short-circuit protection, ensuring safe and reliable operation even in demanding conditions.

3. Applications

The XL6009 module is versatile and finds use in a wide range of applications:

• Battery-Powered Devices: The module is commonly used in battery-operated devices where it’s essential to step up the voltage to power components that require higher voltages than the battery can provide.
• LED Drivers: The adjustable output voltage and high current capability make the XL6009 an excellent choice for driving LED strips and high-power LEDs, providing consistent brightness and efficiency.
• Portable Electronics: Its small size and high efficiency make it ideal for portable electronic devices that need to convert lower battery voltages to the higher levels required by various components.
• Power Supply for Microcontrollers: The XL6009 module can be used to generate a stable power supply for microcontrollers and other digital circuits, ensuring reliable operation across a range of input voltages.
• Solar Power Systems: The module’s ability to handle a wide input voltage range makes it suitable for use in solar power systems, where it can boost the varying output from solar panels to a usable voltage level.

4. Technical Specifications

The XL6009 module’s technical specifications are tailored to meet the needs of a variety of power conversion tasks:

• Input Voltage Range: 3V to 32V
• Output Voltage Range: 5V to 35V (adjustable)
• Maximum Output Current: 4A (dependent on input voltage and cooling)
• Efficiency: Up to 94%
• Switching Frequency: 400 kHz
• Operating Temperature: -40°C to +85°C
• Size: Compact and lightweight, making it easy to integrate into various projects

5. Usage and Adjustments

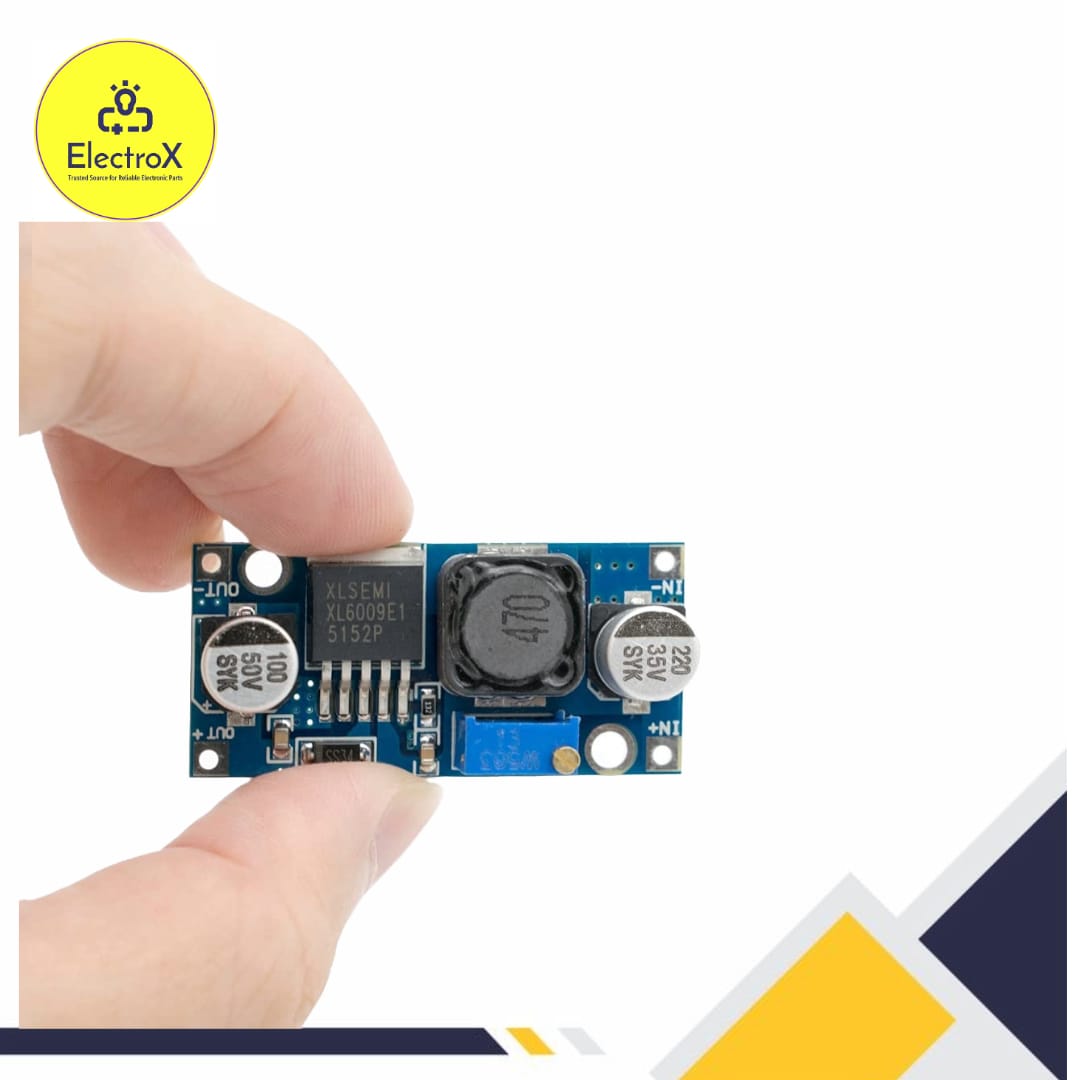

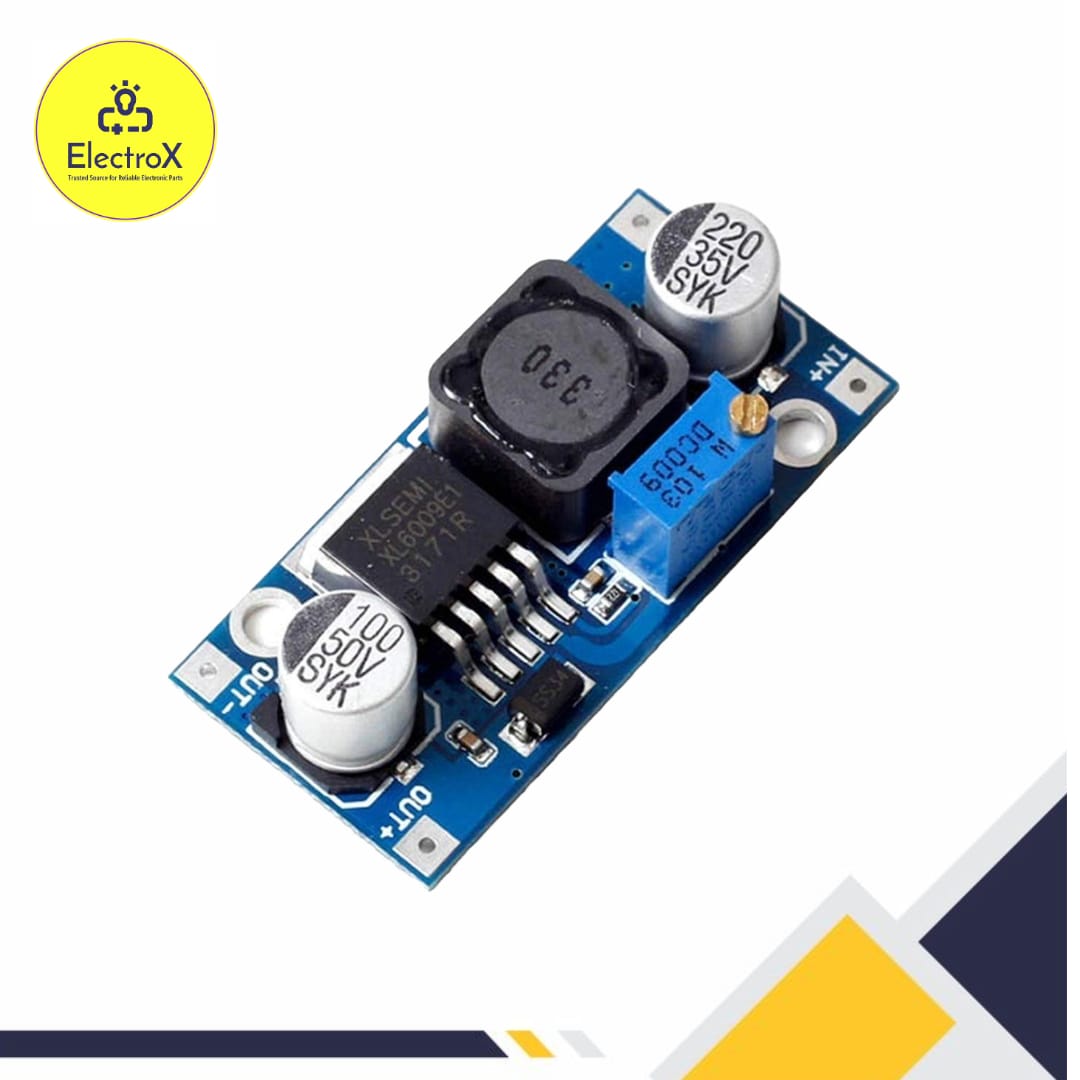

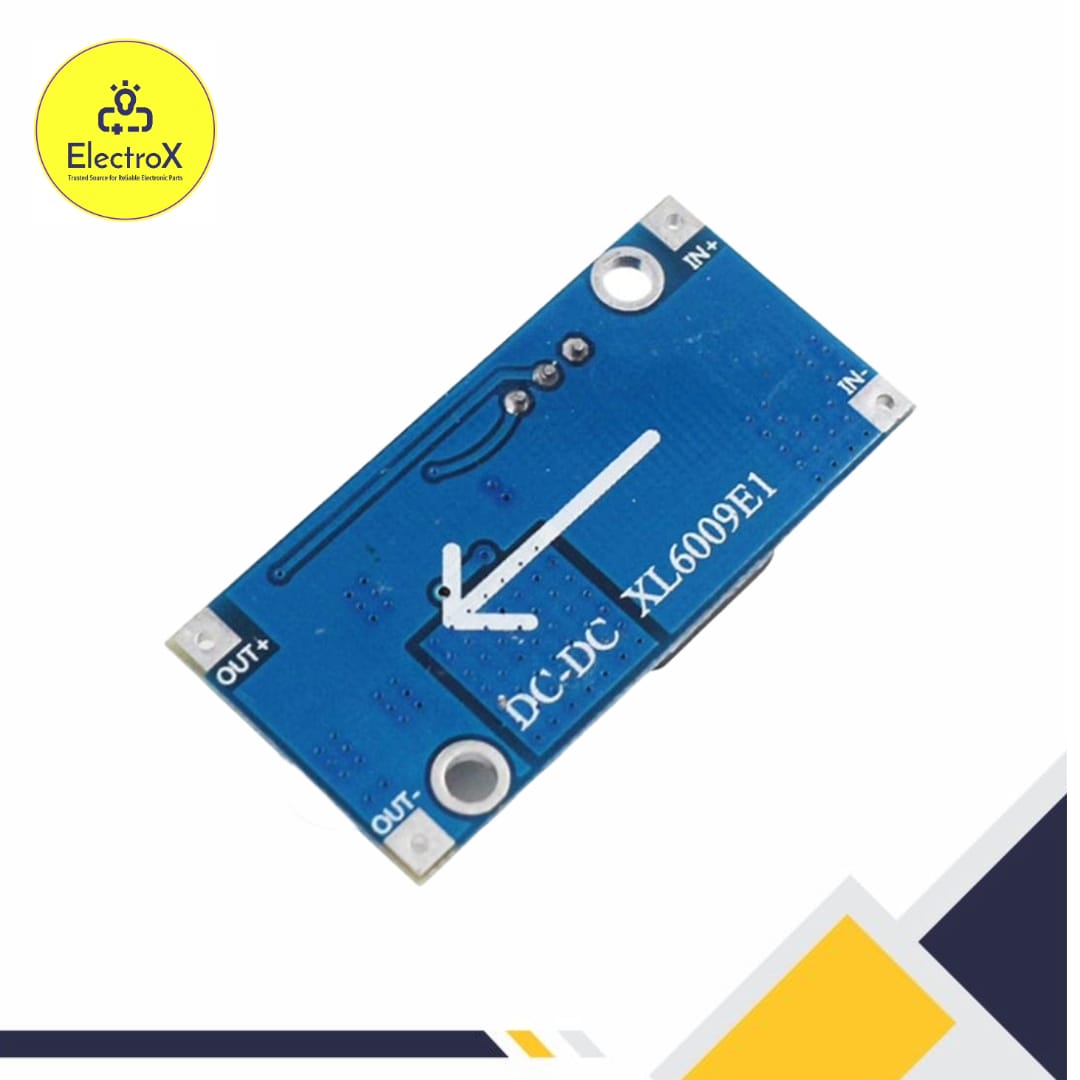

Using the XL6009 module is straightforward. It has two screw terminals for the input and output voltages, and a potentiometer that can be adjusted to set the desired output voltage. The module can be easily connected to a variety of power sources and loads, making it an excellent tool for both beginners and experienced engineers.

To adjust the output voltage, users simply rotate the potentiometer while monitoring the output with a multimeter until the desired voltage is reached. This ease of use makes the XL6009 module a flexible and reliable choice for power conversion tasks in a wide range of electronic projects.

Conclusion

The XL6009 module is a powerful, efficient, and versatile DC-DC boost converter that excels in a variety of applications. Whether you need to power LEDs, charge batteries, or supply stable voltage to a microcontroller, the XL6009 module offers the flexibility and performance needed to get the job done efficiently. Its compact design, high efficiency, and robust feature set make it a go-to solution for any project requiring reliable voltage step-up.

Common Questions:
What is the price of XL6009 DC DC Voltage Booster Converter in Bangladesh?
The latest price of XL6009 DC DC Voltage Booster Converter in Bangladesh is 85BDT.
Where to buy XL6009 DC DC Voltage Booster Converter in Bangladesh?
You can buy the XL6009 DC DC Voltage Booster Converter at the best price from ElectroXBD in Bangladesh.

Video Tutorial: Click Here
