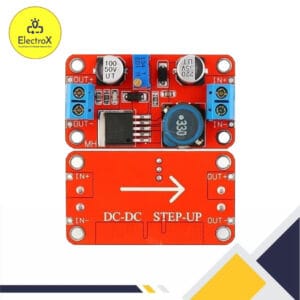

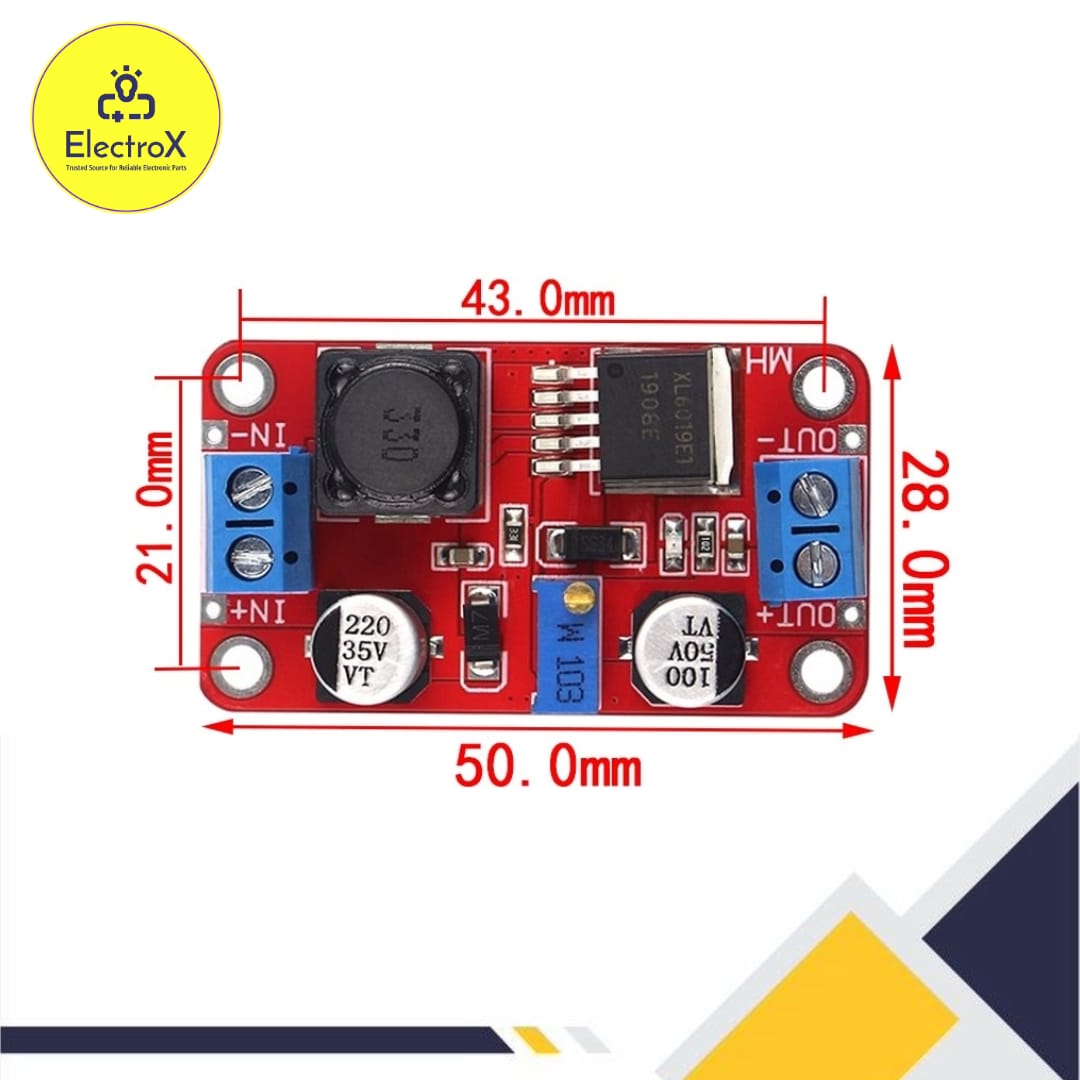

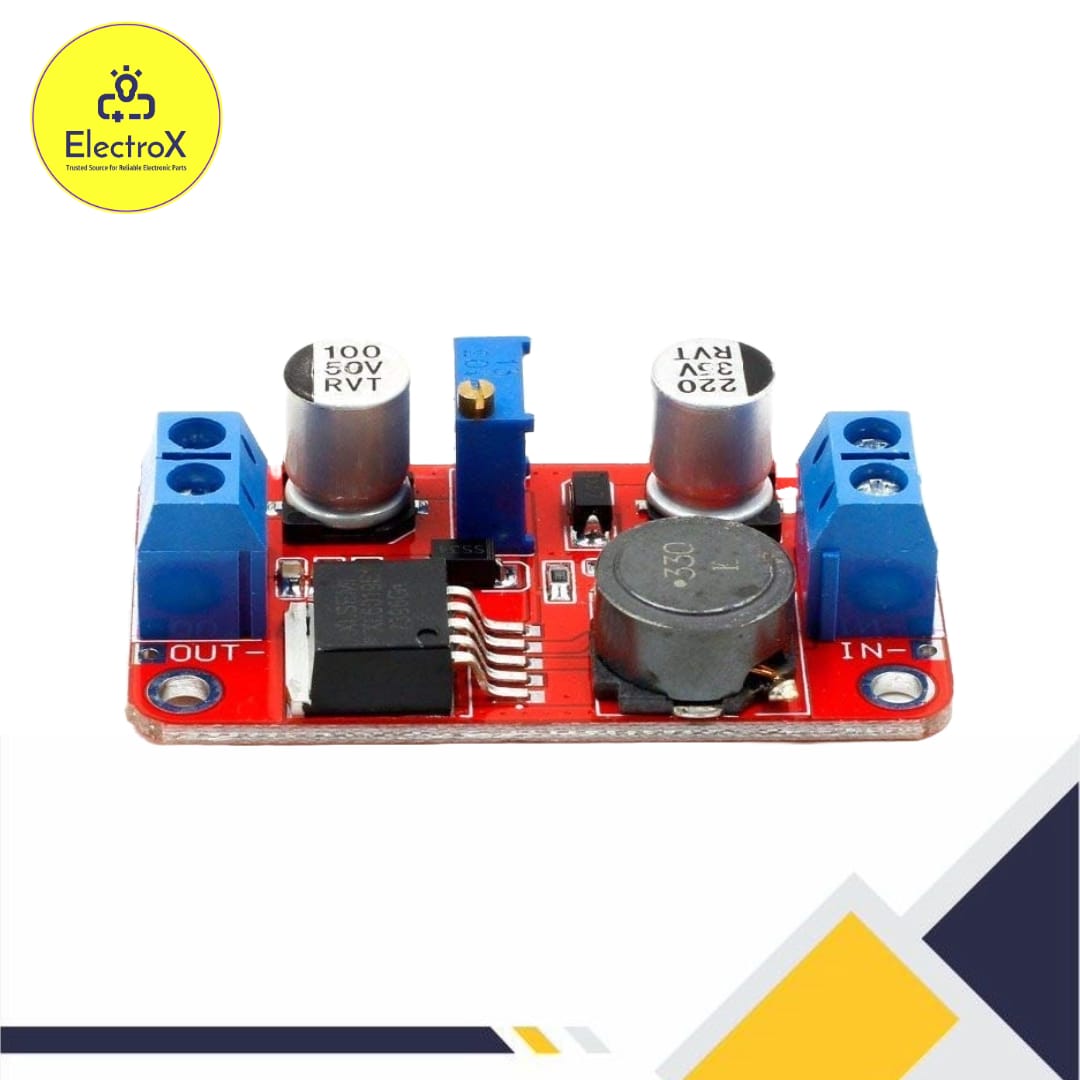

XL6019 DC DC Voltage Booster Module

The XL6019 DC-DC Voltage Booster Module is a versatile and efficient power converter designed to step up low input voltages to higher output voltages, making it ideal for a wide range of electronic applications. This module is widely used in situations where the power supply provides a lower voltage than required by the load, making it particularly useful in battery-powered systems, renewable energy setups, and various other projects where voltage needs to be boosted.

Key Features of the XL6019 DC-DC Voltage Booster Module

1. Wide Input Voltage Range:
   The XL6019 module accepts a wide input voltage range, from 3V to 32V DC. This flexibility allows it to be used with a variety of power sources, including batteries, solar panels, and low-voltage DC power supplies. Whether you are working with a 3.7V lithium-ion battery or a 12V power supply, the XL6019 can efficiently boost the voltage to meet your requirements.
2. Adjustable Output Voltage:
   One of the standout features of the XL6019 module is its adjustable output voltage, which can be set between 5V and 40V DC. This wide range makes it suitable for powering a variety of electronic devices, from low-voltage microcontrollers and sensors to higher voltage devices such as motors, LED strips, and other power-hungry components. The adjustment is made through a potentiometer on the module, providing precise control over the output voltage to match the needs of the connected device.
3. High Output Current Capacity:
   The XL6019 is capable of delivering up to 5A of output current, making it suitable for high-current applications. This allows the module to power devices with significant power demands, such as motors, high-power LEDs, and even small appliances. The ability to handle up to 5A of current also makes it a good choice for battery charging circuits, where fast charging rates are necessary for efficient operation.
4. High Efficiency:
   Efficiency is a critical consideration in power conversion modules, and the XL6019 excels in this regard with an efficiency rating of up to 94%. This high efficiency ensures that minimal energy is lost as heat during the voltage conversion process, which is particularly important in battery-powered applications. The high efficiency not only helps conserve power but also reduces the heat generated, ensuring that the module operates reliably over long periods without the need for additional cooling.
5. Switching Frequency:
   The module operates with a switching frequency of 180kHz, which contributes to its high efficiency and allows for the use of smaller external components, reducing the overall size of the module. The high switching frequency ensures smooth and stable voltage conversion with minimal ripple, making it suitable for sensitive electronic circuits that require clean and stable power.

Applications of the XL6019 DC-DC Voltage Booster Module

The versatility of the XL6019 module makes it suitable for a wide range of applications across various fields. Some of the most common uses of this booster module include:

1. Battery-Powered Devices:
   One of the primary uses of the XL6019 is in battery-powered devices, where it is essential to boost the lower voltage of a battery to the higher voltage required by the load. For example, it can be used to step up the voltage from a 3.7V lithium-ion battery to power a 12V device, ensuring that the device operates efficiently even as the battery voltage drops over time.
2. Solar Power Systems:
   The XL6019 is also well-suited for use in solar power systems, where it can boost the lower voltage output of solar panels to a higher voltage suitable for charging batteries or powering devices. By stepping up the voltage, the module helps ensure that energy from the solar panels is effectively utilized, improving the overall performance and efficiency of the solar power system.
3. LED Drivers:
   The module can be used as an LED driver in applications where the power supply voltage is lower than the required voltage for the LED array or strip. By boosting the voltage to the appropriate level, the XL6019 ensures that the LEDs receive the correct power, allowing them to operate at full brightness and efficiency.
4. Portable Electronics:
   In portable electronics, the XL6019 can be used to provide a stable, boosted voltage to power various devices such as mobile chargers, portable speakers, and other gadgets. Its ability to convert lower voltages to higher ones makes it a reliable choice for keeping portable devices running smoothly, even as battery levels fluctuate.
5. DIY Electronics Projects:
   For hobbyists and makers, the XL6019 module is a valuable tool for DIY electronics projects. Whether powering custom-built circuits, robots, or small appliances, the module’s adjustable voltage output and high current capacity provide the flexibility needed for a wide variety of creative projects.

Performance and Reliability

The XL6019 DC-DC Voltage Booster Module is designed for long-term reliability and consistent performance. Its high efficiency reduces the amount of heat generated during operation, allowing it to perform reliably even under heavy loads. The module’s high output current capacity and wide input voltage range make it a versatile choice for a range of applications, ensuring stable and efficient power delivery across different environments.

The module is also built with safety in mind, featuring over-current protection and short-circuit protection to prevent damage to the module and connected devices in the event of a fault. These protection features enhance the durability of the module, ensuring that it can operate safely in demanding conditions.
