LCD 2004 Display Blue Backlight

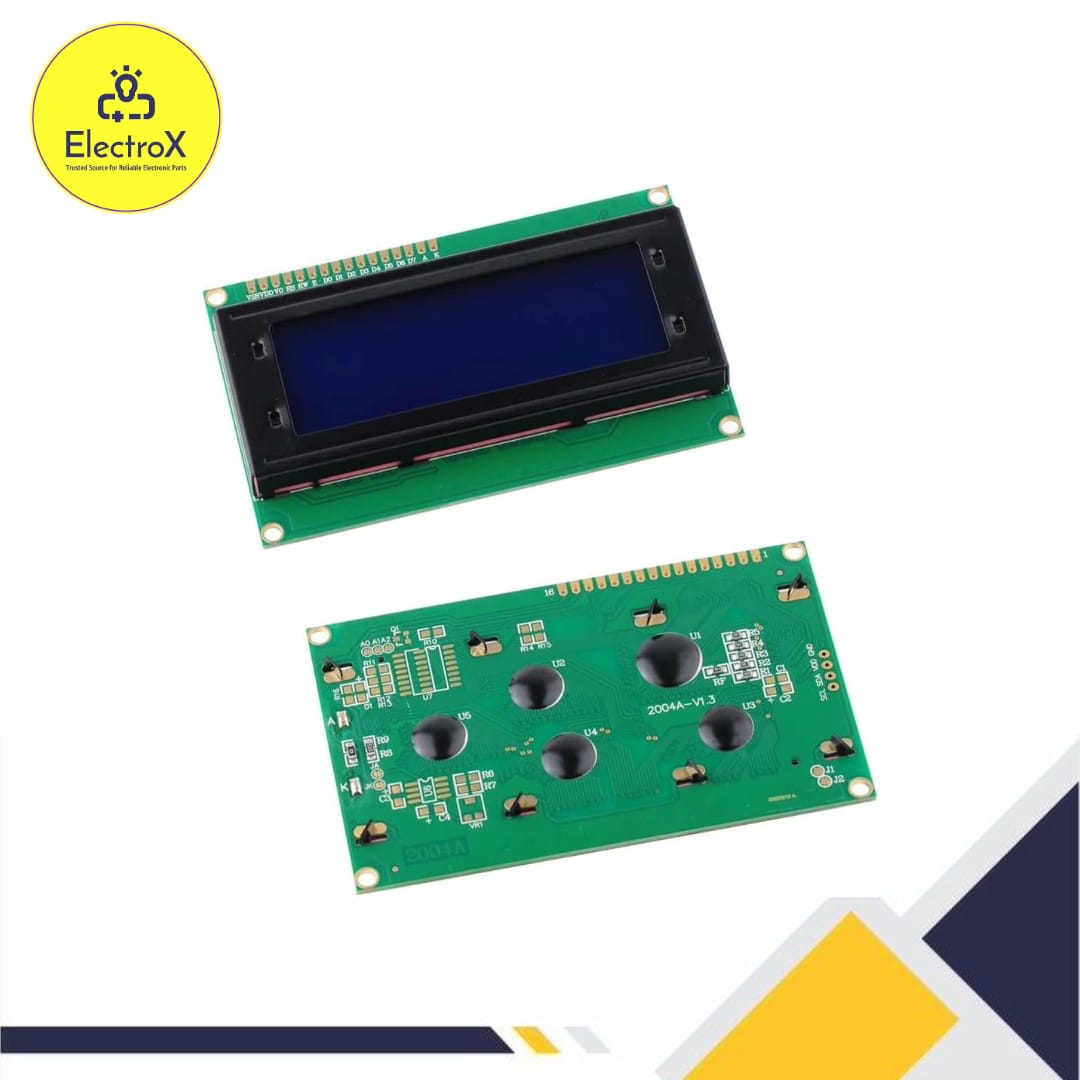

The LCD 2004 Display with Blue Backlight is a widely used and highly versatile alphanumeric display module that offers a simple and effective solution for displaying text and basic symbols in electronic projects. Its name, “2004,” refers to the display’s 20 columns and 4 rows, which means it can display up to 80 characters at once. This makes it ideal for applications where more information needs to be shown on-screen than what smaller displays, such as the 1602 LCD, can provide. With a bright blue backlight and white text, the display is easy to read even in low-light conditions, making it suitable for various environments.

Design and Features

The LCD 2004 Display is designed with a 20×4 alphanumeric layout, meaning that it can display 20 characters per line across four lines. This provides ample space for showing long messages, multiple variables, or data readouts in a clear and organized manner. Each character is displayed on a 5×8 dot matrix, ensuring that text and symbols are sharp and easy to read.

The display includes a built-in backlight, typically blue, which illuminates the white characters to enhance visibility. This backlight can be controlled through the software, allowing users to turn it on or off depending on the needs of the project. Additionally, contrast adjustment can be made using a potentiometer to optimize readability based on lighting conditions.

Interface and Compatibility

The LCD 2004 Display can be connected to a microcontroller using either a parallel interface or the I2C protocol. The parallel interface requires more pins—typically up to 16—but provides fast data transmission. However, for projects where pin availability is a concern, the I2C interface is a popular alternative. With the I2C connection, the display only needs two pins for data transmission, leaving more pins free for other sensors, actuators, or modules.

The display is highly compatible with popular microcontroller platforms, including Arduino, Raspberry Pi, and others. For Arduino users, libraries such as the LiquidCrystal or LiquidCrystal_I2C make it easy to control the display with minimal effort. These libraries allow for simple commands to print text to the screen, control the cursor, adjust the backlight, and create custom characters. With just a few lines of code, users can take full advantage of the display’s capabilities.

Applications

The versatility of the LCD 2004 Display makes it suitable for a wide range of applications in electronics and embedded systems. Its larger size compared to other displays enables it to be used in projects where more data needs to be shown simultaneously. Here are some common applications:

1. Home Automation Systems: In home automation projects, the LCD 2004 can display status messages, sensor readings, or control options. It can show temperature, humidity, or even the state of various appliances, providing the user with essential data at a glance.
2. DIY Electronic Projects: Hobbyists and DIY enthusiasts can use the display for various purposes, such as creating custom user interfaces for their projects. It’s perfect for displaying real-time sensor data, system statuses, or interactive menus in robotics, automation, or weather stations.
3. Measurement Devices: The display is often used in measurement and instrumentation devices, such as voltmeters, ammeters, or temperature monitors. The ability to show four lines of text makes it easy to display multiple readings or data points simultaneously.
4. Industrial Control Panels: In industrial settings, the LCD 2004 is useful for control panels and monitoring systems, where it can display critical information, such as machine status, system parameters, and error messages.
5. Clocks and Timers: The 20×4 layout makes it a good choice for clocks, timers, and countdown displays. The four lines of text allow for detailed time-related information, such as hours, minutes, seconds, and even additional data like date or event descriptions.

Performance and Power Consumption

The LCD 2004 Display operates at a standard voltage of 5V DC, which is compatible with most microcontroller platforms. The power consumption of the display is relatively low, typically drawing around 1-2 mA for the LCD itself and a bit more when the backlight is turned on. The efficient power usage makes it suitable for battery-operated projects or energy-conscious designs.

In terms of performance, the display provides excellent clarity and visibility, especially with the blue backlight. The characters are crisp and clear, even when viewed from different angles. The display also features a wide viewing angle, ensuring that the text remains readable from various perspectives. This is important in applications where the display needs to be read from different positions, such as control panels or kiosks.

The response time of the LCD 2004 is fast enough for most applications, and it can handle rapid updates of the displayed text without any noticeable lag. This makes it suitable for dynamic applications where the data being shown changes frequently.

Durability and Build Quality

The LCD 2004 Display is built to last, with a durable PCB and quality components that ensure reliable performance over time. The display’s longevity is enhanced by the low power consumption and efficient operation of the backlight. It’s designed for continuous use in various environments, including industrial and outdoor applications where durability is key.

The physical size of the module is compact, despite its ability to display a significant amount of information. This makes it easy to integrate into larger systems without taking up too much space. The standard mounting holes on the PCB allow for secure attachment to enclosures or panels, ensuring that the display remains stable during operation.

Tutorial: Click Here
